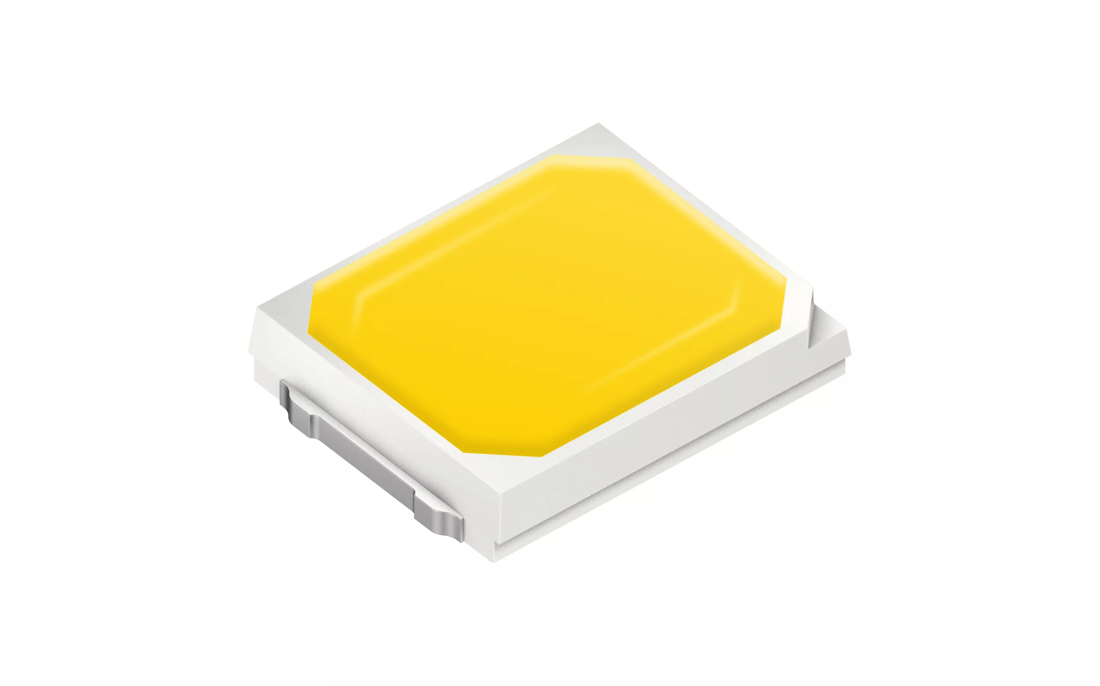

OSRAM DURIS™ E 2835, GW JTLPS1.SM

×

Description

The pre-molded 2835 LED version with standard 2835 footprint provides competitive value in application and system level. The DURIS E2835 CRI80 provides excellent efficacy which enhances energy savings in lighting application which is important to support energy efficiency regulation.
Datasheet
GW JTLPS1.SM_G
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
CRI
80
Electrical power
0.18 W
Mid
Brightness
ΦV
39 lm
IV
12.9 cd
ΦE
118 mW
IE
39 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
105 °C
Dimension
l
3.5 mm
w
2.8 mm
h
0.7 mm

Application fields

Lighting Indoor lighting

Ordering information

Product Type Description Ordering code Availability
GW JTLPS1.SM-H5H8-XX38-1-G ΦV = 34.5 ... 40.5 lm, Mountingmethode:SDCM 3, 2700 K (IF = 65 mA) Q65113A8177 Full production
GW JTLPS1.SM-H5H8-XX58-1-G ΦV = 34.5 ... 40.5 lm, Mountingmethode:SDCM 5, 2700 K (IF = 65 mA) Q65113A7752 Full production
GW JTLPS1.SM-H6H9-XX36-1-G ΦV = 36.0 ... 42.0 lm, Mountingmethode:SDCM 3, 3500 K (IF = 65 mA) Q65113A8176 Full production
GW JTLPS1.SM-H6H9-XX37-1-G ΦV = 36.0 ... 42.0 lm, Mountingmethode:SDCM 3, 3000 K (IF = 65 mA) Q65113A8175 Full production
GW JTLPS1.SM-H6H9-XX56-1-G ΦV = 36.0 ... 42.0 lm, Mountingmethode:SDCM 5, 3500 K (IF = 65 mA) Q65113A7748 Full production
GW JTLPS1.SM-H6H9-XX57-1-G ΦV = 36.0 ... 42.0 lm, Mountingmethode:SDCM 5, 3000 K (IF = 65 mA) Q65113A7755 Full production
GW JTLPS1.SM-H7HV-XX31-1-G ΦV = 37.5 ... 43.5 lm, Mountingmethode:SDCM 3, 6500 K (IF = 65 mA) Q65113A8179 Full production
GW JTLPS1.SM-H7HV-XX32-1-G ΦV = 37.5 ... 43.5 lm, Mountingmethode:SDCM 3, 5700 K (IF = 65 mA) Q65113A8178 Full production
GW JTLPS1.SM-H7HV-XX33-1-G ΦV = 37.5 ... 43.5 lm, Mountingmethode:SDCM 3, 5000 K (IF = 65 mA) Q65113A8173 Full production
GW JTLPS1.SM-H7HV-XX35-1-G ΦV = 37.5 ... 43.5 lm, Mountingmethode:SDCM 3, 4000 K (IF = 65 mA) Q65113A8174 Full production
GW JTLPS1.SM-H7HV-XX51-1-G ΦV = 37.5 ... 43.5 lm, Mountingmethode:SDCM 5, 6500 K (IF = 65 mA) Q65113A7746 Full production
GW JTLPS1.SM-H7HV-XX52-1-G ΦV = 37.5 ... 43.5 lm, Mountingmethode:SDCM 5, 5700 K (IF = 65 mA) Q65113A7745 Full production
GW JTLPS1.SM-H7HV-XX53-1-G ΦV = 37.5 ... 43.5 lm, Mountingmethode:SDCM 5, 5000 K (IF = 65 mA) Q65113A7753 Full production
GW JTLPS1.SM-H7HV-XX55-1-G ΦV = 37.5 ... 43.5 lm, Mountingmethode:SDCM 5, 4000 K (IF = 65 mA) Q65113A7751 Full production
