OSRAM DURIS™ E 2835, GW JTU9S2.SM

×

Description

Experience next-level lighting performance with the DURIS™ E 2835 U9 Series. Engineered with a standard 2835 footprint, this pre-molded LED delivers outstanding values— combining advanced phosphor technology for superior efficiency, consistent and homogeneous illumination. Its capability of low current dimming and precise 3-step color control ensure uniformity – an important premium feature for professional indoor applications. DURIS™ E 2835 U9 series is a lighting solution that brings performance, reliability, and affordability for a superior system-level results.
Datasheet
GW JTU9S2.SM
English
Download
Select & order
Contact us Support

Details

Features

  • Low current dimming, 100% 3 steps

Benefits

  • Color consistency, good cost/performance preposition

Parameters

Color of emission
White
CRI
80
Electrical power
0.43 W
Mid
Brightness
ΦV
72.5 lm
IV
24 cd
ΦE
219 mW
IE
72.6 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
100 °C
Dimension
l
3.5 mm
w
2.8 mm
h
0.7 mm

Application fields

Lighting Indoor lighting

Ordering information

Product Type Description Ordering code Availability
GW JTU9S2.SM-JCJE-18S3-9C9D ΦV = 50.0 ... 65.0 lm, Mountingmethode:SDCM 3, 1800 K (IF = 50 mA) Q65115A3084 Pre-production
GW JTU9S2.SM-JFKY-22S3-9C9D ΦV = 65.0 ... 80.0 lm, Mountingmethode:SDCM 3, 2200 K (IF = 50 mA) Q65115A3066 Pre-production
GW JTU9S2.SM-JGKZ-27S3-9C9D ΦV = 70.0 ... 85.0 lm, Mountingmethode:SDCM 3, 2700 K (IF = 50 mA) Q65115A3065 Pre-production
GW JTU9S2.SM-KYKS-30S3-9C9D ΦV = 75.0 ... 90.0 lm, Mountingmethode:SDCM 3, 3000 K (IF = 50 mA) Q65115A3064 Pre-production
GW JTU9S2.SM-KYKS-35S3-9C9D ΦV = 75.0 ... 90.0 lm, Mountingmethode:SDCM 3, 3500 K (IF = 50 mA) Q65115A3063 Pre-production
GW JTU9S2.SM-KYKS-57S3-9C9D ΦV = 75.0 ... 90.0 lm, Mountingmethode:SDCM 3, 5700 K (IF = 50 mA) Q65115A3060 Pre-production
GW JTU9S2.SM-KYKS-65S3-9C9D ΦV = 75.0 ... 90.0 lm, Mountingmethode:SDCM 3, 6500 K (IF = 50 mA) Q65115A3088 Pre-production
GW JTU9S2.SM-KZK1-40S3-9C9D ΦV = 80.0 ... 95.0 lm, Mountingmethode:SDCM 3, 4000 K (IF = 50 mA) Q65115A3062 Pre-production
GW JTU9S2.SM-KZK1-50S3-9C9D ΦV = 80.0 ... 95.0 lm, Mountingmethode:SDCM 3, 5000 K (IF = 50 mA) Q65115A3061 Pre-production

Downloads

Datasheets
GW JTU9S2.SM · Datasheet · PDF · en_US

Application note
Brilliant Mix and Mix-to-Match — Professional white for general lighting applications · Product related · PDF · en_US
Light quality — White light parameters · Product related · PDF · en_US
Light quality — Color metrics · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Chemical compatibility of LEDs · General information · PDF · en_US
Measurement, calibration and measurement uncertainty of LEDs · General information · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Handling of silicon resin LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Details on lead-free reflow soldering of LEDs · Soldering and processing · PDF · en_US
Manual lead-free soldering of LEDs · Soldering and processing · PDF · en_US
Measuring of the temperature profile during the reflow solder process · Soldering and processing · PDF · en_US
Processing of SMD LEDs · Soldering and processing · PDF · en_US
Recommended pick-and-place tools of LEDs · Soldering and processing · PDF · en_US
PCB technologies for LED applications · Thermal management · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Determination of resistances for brightness compensation · Electrical design · PDF · en_US
Dimming InGaN LEDs · Electrical design · PDF · en_US
LED driving technology for long term flexibility · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US

Images

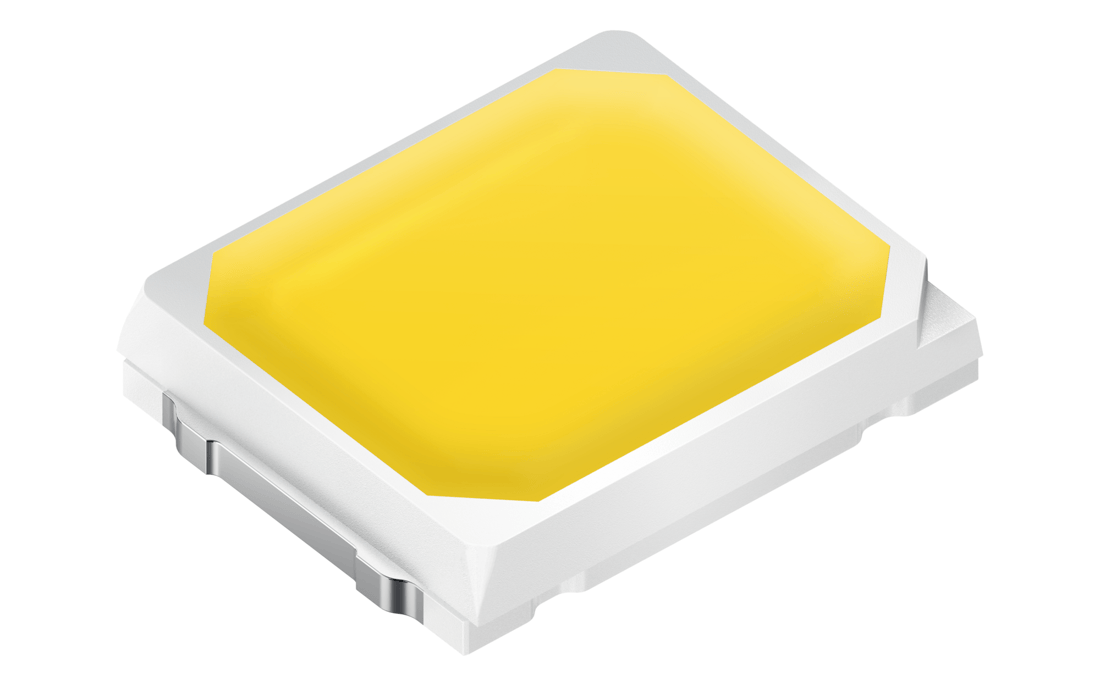

DURIS E 2835 U9 CRI 80 · Images · TIF
