OSRAM DURIS® E 3, GW JCLPS2.EM

OSRAM DURIS® E 3, GW JCLPS2.EM
×

Product features

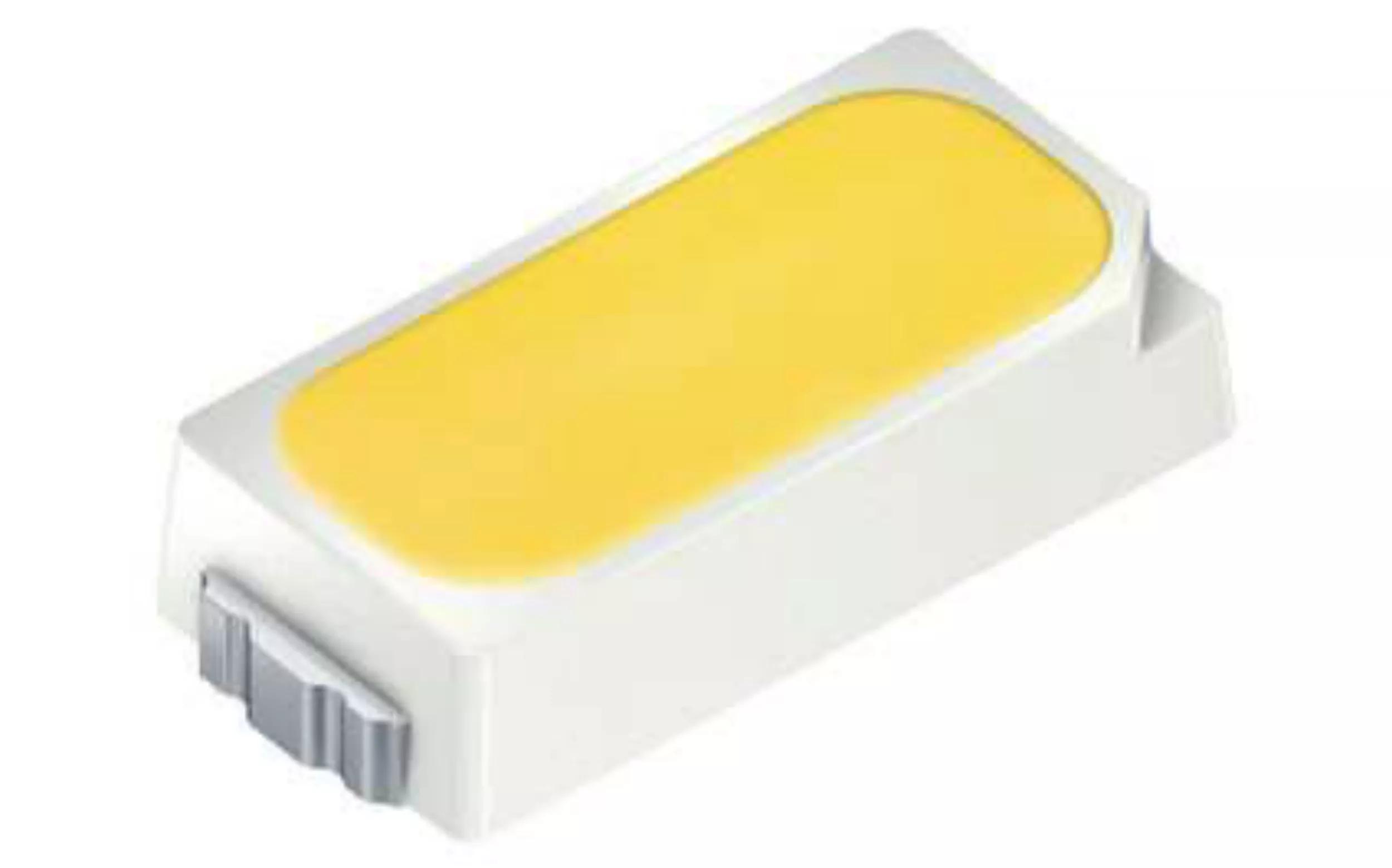

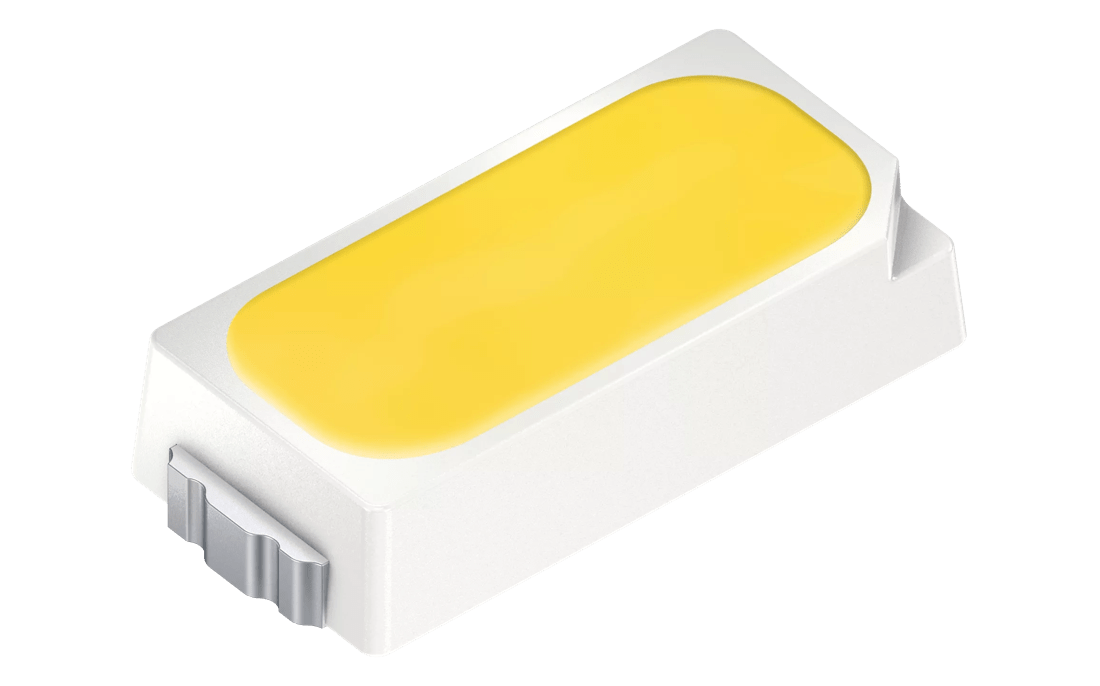

Introducing the new Generation-2 DURIS® E 3 which combines higher efficacy and higher flux in a compact industry-compatible form factor(3.0 mm x 1.4 mm).Perfectly suitable for various homogeneous illumination applications such as linear lighting as well as slim-designed applications.

Downloads

Datasheet

GW JCLPS2.EM (GEN 2)

Datasheet / 2.0 MB

Application note

Brilliant Mix and Mix-to-Match — Professional white for general lighting applications

Product Related / 1.7 MB

Light quality — Color metrics

Product Related / 1.6 MB

Light quality — White light parameters

Product Related / 2.0 MB

Chemical compatibility of LEDs

General Information / 2.0 MB

Customer complaint management — Details on return shipments for failure analysis request (FAR)

General Information / 1.7 MB

Details on photobiological safety of LED light sources

General Information / 1.4 MB

Dry pack information

General Information / 1.2 MB

Importing rayfiles and ray-measurement files of LEDs

General Information / 903.2 KB

LED 可靠性与使用寿命

General Information / 1.7 MB

Lebensdauer und Zuverlässigkeit von LEDs

General Information / 1.9 MB

Preventing LED failures caused by corrosive materials

General Information / 1.2 MB

Reliability and lifetime of LEDs

General Information / 1.9 MB

ESD protection while handling LEDs

Processing and Handling / 1.8 MB

Further details on lead free reflow soldering of LEDs

Processing and Handling / 1.4 MB

Handling of silicon resin LEDs

Processing and Handling / 496.2 KB

LED 无铅回流焊的详细介绍

Processing and Handling / 1.7 MB

Manual lead-free soldering of LEDs

Processing and Handling / 1.9 MB

Measuring of the temperature profile during the reflow solder process

Processing and Handling / 1.2 MB

PCB technologies for LED applications

Processing and Handling / 3.1 MB

Processing of SMD LEDs

Processing and Handling / 4.5 MB

Recommended pick-and-place tools for LEDs

Processing and Handling / 6.0 MB

Weitere Hinweise zum bleifrei Reflow-Löten von LEDs

Processing and Handling / 1.4 MB

Comparison of simple LED circuits for low power LEDs

Driving of LEDs / 1.2 MB

Determination of resistances for brightness compensation

Driving of LEDs / 873.5 KB

Dimming InGaN LEDs

Driving of LEDs / 992.7 KB

LED driving technology for long term flexibility

Driving of LEDs / 1.1 MB

The basic principles of Electrical Overstress (EOS)

Driving of LEDs / 1.6 MB

Measurement, calibration and measurement uncertainty of LEDs

Measurement / 2.5 MB

欧司朗光电半导体有限公司 LED 的测量、

Measurement / 2.4 MB

Optical simulation

Optical Simulation

Optical simulation

CAD files

CAD Data

CAD files

Electrical simulation

Electrical Simulation

Electrical simulation

Ordering codes

Product Type Description Order No. Availability
GW JCLPS2.EM-H1H8-XX58-1-2 ΦV = 28.5 ... 40.5 lm, 2700 K (IF = 65 mA) Q65112A8956
GW JCLPS2.EM-H2H8-XX57-1-2 ΦV = 30.0 ... 40.5 lm, 3000 K (IF = 65 mA) Q65112A8955
GW JCLPS2.EM-H3H8-XX56-1-2 ΦV = 31.5 ... 40.5 lm, 3500 K (IF = 65 mA) Q65112A8954
GW JCLPS2.EM-H3H8-XX55-1-2 ΦV = 31.5 ... 40.5 lm, 4000 K (IF = 65 mA) Q65112A8953
GW JCLPS2.EM-H3H8-XX53-1-2 ΦV = 31.5 ... 40.5 lm, 5000 K (IF = 65 mA) Q65112A8952
GW JCLPS2.EM-H3H8-XX52-1-2 ΦV = 31.5 ... 40.5 lm, 5700 K (IF = 65 mA) Q65112A8966
GW JCLPS2.EM-H3H8-XX51-1-2 ΦV = 31.5 ... 40.5 lm, 6500 K (IF = 65 mA) Q65112A8965
GW JCLPS2.EM-H1H8-A838-1-2 ΦV = 28.5 ... 40.5 lm, 2700 K (IF = 65 mA) Q65112A8480
GW JCLPS2.EM-H2H8-A737-1-2 ΦV = 30.0 ... 40.5 lm, 3000 K (IF = 65 mA) Q65112A8481
GW JCLPS2.EM-H3H8-A636-1-2 ΦV = 31.5 ... 40.5 lm, 3500 K (IF = 65 mA) Q65112A8482
GW JCLPS2.EM-H3H8-A535-1-2 ΦV = 31.5 ... 40.5 lm, 4000 K (IF = 65 mA) Q65112A8483
GW JCLPS2.EM-H3H8-A333-1-2 ΦV = 31.5 ... 40.5 lm, 5000 K (IF = 65 mA) Q65112A8484
GW JCLPS2.EM-H3H8-A232-1-2 ΦV = 31.5 ... 40.5 lm, 5700 K (IF = 65 mA) Q65112A8485
GW JCLPS2.EM-H3H8-A131-1-2 ΦV = 31.5 ... 40.5 lm, 6500 K (IF = 65 mA) Q65112A8486

Tools

LightGuide

Calculate the effectiveness of an LED based on a selected light guide by showing the amount of incoupled, reflected and missed light rays.
