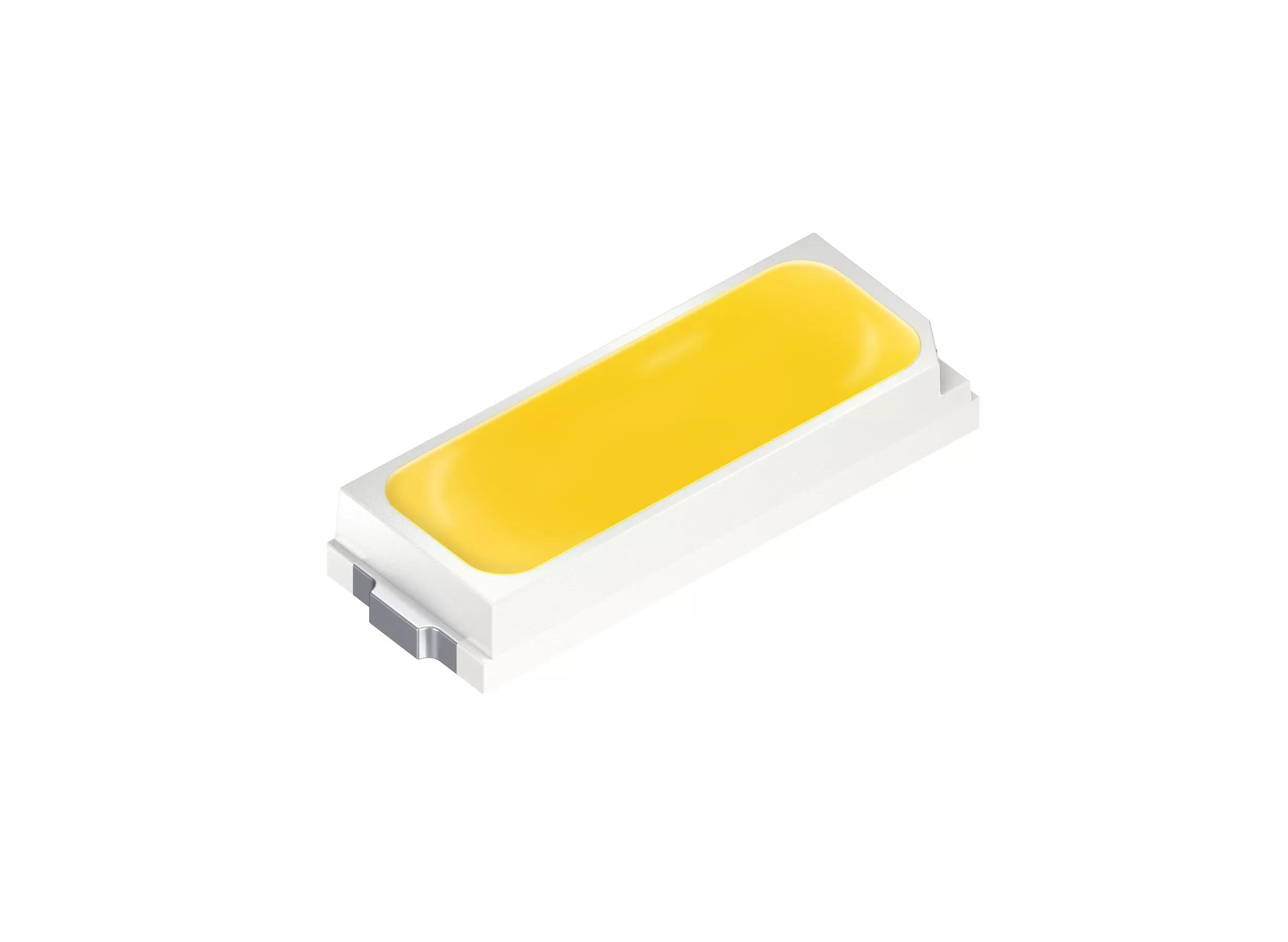

OSRAM DURIS® E 4014, GW JELMS1.EM

OSRAM DURIS® E 4014, GW JELMS1.EM
Discontinued
×
Discontinued

Description

Introducing the newest product in the DURIS family named DURIS E 4014. This is a low-power LED package that comes in an industry standard footprint of 4014. It’s compact footprint promises high efficacy and brightness which is ideal for indoor lighting applications. Perfectly suited for slim design luminaires as well as linear edge fixtures.
Select & order
Contact us Support

Details

Parameters

Color of emission
White
CRI
80
Electrical power
0.19 W
Mid
Brightness
ΦV
33.8 lm
IV
10.8 cd
ΦE
101 mW
IE
32.3 mW/sr
Operating temperature
Top min.
-40 °C
Top max.
100 °C
Dimension
l
4 mm
w
1.45 mm
h
0.65 mm

Application fields

Lighting Indoor lighting

Ordering codes

Product Type Description Order No. Availability
GW JELMS1.EM-H1H4-XX57-1 ΦV = 29 ... 35 lm, 3000 K (IF = 65 mA) Q65112A9081
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
GW JELMS1.EM-H2H6-XX53-1 ΦV = 30 ... 38 lm, 5000 K (IF = 65 mA) Q65112A9084
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
GW JELMS1.EM-H2H6-XX55-1 ΦV = 30 ... 38 lm, 4000 K (IF = 65 mA) Q65112A9083
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
GW JELMS1.EM-H2H5-XX51-1 ΦV = 30 ... 36 lm, 6500 K (IF = 65 mA) Q65112A9086
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
GW JELMS1.EM-GWH3-XX58-1 ΦV = 27 ... 33 lm, 2700 K (IF = 65 mA) Q65112A9080
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Buy now
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
Farnell
Buy now
GW JELMS1.EM-H2H5-XX56-1 ΦV = 30 ... 36 lm, 3500 K (IF = 65 mA) Q65112A9082
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
GW JELMS1.EM-H2H6-XX52-1 ΦV = 30 ... 38 lm, 5700 K (IF = 65 mA) Q65112A9085
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
