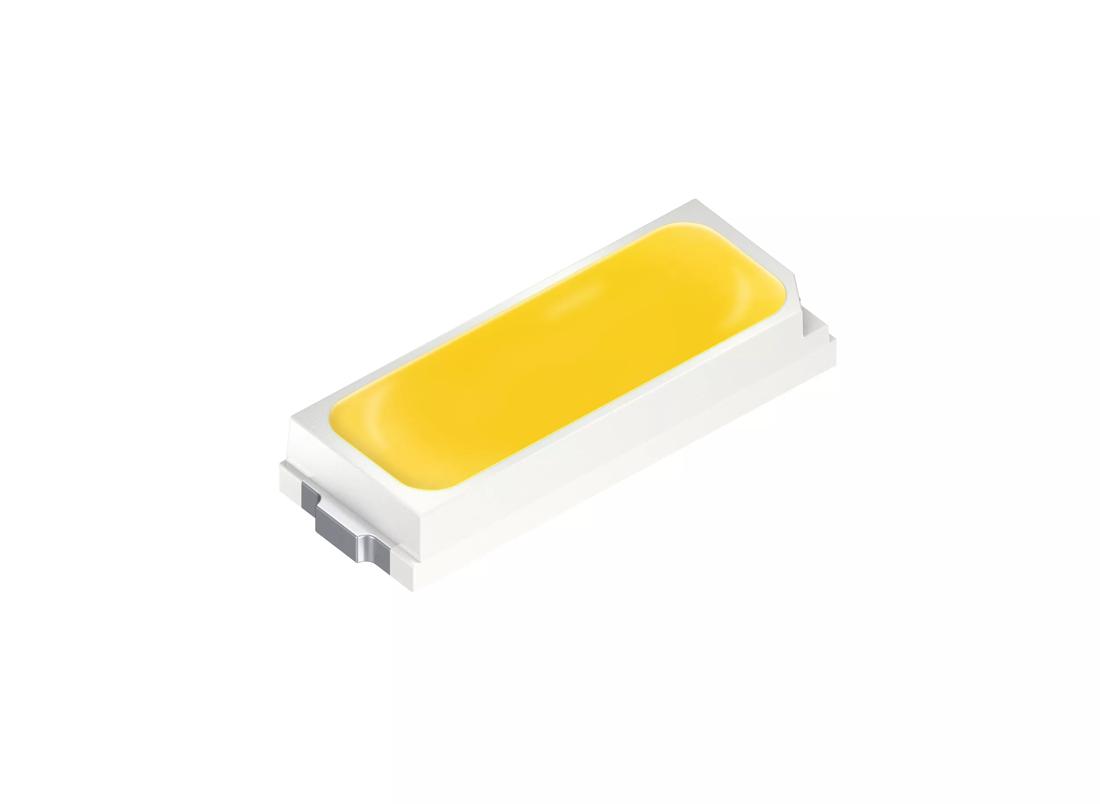

OSRAM DURIS® E 4014, GW JELMS2.EM

OSRAM DURIS® E 4014, GW JELMS2.EM
Discontinued
×
Discontinued

Description

Introducing the newest product in the DURIS family named DURIS E 4014. This is a low-power LED package that comes in an industry standard footprint of 4014. It’s compact footprint promises high efficacy and brightness which is ideal for indoor lighting applications. Perfectly suited for slim design luminaires as well as linear edge fixtures.
Select & order
Contact us Support

Details

Parameters

Color of emission
White
CRI
80
Electrical power
0.19 W
Mid
Brightness
ΦV
35.3 lm
IV
11.2 cd
ΦE
105 mW
IE
33.3 mW/sr
Operating temperature
Top min.
-40 °C
Top max.
100 °C
Dimension
l
4 mm
w
1.45 mm
h
0.65 mm

Application fields

Lighting Indoor lighting

Ordering codes

Product Type Description Order No. Availability
GW JELMS2.EM-H3H7-XX53-1 ΦV = 31.5 ... 39.0 lm, 5000 K (IF = 65 mA) Q65112A9091
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
GW JELMS2.EM-H3H7-XX55-1 ΦV = 31.5 ... 39.0 lm, 4000 K (IF = 65 mA) Q65112A9090
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
GW JELMS2.EM-H3H7-XX52-1 ΦV = 31.5 ... 39.0 lm, 5700 K (IF = 65 mA) Q65112A9092
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
GW JELMS2.EM-H2H6-XX56-1 ΦV = 30.0 ... 37.5 lm, 3500 K (IF = 65 mA) Q65112A9089
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
GW JELMS2.EM-H3H7-XX51-1 ΦV = 31.5 ... 39.0 lm, 6500 K (IF = 65 mA) Q65112A9093
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
GW JELMS2.EM-GWH4-XX58-1 ΦV = 27.0 ... 34.5 lm, 2700 K (IF = 65 mA) Q65112A9087
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
GW JELMS2.EM-H1H5-XX57-1 ΦV = 28.5 ... 36.0 lm, 3000 K (IF = 65 mA) Q65112A9088
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
