OSRAM DURIS™ E 5, GW JDSMS1.CC

Discontinued
×
Discontinued

Description

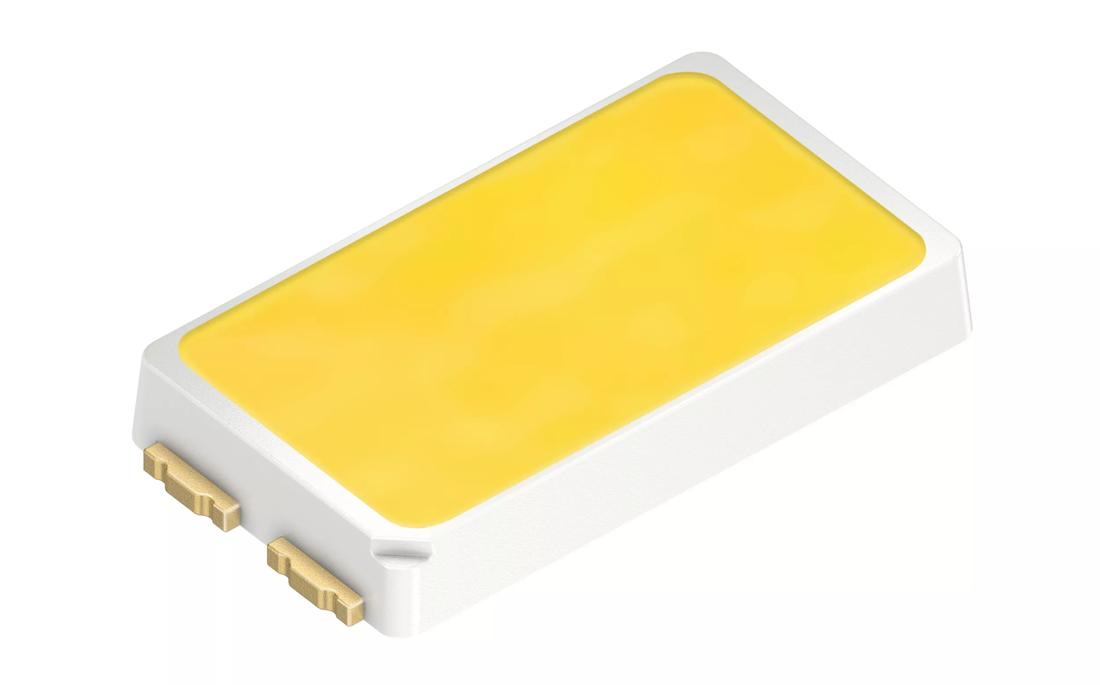

The DURIS™ E 5 combines high efficacy and a wide beam angle into a compact format (5.6 mm x 3.0 mm). This is key to homogeneous illumination applications where the DURIS™ E 5 never fails to impress with its performance on system level.
Datasheet
GW JDSMS1.CC
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
CRI
90
Electrical power
0.38 W
Mid
Brightness
ΦV
39.6 lm
IV
12.7 cd
ΦE
145 mW
IE
46.6 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
85 °C
Dimension
l
5.6 mm
w
3.0 mm
h
0.77 mm

Application fields

Lighting Indoor lighting

Ordering information

Product Type Description Ordering code Availability
GW JDSMS1.CC-EUFQ-5U8X-L1N2 = 10420.00 ... 13000.00 mcd, 2700 K (IF = 120 mA) Q65111A6277 Discontinued
GW JDSMS1.CC-FPFR-5O8Q-L1N2 = 11200.00 ... 14000.00 mcd, 3500 K (IF = 120 mA) Q65111A6276 Discontinued
GW JDSMS1.CC-FPFR-5R8T-L1N2 = 11200.00 ... 14000.00 mcd, 3000 K (IF = 120 mA) Q65111A6275 Discontinued
GW JDSMS1.CC-FQFS-5L7N-L1N2 = 12100.00 ... 15000.00 mcd, 4000 K (IF = 120 mA) Q65111A6274 Discontinued

Downloads

Datasheets
GW JDSMS1.CC · Datasheet · PDF · en_US

Application note
Brilliant Mix and Mix-to-Match — Professional white for general lighting applications · Product related · PDF · en_US
Light quality — White light parameters · Product related · PDF · en_US
Light quality — Color metrics · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Chemical compatibility of LEDs · General information · PDF · en_US
Measurement, calibration and measurement uncertainty of LEDs · General information · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Handling of silicon resin LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Details on lead-free reflow soldering of LEDs · Soldering and processing · PDF · en_US
Manual lead-free soldering of LEDs · Soldering and processing · PDF · en_US
Measuring of the temperature profile during the reflow solder process · Soldering and processing · PDF · en_US
Processing of SMD LEDs · Soldering and processing · PDF · en_US
Recommended pick-and-place tools of LEDs · Soldering and processing · PDF · en_US
PCB technologies for LED applications · Thermal management · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Determination of resistances for brightness compensation · Electrical design · PDF · en_US
Dimming InGaN LEDs · Electrical design · PDF · en_US
LED driving technology for long term flexibility · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US
