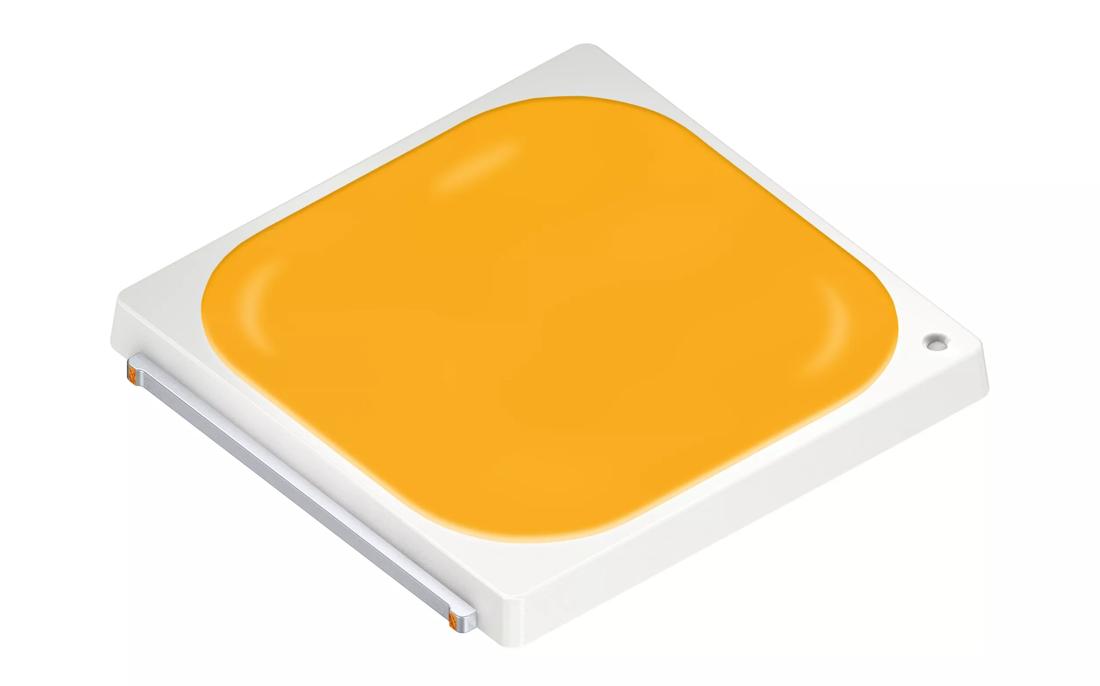

OSRAM DURIS® S 10, GW P7LM32.EM

Discontinued
×
Discontinued

Description

DURIS® S 10, latest addition of chip-array SMD family, creates a single spot light design with excellent color uniformity appearance. In a 7.0x7.0mm footprint, it’s new level of light output can reach up to 1500lm, makes it a perfect choice for powerful & cost effective general lighting solutions.

Details

Parameters

Color of emission
White
CRI
80
Electrical power
8.4 W
Ultra High
Beam angle
120 °
Operating temperature
Top min.
-40 °C
Top max.
110 °C
Dimension
l
7.4 mm
w
7.4 mm
h
0.7 mm

Ordering codes

Product Type Description Order No. Availability
GW P7LM32.EM-QURP-XX56-1 ΦV = 1042.0 ... 1210.0 lm, 3500 K (IF = 300 mA) Q65112A4731
GW P7LM32.EM-QSQU-XX58-1 ΦV = 892.0 ... 1120.0 lm, 2700 K (IF = 300 mA) Q65111A7572
GW P7LM32.EM-RPRQ-XX57-1 ΦV = 1120.0 ... 1300.0 lm, 3000 K (IF = 300 mA) Q65112A7280
GW P7LM32.EM-RPRQ-XX51-1 ΦV = 1120.0 ... 1300.0 lm, 6500 K (IF = 300 mA) Q65112A7282
GW P7LM32.EM-QTRP-XX57-1 ΦV = 970.0 ... 1210.0 lm, 3000 K (IF = 300 mA) Q65111A7560
GW P7LM32.EM-RPRQ-XX55-1 ΦV = 1120.0 ... 1300.0 lm, 4000 K (IF = 300 mA) Q65112A7281
GW P7LM32.EM-QURP-XX58-1 ΦV = 1042.0 ... 1210.0 lm, 2700 K (IF = 300 mA) Q65112A5521
GW P7LM32.EM-QURP-XX55-1 ΦV = 1042.0 ... 1210.0 lm, 4000 K (IF = 300 mA) Q65112A5523
GW P7LM32.EM-QURP-XX57-1 ΦV = 1042.0 ... 1210.0 lm, 3000 K (IF = 300 mA) Q65112A5522
GW P7LM32.EM-QTRP-XX55-1 ΦV = 970.0 ... 1210.0 lm, 4000 K (IF = 300 mA) Q65111A7558
GW P7LM32.EM-QURQ--XX53-1 ΦV = 1042.0 ... 1300.0 lm, 5000 K (IF = 300 mA) Q65111A7556
GW P7LM32.EM-QURQ-XX51-1 ΦV = 1042.0 ... 1300.0 lm, 6500 K (IF = 300 mA) Q65111A7554
GW P7LM32.EM-QURQ-XX52-1 ΦV = 1042.0 ... 1300.0 lm, 5700 K (IF = 300 mA) Q65111A7555
