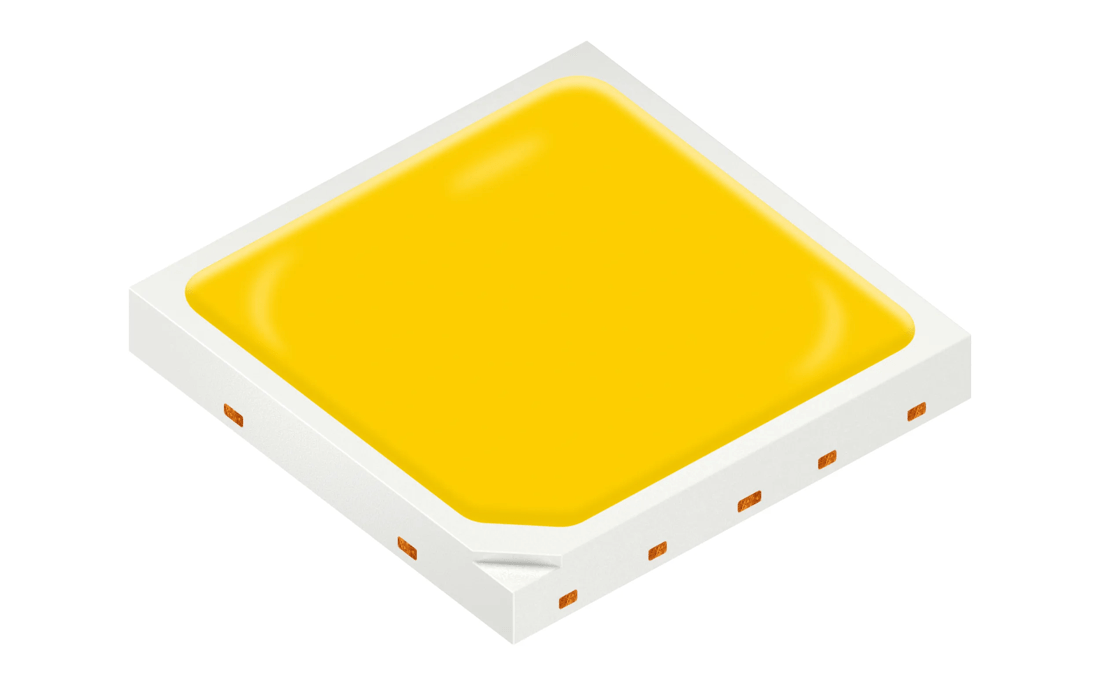

OSRAM DURIS™ S 5050, GW P9LR37.PM

×

Description

The latest Duris™ S 5050 generation of LEDs offers an impressive efficacy performance combined with DLC Premium Lifetime achievement. This 5050 leadframe package offers customers a perfect solution for High Efficacy and Compact Luminaire designs for Outdoor Professional lighting; High-Bays, Streetlights, Area Lights, Flood Lights.
Datasheet
GW P9LR37.PM
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
CRI
70
Electrical power
1.0 W
High
Brightness
ΦV
215 lm
IV
71.2 cd
ΦE
608 mW
IE
201 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
105 °C
Dimension
l
5.0 mm
w
5.0 mm
h
0.7 mm

Ordering information

Product Type Description Ordering code Availability
GW P9LR37.PM-L9M5-XX510-1 ΦV = 170.0 ... 230.0 lm, 2200 K (IF = 180 mA) Q65115A0120 Full production
GW P9LR37.PM-M2M5-XX58-1 ΦV = 190.0 ... 230.0 lm, 2700 K (IF = 180 mA) Q65115A0121 Full production
GW P9LR37.PM-M3M8-XX51-1 ΦV = 200.0 ... 260.0 lm, 6500 K (IF = 180 mA) Q65115A0127 Full production
GW P9LR37.PM-M3M8-XX56-1 ΦV = 200.0 ... 260.0 lm, 3500 K (IF = 180 mA) Q65115A0123 Full production
GW P9LR37.PM-M3M8-XX57-1 ΦV = 200.0 ... 260.0 lm, 3000 K (IF = 180 mA) Q65115A0122 Full production
GW P9LR37.PM-M4M8-XX52-1 ΦV = 210.0 ... 260.0 lm, 5700 K (IF = 180 mA) Q65115A0126 Full production
GW P9LR37.PM-M4M8-XX53-1 ΦV = 210.0 ... 260.0 lm, 5000 K (IF = 180 mA) Q65115A0125 Full production
GW P9LR37.PM-M4M8-XX55-1 ΦV = 210.0 ... 260.0 lm, 4000 K (IF = 180 mA) Q65115A0124 Full production
