Details
Parameters
Color of emission
White
Electrical power
3.6
W
High
Brightness
ΦV
315
lm
IV
153
cd
ΦE
991
mW
IE
482
mW/sr
Beam angle
∢
95
°
Operating temperature
Top
min.
-40
°C
Top
max.
150
°C
Dimension
l
4.4
mm
w
4.4
mm
h
2.4
mm
Ordering codes
Product Type | Description | Order No. | Availability |
---|---|---|---|
LZ1-00CW02-0055 | ΦV = 228 ... 445 lm, 5500 K (IF = 1000 mA) | Q65113A1992 | |
LZ1-00CW02-0065 | ΦV = 228 ... 445 lm, 6500 K (IF = 1000 mA) | Q65113A1991 |
Downloads
For software click here/for further documents visit our
download center
Datasheets
LZ1-00CW02
Datasheet
Application note
Customer complaint management — Details on return shipments for failure analysis request (FAR)
General information
Details on photobiological safety of LED light sources
General information
Importing rayfiles and ray-measurement files of LEDs
General information
Chemical compatibility of LEDs
General information
ESD protection while handling LEDs
Handling recommendations
Dry pack information
Handling recommendations
Fundamentals of LED handling
Handling recommendations
Package related thermal resistance of LEDs
Thermal management
Temperature measurement with thermocouples
Thermal management
Thermal management of LED light sources
Thermal management
Comparison of simple LED circuits for low power LEDs
Electrical design
Dimming LEDs with respect to grouping current
Electrical design
The basic principles of Electrical Overstress (EOS)
Electrical design
Resources
CAD Data
CAD Data
Electrical Simulation
Electrical Simulation
Optical Simulation
Optical Simulation
Images

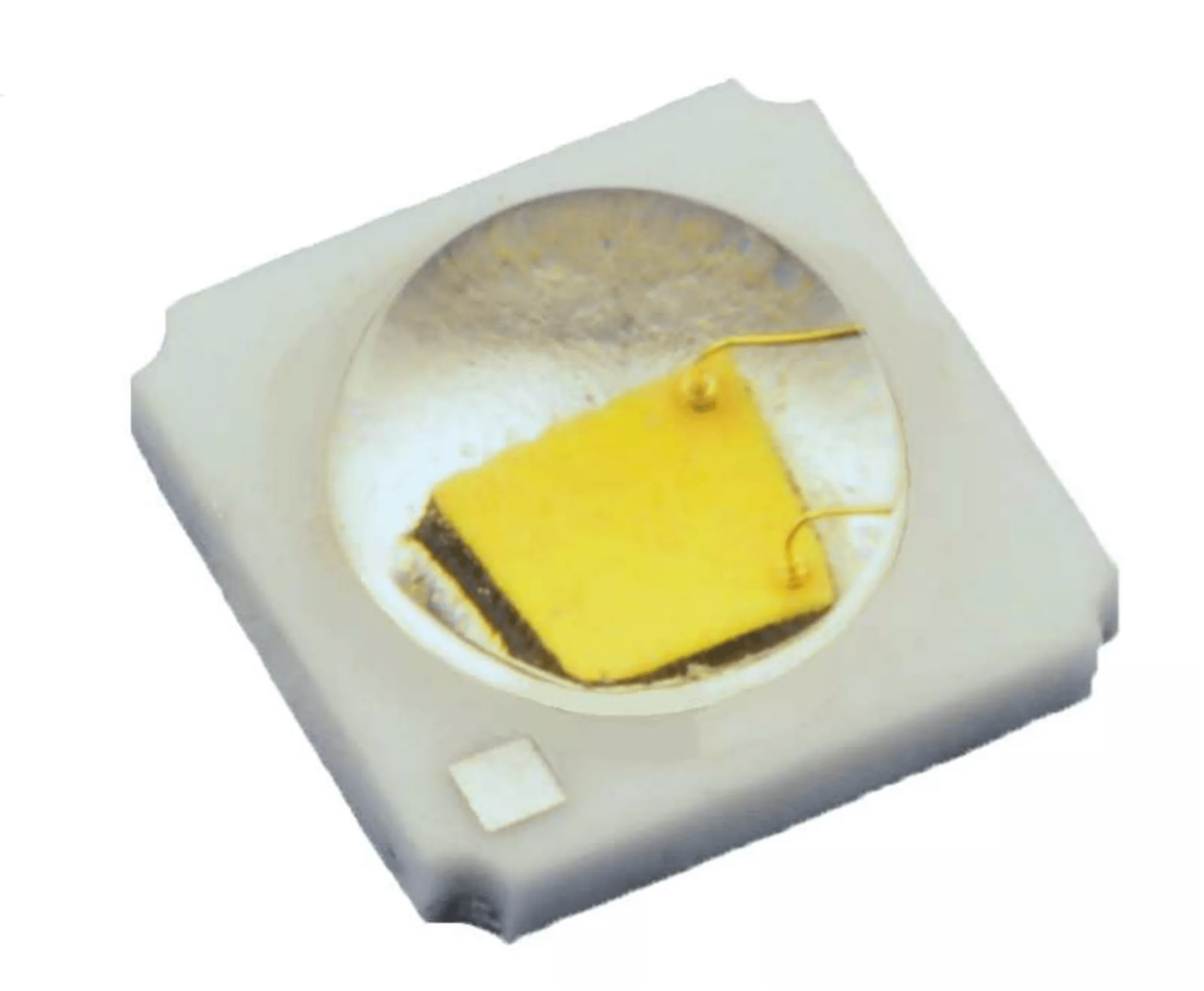

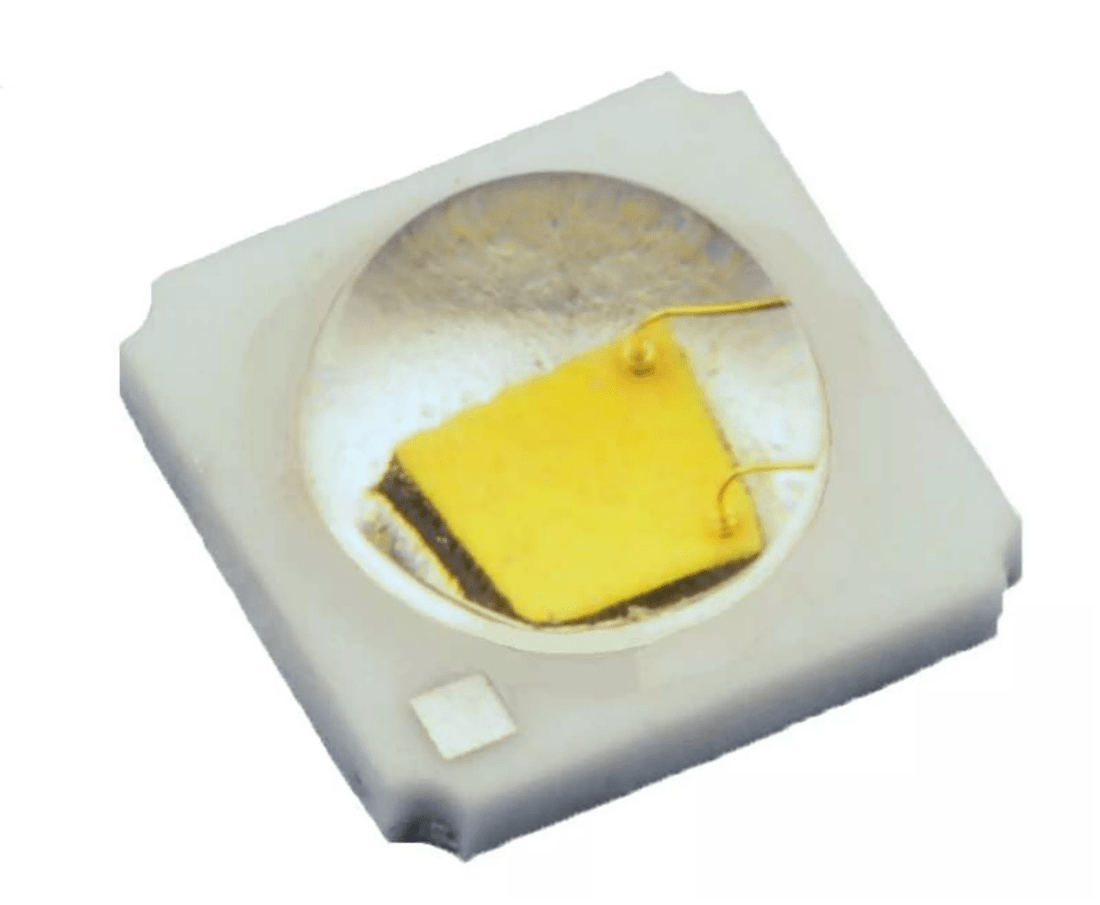

osram-dam-5082735_LZ1_White_Dome_Lens_Emitter
