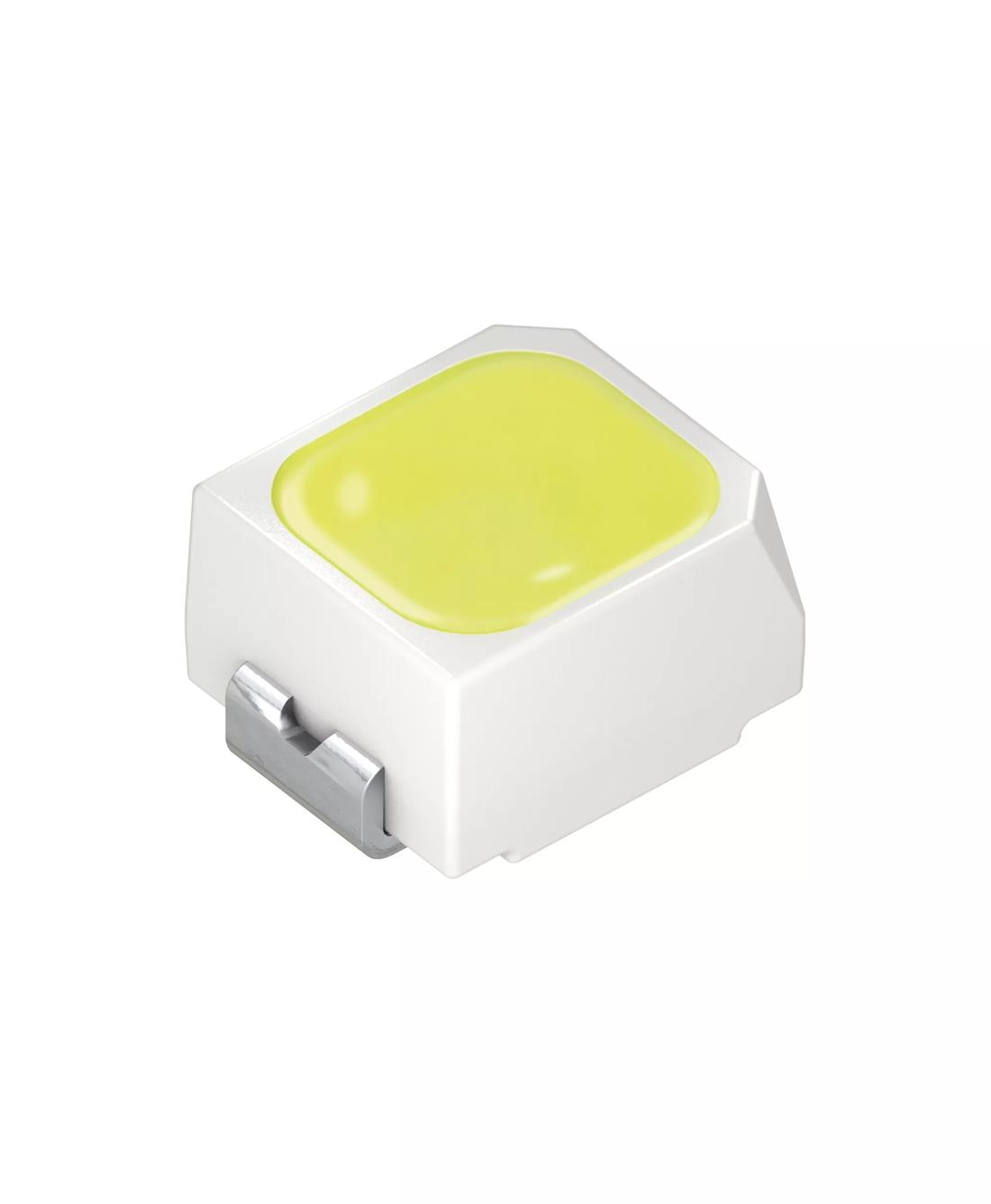

Details
Parameters
Color of emission
White
CRI
82
Electrical power
0.061
W
Low
Brightness
ΦV
6.88
lm
IV
2.4
cd
ΦE
21.8
mW
IE
7.6
mW/sr
Beam angle
∢
120
°
Operating temperature
Top
min.
-40
°C
Top
max.
110
°C
Dimension
l
2.2
mm
w
1.8
mm
h
1.3
mm
Device qualification
AEC-Q102
Ordering information
| Product Type | Description | Ordering code | Availability |
|---|---|---|---|
| LCW MVSG.EC-AZBZ-4O9Q-1 | Iv = 1500 ... 2800 mcd, 3500 K (IF = 20 mA) | Q65112A1297 | Full production |
| LCW MVSG.EC-AZBZ-4R9T-1 | Iv = 1500 ... 2800 mcd, 3000 K (IF = 20 mA) | Q65111A4583 | Full production |
| LCW MVSG.EC-AZBZ-4U9X-1 | Iv = 1500 ... 2800 mcd, 2700 K (IF = 20 mA) | Q65111A5621 | Full production |
| LCW MVSG.EC-BXCX-4C8E-1 | Iv = 1800 ... 3300 mcd, 6500 K (IF = 20 mA) | Q65111A5625 | Full production |
| LCW MVSG.EC-BXCX-4F8G-1 | Iv = 1800 ... 3300 mcd, 5700 K (IF = 20 mA) | Q65111A5624 | Full production |
| LCW MVSG.EC-BXCX-4H8I-1 | Iv = 1800 ... 3300 mcd, 5000 K (IF = 20 mA) | Q65111A4584 | Full production |
| LCW MVSG.EC-BXCX-4J8K-1 | Iv = 1800 ... 3300 mcd, 4500 K (IF = 20 mA) | Q65111A5623 | Full production |
| LCW MVSG.EC-BXCX-4L8N-1 | Iv = 1800 ... 3300 mcd, 4000 K (IF = 20 mA) | Q65111A5622 | Full production |
