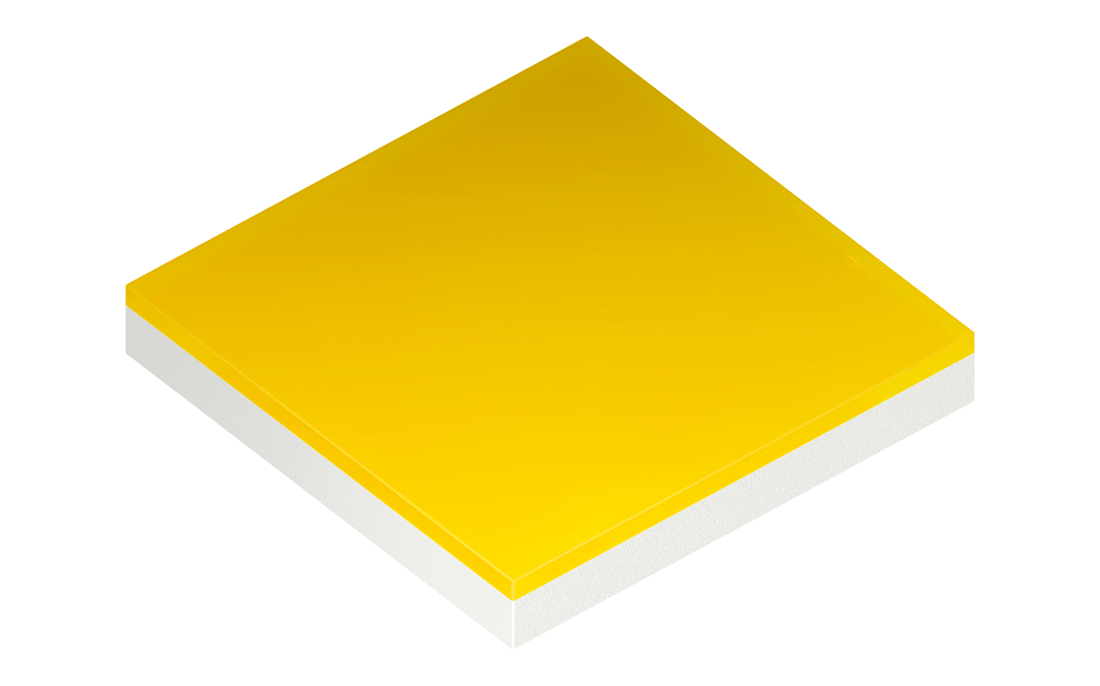

OSRAM OSCONIQ™ C 2424, GW PLLRA2.PM

New
×
New

Description

OSCONIQ™ C 2424 in a chip-scale-package footprint packs a powerful luminous flux & efficiency within a small footprint. The LEDs can be densely clustered and scalable to multiply for higher flux output. It is an ideal solution for applications that require compact size and high power.
Datasheet
GW PLLRA2.PM
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
CRI
70
Electrical power
2.0 W
High
Brightness
ΦV
320 lm
IV
105 cd
ΦE
889 mW
IE
291 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
105 °C
Dimension
l
2.35 mm
w
2.35 mm
h
0.4 mm

Ordering information

Product Type Description Ordering code Availability
GW PLLRA2.PM-M4N4-XX512-1 ΦV = 210 ... 320 lm, 1800 K (IF = 700 mA) Q65115A2106 Full production
GW PLLRA2.PM-M9N8-XX510-1 ΦV = 260 ... 360 lm, 2200 K (IF = 700 mA) Q65115A1477 Full production
GW PLLRA2.PM-N2P2-XX58-1 ΦV = 290 ... 390 lm, 2700 K (IF = 700 mA) Q65115A1476 Full production
GW PLLRA2.PM-N4P4-XX57-1 ΦV = 310 ... 410 lm, 3000 K (IF = 700 mA) Q65115A1478 Full production
GW PLLRA2.PM-N6P6-XX51-1 ΦV = 330 ... 430 lm, 6500 K (IF = 700 mA) Q65115A1484 Full production
GW PLLRA2.PM-N6P6-XX52-1 ΦV = 330 ... 430 lm, 5700 K (IF = 700 mA) Q65115A1483 Full production
GW PLLRA2.PM-N6P6-XX53-1 ΦV = 330 ... 430 lm, 5000 K (IF = 700 mA) Q65115A1482 Full production
GW PLLRA2.PM-N6P6-XX55-1 ΦV = 330 ... 430 lm, 4000 K (IF = 700 mA) Q65115A1480 Full production
GW PLLRA2.PM-N6P6-XX56-1 ΦV = 330 ... 430 lm, 3500 K (IF = 700 mA) Q65115A1479 Full production
