OSRAM OSCONIQ® E 2835, GW QTLTS1.EM

OSRAM OSCONIQ® E 2835, GW QTLTS1.EM
×

Product features

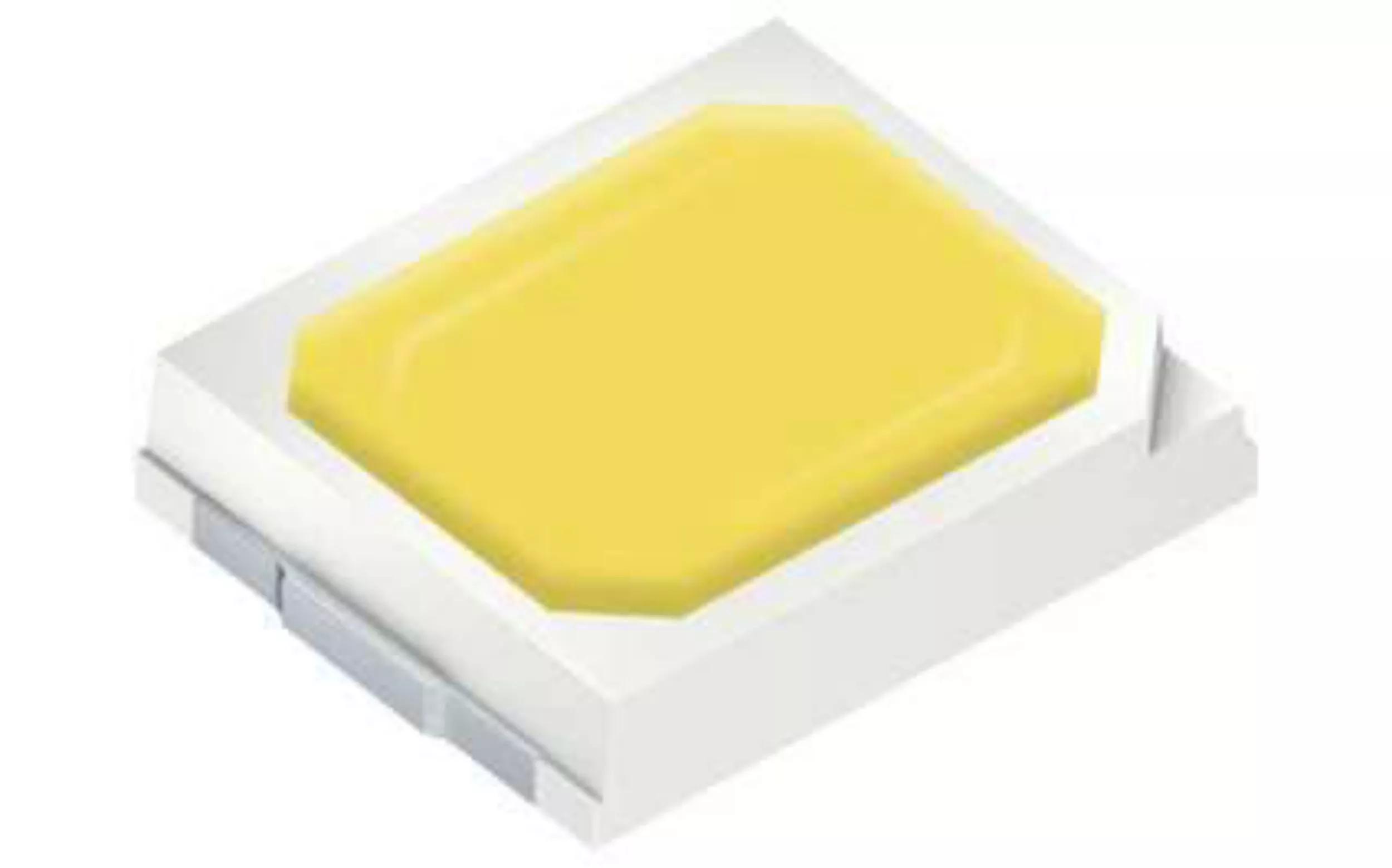

The OSCONIQ® E 2835 combines high efficacy and a wide beam angle into a compact format (2.8 mm x 3.5 mm). This is key to homogeneous illumination applications where the OSCONIQ® E 2835 never fails to impress with its performance on system level.

Downloads

Datasheet

GW QTLTS1.EM

Datasheet / 2.0 MB

Application note

Light quality — Color metrics

Product Related / 1.6 MB

Light quality — White light parameters

Product Related / 2.0 MB

Chemical compatibility of LEDs

General Information / 2.0 MB

Customer complaint management — Details on return shipments for failure analysis request (FAR)

General Information / 1.7 MB

Details on photobiological safety of LED light sources

General Information / 1.4 MB

Dry pack information

General Information / 1.2 MB

Importing rayfiles and ray-measurement files of LEDs

General Information / 903.2 KB

LED 可靠性与使用寿命

General Information / 1.7 MB

Lebensdauer und Zuverlässigkeit von LEDs

General Information / 1.9 MB

Preventing LED failures caused by corrosive materials

General Information / 1.2 MB

Reliability and lifetime of LEDs

General Information / 1.9 MB

Cleaning of LEDs

Processing and Handling / 795.1 KB

ESD protection while handling LEDs

Processing and Handling / 1.8 MB

Further details on lead free reflow soldering of LEDs

Processing and Handling / 1.4 MB

LED 无铅回流焊的详细介绍

Processing and Handling / 1.7 MB

Manual lead-free soldering of LEDs

Processing and Handling / 1.9 MB

Weitere Hinweise zum bleifrei Reflow-Löten von LEDs

Processing and Handling / 1.4 MB

Comparison of simple LED circuits for low power LEDs

Driving of LEDs / 1.2 MB

Determination of resistances for brightness compensation

Driving of LEDs / 873.5 KB

LED driving technology for long term flexibility

Driving of LEDs / 1.1 MB

Measurement, calibration and measurement uncertainty of LEDs

Measurement / 2.5 MB

欧司朗光电半导体有限公司 LED 的测量、

Measurement / 2.4 MB

Optical simulation

Optical Simulation

Optical simulation

CAD files

CAD Data

CAD files

Electrical simulation

Electrical Simulation

Electrical simulation

Ordering codes

Product Type Description Order No. Availability
GW QTLTS1.EM-H1H8-XX510-1 ΦV = 28.5 ... 40.5 lm, 2200 K (IF = 65 mA) Q65113A4026
GW QTLTS1.EM-H3HV-XX58-1 ΦV = 31.5 ... 43.5 lm, 2700 K (IF = 65 mA) Q65113A4027
GW QTLTS1.EM-H4HW-XX56-1 ΦV = 33.0 ... 45.0 lm, 3500 K (IF = 65 mA) Q65113A4029
GW QTLTS1.EM-H4HW-XX57-1 ΦV = 33.0 ... 45.0 lm, 3000 K (IF = 65 mA) Q65113A4028
GW QTLTS1.EM-H5J1-XX51-1 ΦV = 34.5 ... 46.5 lm, 6500 K (IF = 65 mA) Q65113A4024
GW QTLTS1.EM-H5J1-XX52-1 ΦV = 34.5 ... 46.5 lm, 5700 K (IF = 65 mA) Q65113A4025
GW QTLTS1.EM-H6J2-XX55-1 ΦV = 36.0 ... 48.0 lm, 4000 K (IF = 65 mA) Q65113A4030
GW QTLTS1.EM-H5J1-XX53-1 ΦV = 34.5 ... 46.5 lm, 5000 K (IF = 65 mA) Q65113A4031
