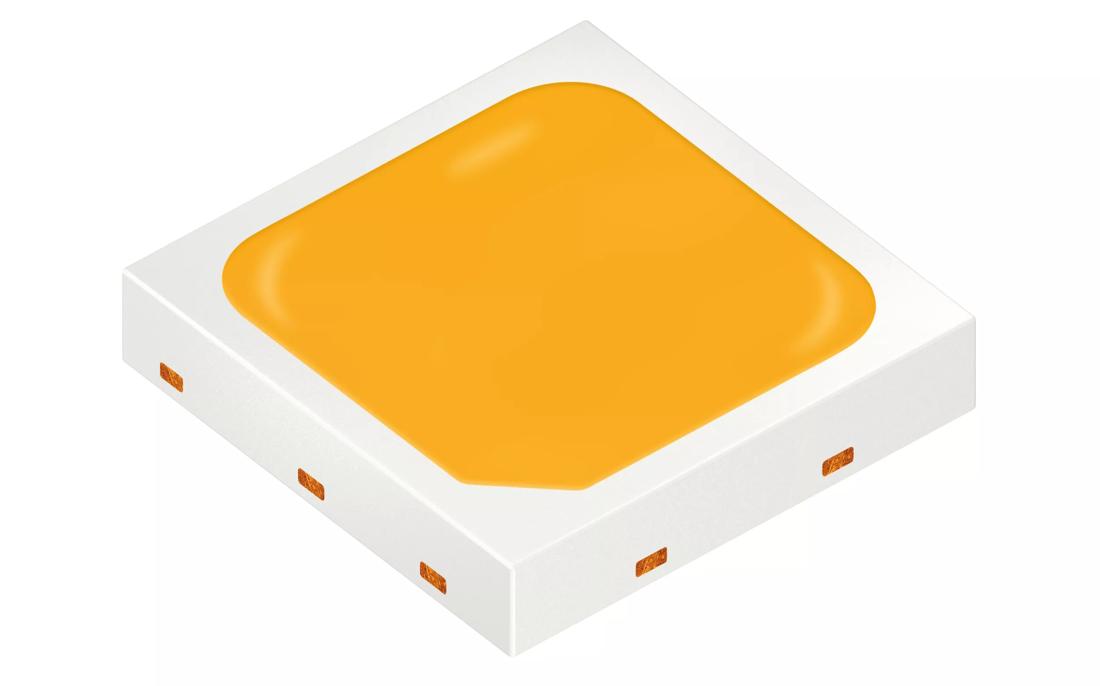

OSRAM OSCONIQ® E 3030, GW QSLPS1.PM

Name: OSRAM OSCONIQ® E 3030, GW QSLPS1.PM
Brand: ams-OSRAM AG

Description

This 6V OSCONIQ E 3030 LED addresses use-cases in various general lighting applications including indoor & outdoor fixtures, area lighting and downlights where high flux is a key requirement.

Datasheet

Select & order

Details

Parameters

Color of emission

White

CRI

Electrical power

0.93 W

High

Brightness

Φ_V

163 lm

I_V

54.2 cd

Φ_E

466 mW

I_E

155 mW/sr

Φ_P

0.758 µmol/s

Beam angle

∢

120 °

Operating temperature

T_op min.

-40 °C

T_op max.

100 °C

Dimension

3 mm

0.6 mm

Application fields

Lighting Indoor lighting

Ordering codes

Product Type	Description	Order No.	Availability
GW QSLPS1.PM-L1L4-XX52-1	Φ_V = 155.0 ... 175.0 lm, 5700 K (I_F = 150 mA)	Q65113A7890	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product
GW QSLPS1.PM-L1L4-XX57-1	Φ_V = 155.0 ... 175.0 lm, 3000 K (I_F = 150 mA)	Q65113A7894	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product
GW QSLPS1.PM-LZL2-XX58-1	Φ_V = 150.0 ... 165.0 lm, 2700 K (I_F = 150 mA)	Q65113A7895	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product
GW QSLPS1.PM-L1L3-XX51-1	Φ_V = 155.0 ... 170.0 lm, 6500 K (I_F = 150 mA)	Q65113A7889	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product
GW QSLPS1.PM-L1L4-XX56-1	Φ_V = 155.0 ... 175.0 lm, 3500 K (I_F = 150 mA)	Q65113A7893	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product
GW QSLPS1.PM-L2L4-XX55-1	Φ_V = 160.0 ... 175.0 lm, 4000 K (I_F = 150 mA)	Q65113A7892	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product
GW QSLPS1.PM-L2L4-XX53-1	Φ_V = 160.0 ... 175.0 lm, 5000 K (I_F = 150 mA)	Q65113A7891	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Request product
