Details
Parameters
Color of emission
White
CRI
90
Electrical power
0.17
W
Mid
Brightness
ΦV
31.5
lm
IV
10.4
cd
ΦE
93.4
mW
IE
30.8
mW/sr
Beam angle
∢
120
°
Operating temperature
Top
min.
-40
°C
Top
max.
105
°C
Dimension
l
3.25
mm
w
3.25
mm
h
0.75
mm
Application fields
Ordering information
| Product Type | Description | Ordering code | Availability |
|---|---|---|---|
| GW QSLMS3.CM-GVH1-XX310-1 | ΦV = 25.5 ... 30.0 lm, Mountingmethode:SDCM 3, 2200 K (IF = 65 mA) | Q65115A2692 | Pre-production |
| GW QSLMS3.CM-H1H3-XX38-1 | ΦV = 28.5 ... 33.0 lm, Mountingmethode:SDCM 3, 2700 K (IF = 65 mA) | Q65115A2691 | Pre-production |
| GW QSLMS3.CM-H2H4-XX37-1 | ΦV = 30.0 ... 34.5 lm, Mountingmethode:SDCM 3, 3000 K (IF = 65 mA) | Q65115A2690 | Pre-production |
| GW QSLMS3.CM-H3H5-XX36-1 | ΦV = 31.5 ... 36.0 lm, Mountingmethode:SDCM 3, 3500 K (IF = 65 mA) | Q65115A2689 | Pre-production |
| GW QSLMS3.CM-H4H6-XX31-1 | ΦV = 33.0 ... 37.5 lm, Mountingmethode:SDCM 3, 6500 K (IF = 65 mA) | Q65115A2688 | Pre-production |
| GW QSLMS3.CM-H4H6-XX32-1 | ΦV = 33.0 ... 37.5 lm, Mountingmethode:SDCM 3, 5700 K (IF = 65 mA) | Q65115A2687 | Pre-production |
| GW QSLMS3.CM-H4H6-XX33-1 | ΦV = 33.0 ... 37.5 lm, Mountingmethode:SDCM 3, 5000 K (IF = 65 mA) | Q65115A2686 | Pre-production |
| GW QSLMS3.CM-H4H6-XX35-1 | ΦV = 33.0 ... 37.5 lm, Mountingmethode:SDCM 3, 4000 K (IF = 65 mA) | Q65115A2685 | Pre-production |
Downloads
Product selector
Find the right product.

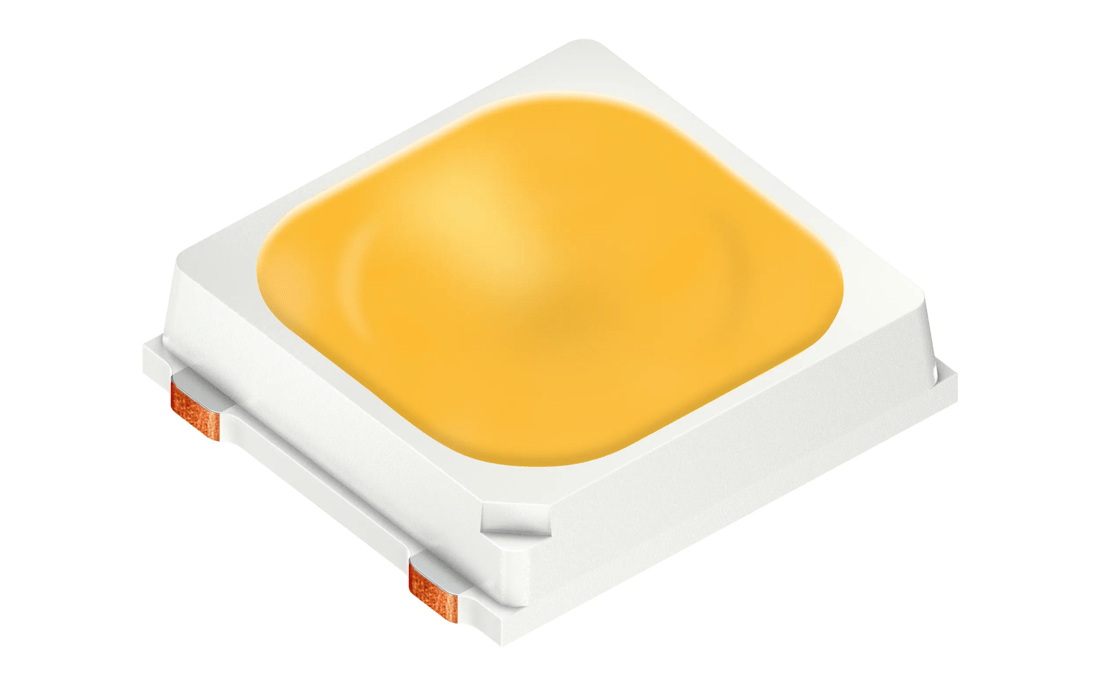

More OSCONIQ™ S 3030
The OSCONIQ™ S 3030 is a high efficacy package for indoor professional applications. It uses sapphire flip chip technology and special phosphor technology to reach even higher performance than before.
