Details
Features
- Brightness: +5% improvement vs. Incumbent solutions
- Quality: Superior corrosion stability
- System: Enhanced light quality & simplified design
Benefits
- Outstanding performance up to 238 Im/W (CRI70) 213 Im/W (CRI 80) 1178 Im/W (CRI 90)
- Advanced Flip Chip architecture with enhanced reflectivity for maximum light extraction.
- Delivers up to -1000 Im at maximum forward current (CRI 70).
- Proven long-term reliability under harsh conditions H,S exposure: 40 X / 90% RH for 336 hours.
- Exceeds stringent automotive-grade requirements.
- 40 °C / 95% RH for 450 hours.
- Symmetrical light emission enables easier optics alignment and streamlined system design.
- Supports up to 25% LED count reduction, lowering system cost and improving efficiency.
Parameters
Color of emission
White
CRI
70
Electrical power
0.98
W
High
Brightness
ΦV
245
lm
IV
80.5
cd
ΦE
687
mW
IE
226
mW/sr
Beam angle
∢
120
°
Operating temperature
Top
min.
-40
°C
Top
max.
105
°C
Dimension
l
5.0
mm
w
5.0
mm
h
0.75
mm
Application fields
Ordering information
| Product Type | Description | Ordering code | Availability |
|---|---|---|---|
| GW Q9LR35.PM-L8M8-XX512-1 | ΦV = 160 ... 260 lm, 1800 K (IF = 180 mA) | Q65113A9315 | Full production |
| GW Q9LR35.PM-M2N1-XX510-1 | ΦV = 190 ... 290 lm, 2200 K (IF = 180 mA) | Q65113A9314 | Full production |
| GW Q9LR35.PM-M4N1-XX58-1 | ΦV = 210 ... 290 lm, 2700 K (IF = 180 mA) | Q65113A9316 | Full production |
| GW Q9LR35.PM-M4N3-XX57-1 | ΦV = 210 ... 310 lm, 3000 K (IF = 180 mA) | Q65113A9318 | Full production |
| GW Q9LR35.PM-M5N3-XX56-1 | ΦV = 220 ... 310 lm, 3500 K (IF = 180 mA) | Q65113A9317 | Full production |
| GW Q9LR35.PM-M5N4-XX51-1 | ΦV = 220 ... 320 lm, 6500 K (IF = 180 mA) | Q65113A9319 | Full production |
| GW Q9LR35.PM-M5N4-XX52-1 | ΦV = 220 ... 320 lm, 5700 K (IF = 180 mA) | Q65113A9320 | Full production |
| GW Q9LR35.PM-M6N5-XX53-1 | ΦV = 230 ... 330 lm, 5000 K (IF = 180 mA) | Q65113A9321 | Full production |
| GW Q9LR35.PM-M6N5-XX55-1 | ΦV = 230 ... 330 lm, 4000 K (IF = 180 mA) | Q65113A9322 | Full production |
Downloads
Product selector
Find the right product.

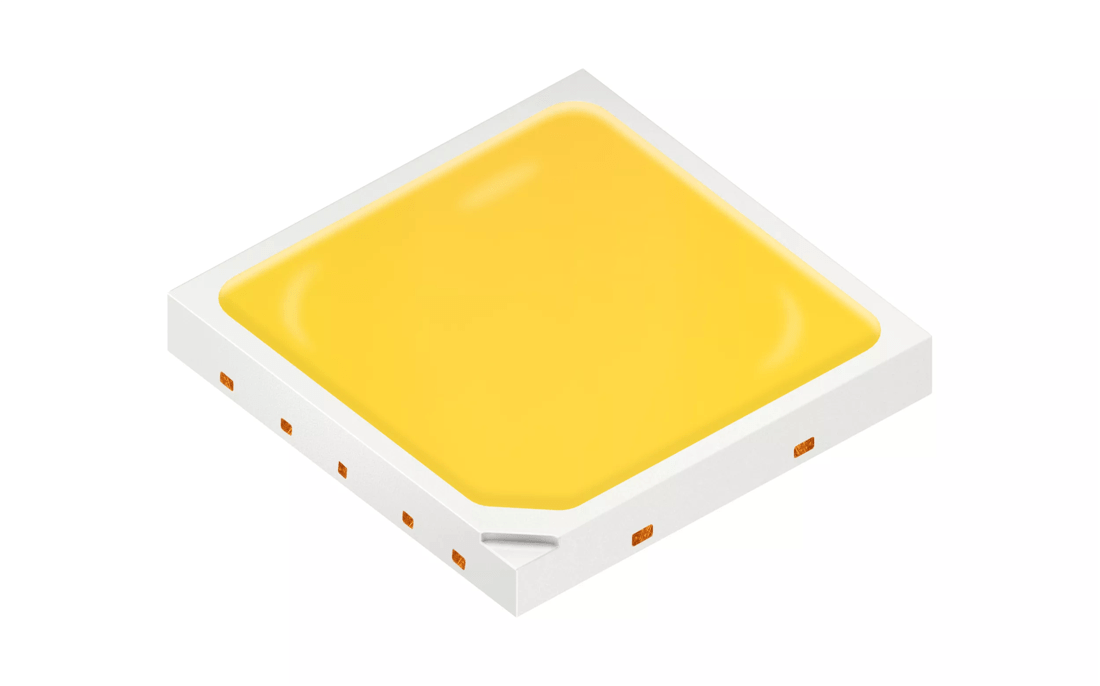

More OSCONIQ™ S 5050
The latest QFN cast 5050 LED version adds to its impressive 5050 line-up of high efficacy performance combined with DLC Premium Lifetime. This OSCONIQ S 5050 leadframe package brings its Robustness stability to another level with a Superior Corrosion protection that further enhance the suitability for Outdoor Professional lighting.
