Details
Parameters
Color of emission
White
CRI
80
Electrical power
0.99
W
High
Beam angle
∢
120
°
Operating temperature
Top
min.
-40
°C
Top
max.
105
°C
Dimension
l
5.0
mm
w
5.0
mm
h
0.7
mm
Application fields
Ordering information
| Product Type | Description | Ordering code | Availability |
|---|---|---|---|
| GW Q9LR37.EM-L8M6-XX510-1 | ΦV = 160 ... 240 lm, 2200 K (IF = 180 mA) | Q65115A3502 | Pre-production |
| GW Q9LR37.EM-L9M8-XX58-1 | ΦV = 170 ... 260 lm, 2700 K (IF = 180 mA) | Q65115A3504 | Pre-production |
| GW Q9LR37.EM-M1M8-XX57-1 | ΦV = 180 ... 260 lm, 3000 K (IF = 180 mA) | Q65115A3503 | Pre-production |
| GW Q9LR37.EM-M2M9-XX51-1 | ΦV = 190 ... 270 lm, 6500 K (IF = 180 mA) | Q65115A3505 | Pre-production |
| GW Q9LR37.EM-M2M9-XX52-1 | ΦV = 190 ... 270 lm, 5700 K (IF = 180 mA) | Q65115A3506 | Pre-production |
| GW Q9LR37.EM-M2M9-XX55-1 | ΦV = 190 ... 270 lm, 4000 K (IF = 180 mA) | Q65115A3507 | Pre-production |
| GW Q9LR37.EM-M2M9-XX56-1 | ΦV = 190 ... 270 lm, 3500 K (IF = 180 mA) | Q65115A3508 | Pre-production |
| GW Q9LR37.EM-M2MF-XX53-1 | ΦV = 190 ... 280 lm, 5000 K (IF = 180 mA) | Q65115A3509 | Pre-production |
Downloads
Datasheets
Application note
Images
Product selector
Find the right product.

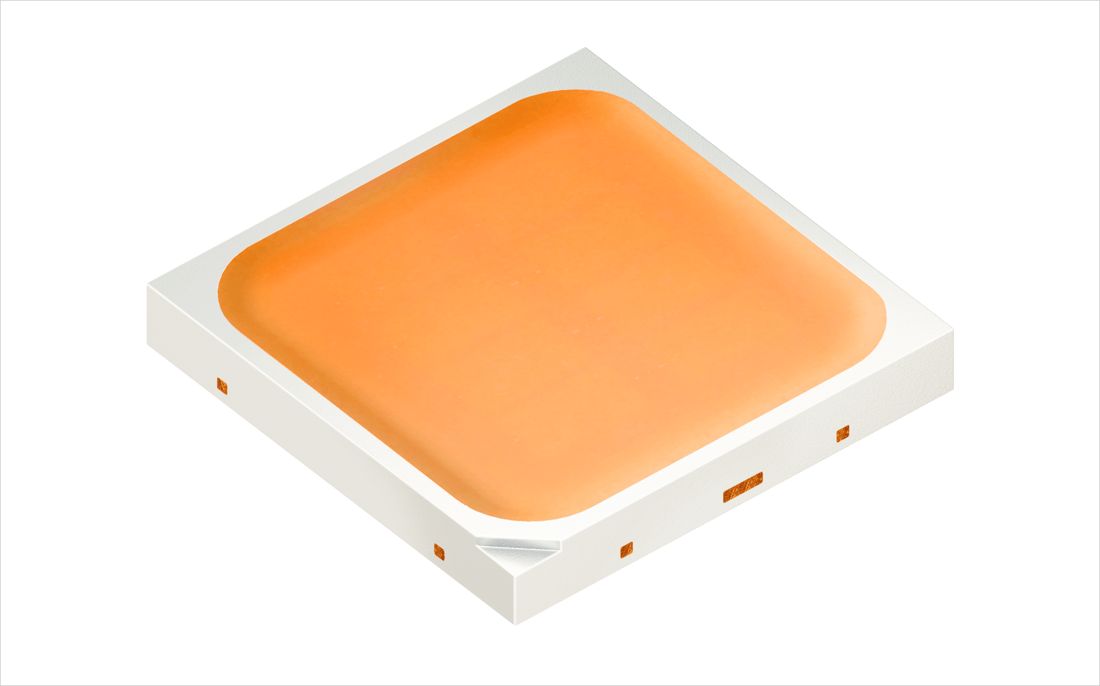

More OSCONIQ™ S 5050
The latest QFN cast 5050 LED version adds to its impressive 5050 line-up of high efficacy performance combined with DLC Premium Lifetime. This OSCONIQ S 5050 leadframe package brings its Robustness stability to another level with a Superior Corrosion protection that further enhance the suitability for Outdoor Professional lighting.
