OSRAM OSLON™ Black Flat S, KW3 HJL533.TK

×

Description

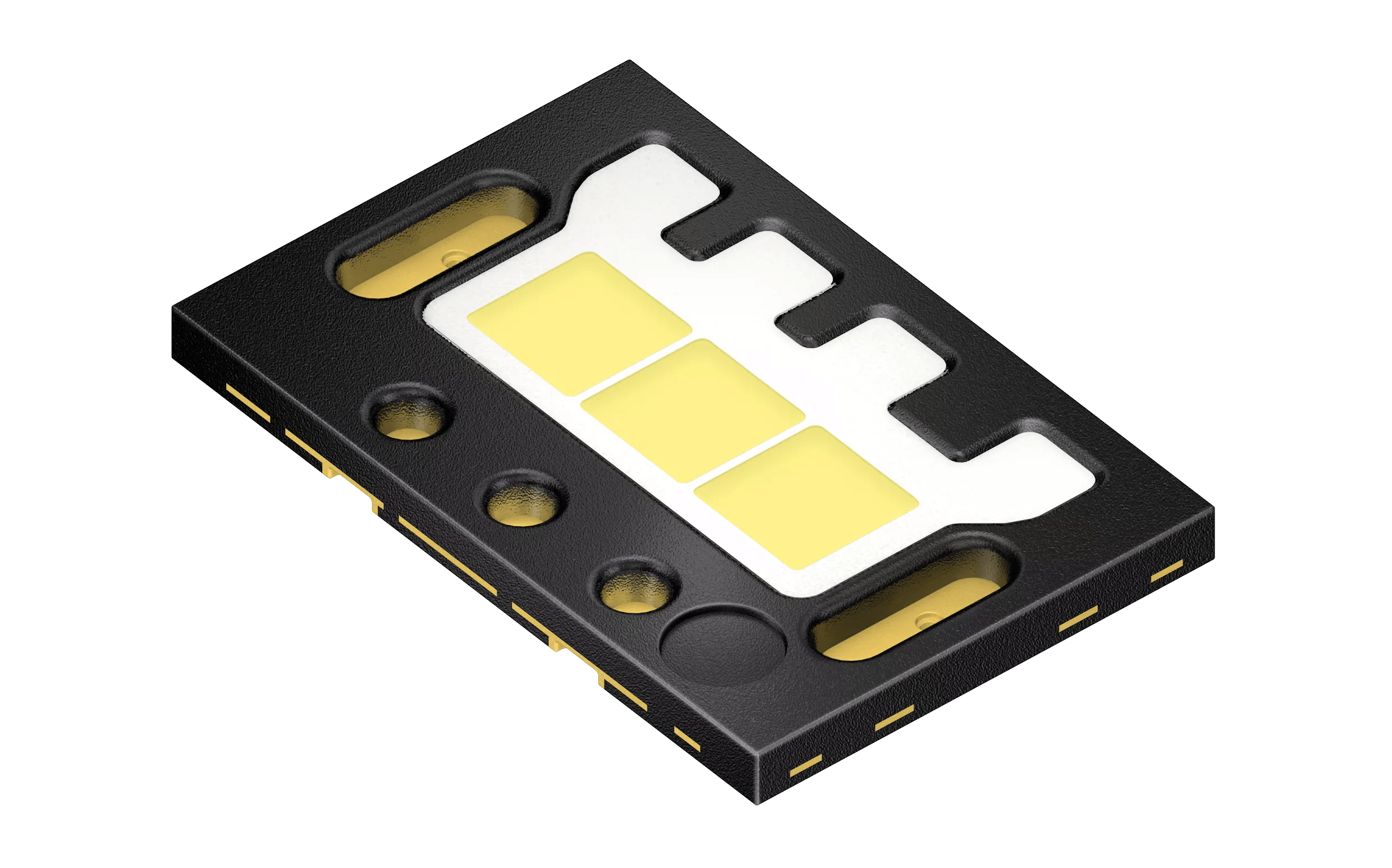

SMT package for High Power Forward Lighting applications widely in-use in global automotive market since several years. The leadframe based black package concept provides outstanding contrast and excellent 2nd board reliability for standard Headlamp solutions. The OSLON Black Flat S meets both excellent brightness in combination with high luminance.
Datasheet
KW3 HJL533.TK
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
Electrical power
9.3 W
Ultra High
Brightness
ΦV
1390 lm
IV
450 cd
ΦE
4360 mW
IE
1410 mW/sr
ΦP
6.21 µmol/s
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
135 °C
Dimension
l
5.7 mm
w
3.75 mm
h
0.49 mm
Device qualification
AEC-Q102

Ordering information

Product Type Description Ordering code Availability
KW3 HJL533.TK-6TTB-4L36M1-JCAB ΦV = 1230 ... 1535 lm (IF = 1000 mA) Q65115A0680 Full production
KW3 HJL533.TK-6TTB-5L26M1-JCAB ΦV = 1230 ... 1535 lm (IF = 1000 mA) Q65115A0681 Full production
KW3 HJL533.TK-7TTB-5L26M1-JCAB ΦV = 1275 ... 1535 lm (IF = 1000 mA) Q65115A0682 Full production
KW3 HJL533.TK-T5TB-4L35M1-JCAB ΦV = 1185 ... 1535 lm (IF = 1000 mA) Q65115A0683 Full production
