Description

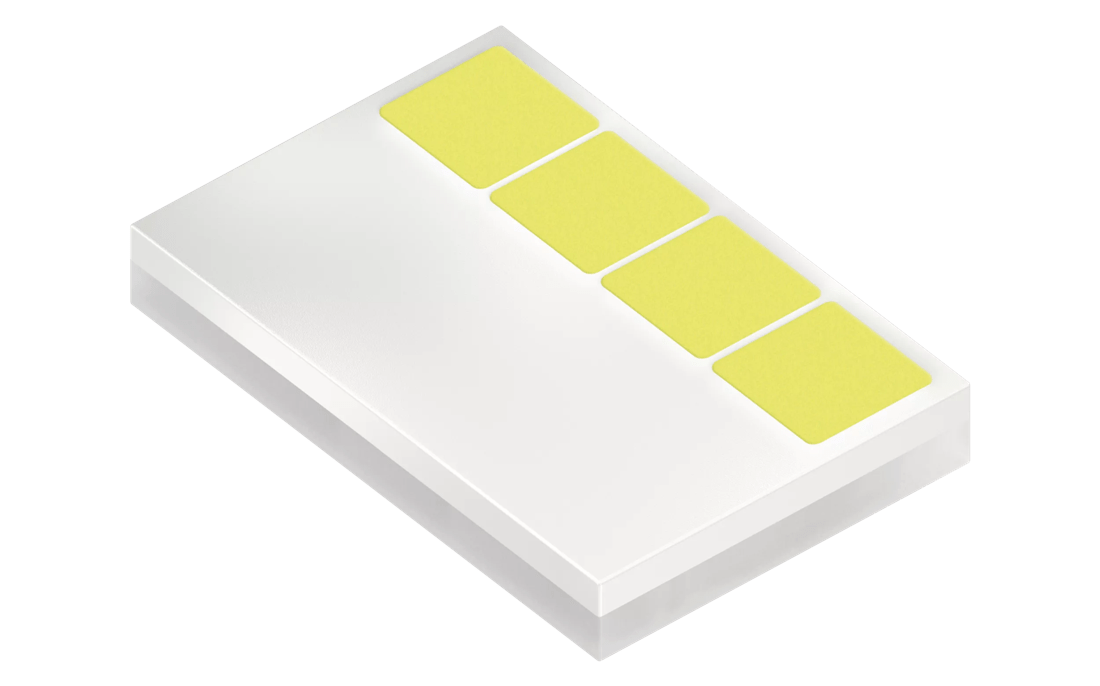

Compact light source with isolated thermal pad for improved heat dissipation and small z-tolerance (+/- 35 µm).
Datasheet
KW4 CHLNM1.TG
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
Electrical power
12.0 W
Ultra High
Brightness
ΦV
1410 lm
IV
467 cd
ΦE
4340 mW
IE
1440 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
125 °C
Dimension
l
4.66 mm
w
3.1 mm
h
0.73 mm

Ordering codes

Product Type Description Order No. Availability
KW4 CHLNM1.TG-Z5R6-ebvFfcbB46-4LMC ΦV = 1120 ... 1690 lm (IF = 1000 mA) Q65112A1568
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Buy now
