OSRAM OSLON™ Signal, LUW CRBP

Discontinued
×
Discontinued

Description

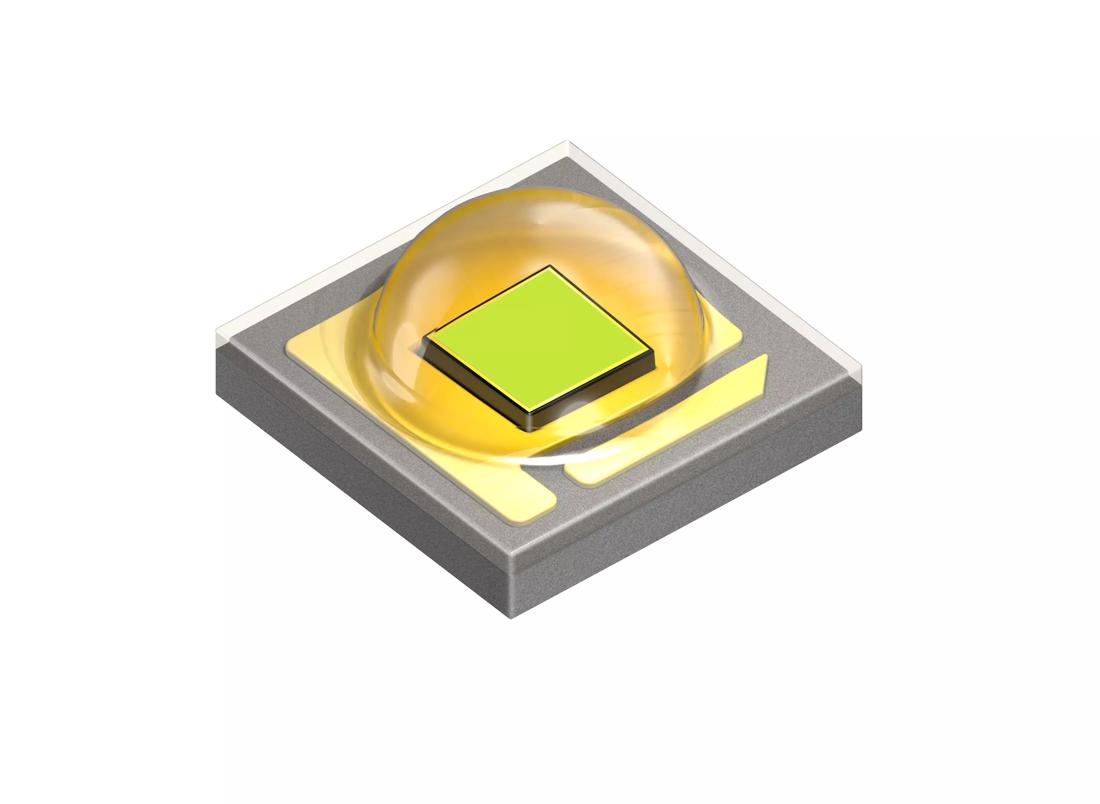

The OSLON™ Signal combine a compact size (small footprint: 3x3mm) with a high efficiency and an electrically insulated thermal pad.
Datasheet
LUW CRBP
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
Electrical power
1.0 W
High
Brightness
ΦV
146 lm
IV
45.8 cd
ΦE
466 mW
IE
146 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
120 °C
Dimension
l
3.0 mm
w
3.0 mm
h
1.75 mm

Ordering information

Product Type Description Ordering code Availability
LUW CRBP-LXLZ-G4J4-1 ΦV = 112 ... 180 lm (IF = 350 mA) Q65111A5182 Discontinued
