OSRAM OSLON™ Square Essential, GW CPSRM1.PM

New
×
New

Description

Latest OSLON SQUARE with well known superior robustness, high reliability, long lifetime and top performance which meets the essential application needs.
Datasheet
GW CPSRM1.PM
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
CRI
70
Electrical power
2.0 W
High
Brightness
ΦV
360 lm
IV
111 cd
ΦE
1020 mW
IE
316 mW/sr
ΦP
4.767 µmol/s
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
125 °C
Dimension
l
3.5 mm
w
3.5 mm
h
2.28 mm

Ordering information

Product Type Description Ordering code Availability
GW CPSRM1.PM-M5M8-XX512-1 ΦV = 220 ... 260 lm, 1800 K (IF = 700 mA) Q65115A2134 Pre-production
GW CPSRM1.PM-M6M8-XX512-1 ΦV = 230 ... 260 lm, 1800 K (IF = 700 mA) Q65115A2133 Pre-production
GW CPSRM1.PM-N1N4-XX510-1 ΦV = 280 ... 320 lm, 2200 K (IF = 700 mA) Q65115A2136 Pre-production
GW CPSRM1.PM-N2N4-XX510-1 ΦV = 290 ... 320 lm, 2200 K (IF = 700 mA) Q65115A2135 Pre-production
GW CPSRM1.PM-N2N5-XX58-1 ΦV = 290 ... 330 lm, 2700 K (IF = 700 mA) Q65115A2138 Pre-production
GW CPSRM1.PM-N4N6-XX58-1 ΦV = 310 ... 340 lm, 2700 K (IF = 700 mA) Q65115A2137 Pre-production
GW CPSRM1.PM-N6N9-XX51-1 ΦV = 330 ... 370 lm, 6500 K (IF = 700 mA) Q65115A2151 Pre-production
GW CPSRM1.PM-N6N9-XX56-1 ΦV = 330 ... 370 lm, 3500 K (IF = 700 mA) Q65115A2143 Pre-production
GW CPSRM1.PM-N6N9-XX57-1 ΦV = 330 ... 370 lm, 3000 K (IF = 700 mA) Q65115A2141 Pre-production
GW CPSRM1.PM-N7N9-XX51-1 ΦV = 340 ... 370 lm, 6500 K (IF = 700 mA) Q65115A2150 Pre-production
GW CPSRM1.PM-N7N9-XX56-1 ΦV = 340 ... 370 lm, 3500 K (IF = 700 mA) Q65115A2142 Pre-production
GW CPSRM1.PM-N7N9-XX57-1 ΦV = 340 ... 370 lm, 3000 K (IF = 700 mA) Q65115A2140 Pre-production
GW CPSRM1.PM-N7P1-XX55-1 ΦV = 340 ... 380 lm, 4000 K (IF = 700 mA) Q65115A2145 Pre-production
GW CPSRM1.PM-N8P1-XX55-1 ΦV = 350 ... 380 lm, 4000 K (IF = 700 mA) Q65115A2144 Pre-production
GW CPSRM1.PM-N8P2-XX52-1 ΦV = 350 ... 390 lm, 5700 K (IF = 700 mA) Q65115A2149 Pre-production
GW CPSRM1.PM-N8P2-XX53-1 ΦV = 350 ... 390 lm, 5000 K (IF = 700 mA) Q65115A2147 Pre-production
GW CPSRM1.PM-N9P2-XX52-1 ΦV = 360 ... 390 lm, 5700 K (IF = 700 mA) Q65115A2148 Pre-production
GW CPSRM1.PM-N9P2-XX53-1 ΦV = 360 ... 390 lm, 5000 K (IF = 700 mA) Q65115A2146 Pre-production

Downloads

Datasheets
GW CPSRM1.PM · Datasheet · PDF · en_US

Application note
Brilliant Mix and Mix-to-Match — Professional white for general lighting applications · Product related · PDF · en_US
Light quality — White light parameters · Product related · PDF · en_US
Light quality — Color metrics · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Chemical compatibility of LEDs · General information · PDF · en_US
Measurement, calibration and measurement uncertainty of LEDs · General information · PDF · en_US
Partial Flux — Measurement reliability of lensed LEDs · Handling recommendations · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Handling of silicon resin LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Details on lead-free reflow soldering of LEDs · Soldering and processing · PDF · en_US
Ceramic LEDs — Details on handling and processing · Soldering and processing · PDF · en_US
Manual lead-free soldering of LEDs · Soldering and processing · PDF · en_US
Measuring of the temperature profile during the reflow solder process · Soldering and processing · PDF · en_US
Processing of SMD LEDs · Soldering and processing · PDF · en_US
Recommended pick-and-place tools of LEDs · Soldering and processing · PDF · en_US
PCB technologies for LED applications · Thermal management · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Determination of resistances for brightness compensation · Electrical design · PDF · en_US
LED driving technology for long term flexibility · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US

Resources
CAD Data · CAD Data · FOLDER
Electrical Simulation · Electrical Simulation · FOLDER
Optical Simulation · Optical Simulation · FOLDER

Images

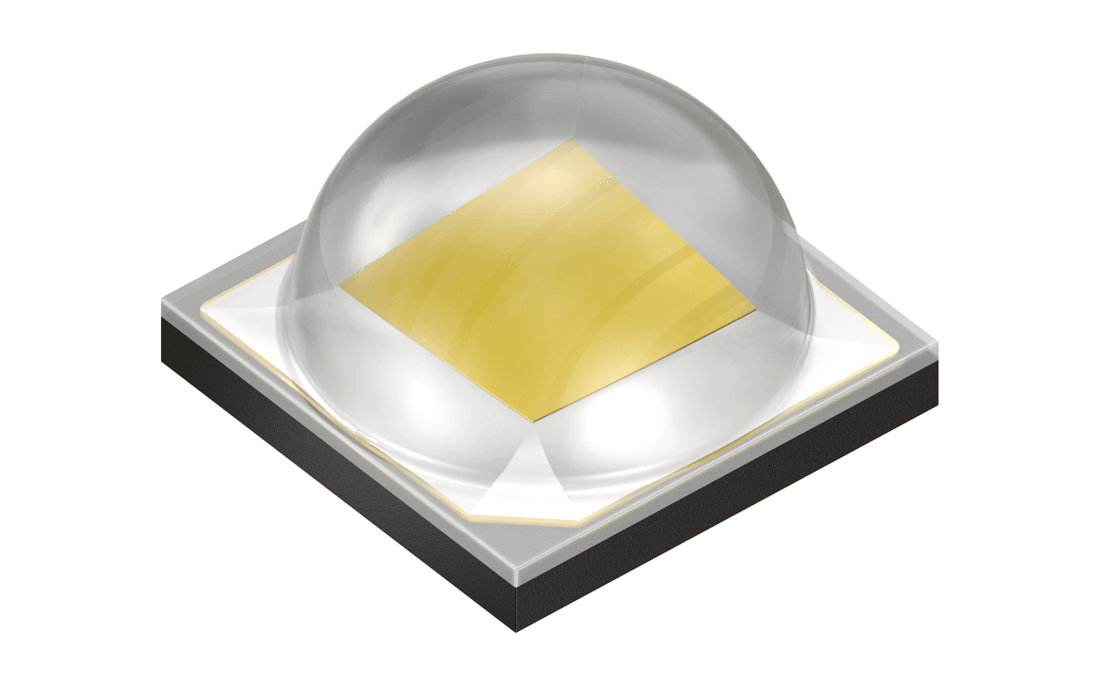

GW CPSRM1.xM 42x26mm cmyk.tif · Images · TIF
