OSRAM OSLON™ Square Flat, KW CSLPM2.PC

×

Description

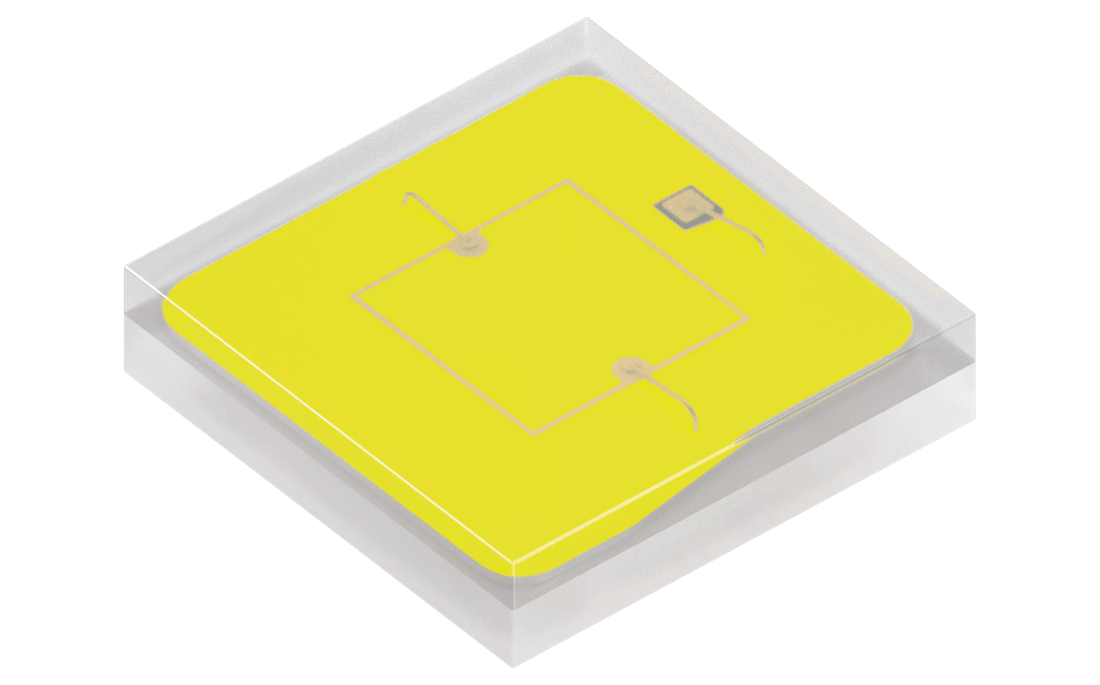

The most compact 3 x 3 mm high power LED with an electrically isolated thermal pad allows for superior heat dissipation designs. The flat package shape enhances color homogeneity due to reduced color over angle variation. Extremely low thermal resistance helps to maintain the efficiency remarkably high even when driven at higher currents.
Datasheet
KW CSLPM2.PC
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
Electrical power
2.0 W
High
Brightness
ΦV
312 lm
IV
98.5 cd
ΦE
970 mW
IE
306 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
125 °C
Dimension
l
3.0 mm
w
3.0 mm
h
0.76 mm

Ordering information

Product Type Description Ordering code Availability
KW CSLPM2.PC-7M7N-4C8E ΦV = 224 ... 400 lm, 6500 K (IF = 700 mA) Q65112A2444 Full production
KW CSLPM2.PC-7M7N-4F8G ΦV = 224 ... 400 lm, 5700 K (IF = 700 mA) Q65112A2577 Full production
KW CSLPM2.PC-7M7N-4H8I ΦV = 224 ... 400 lm, 5000 K (IF = 700 mA) Q65112A7975 Full production
