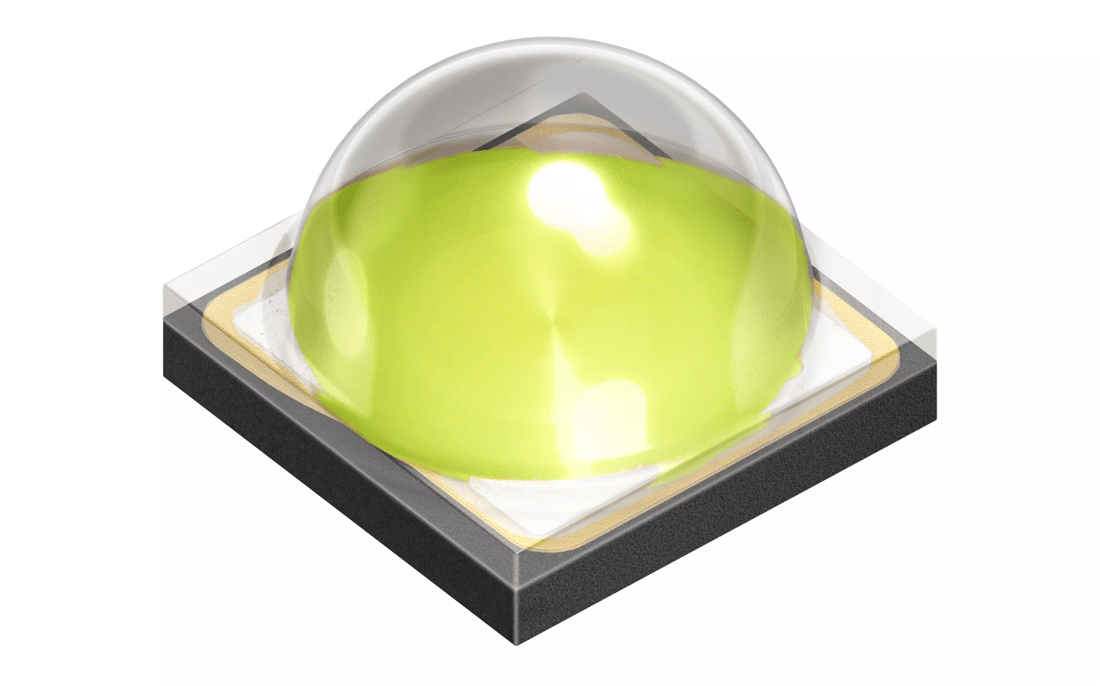

OSRAM OSLON™ Square, GW CSSRM4.HW

×

Description

New generation of OSLON Square Horti White with Photon Flux hot binning for closer match to typical operating temperatures. With higher brightness, it maximizes the photon flux efficacy on system level for horticulture applications. Unlike conventional white LEDs, ams OSRAM’s Horti White LEDs utilizes a customized phosphor solution designed to facilitate the increase of non-converted red photons to deliver superior fixture level efficacy. Additionally, this high-power LED provides excellent reliability, long lifetime, proven robustness and low thermal resistance in a compact footprint.
Datasheet
GW CSSRM4.HW
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
Electrical power
2.0 W
High
Brightness
ΦV
392 lm
IV
125 cd
ΦE
1160 mW
IE
370 mW/sr
ΦP
5.12 µmol/s
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
125 °C
Dimension
l
3.0 mm
w
3.0 mm
h
2.02 mm

Ordering information

Product Type Description Ordering code Availability
GW CSSRM4.HW-SHSM-H1H2-1 Φ<_sub>P = 4.60 ... 5.75 μmol/s (IF = 700 mA) Q65113A6880 Full production
GW CSSRM4.HW-SJSM-H3H4-1 Φ<_sub>P = 4.80 ... 5.75 μmol/s (IF = 700 mA) Q65113A6943 Full production
GW CSSRM4.HW-SJSM-H5H6-1 Φ<_sub>P = 4.80 ... 5.75 μmol/s (IF = 700 mA) Q65113A8900 Full production
GW CSSRM4.HW-SJSM-H7H8-1 Φ<_sub>P = 4.80 ... 5.75 μmol/s (IF = 700 mA) Q65113A8901 Full production
