OSRAM OSLON™ Submount CL, KW C2L5L1.TE

Ordering and shipping still possible
×
Ordering and shipping still possible

Description

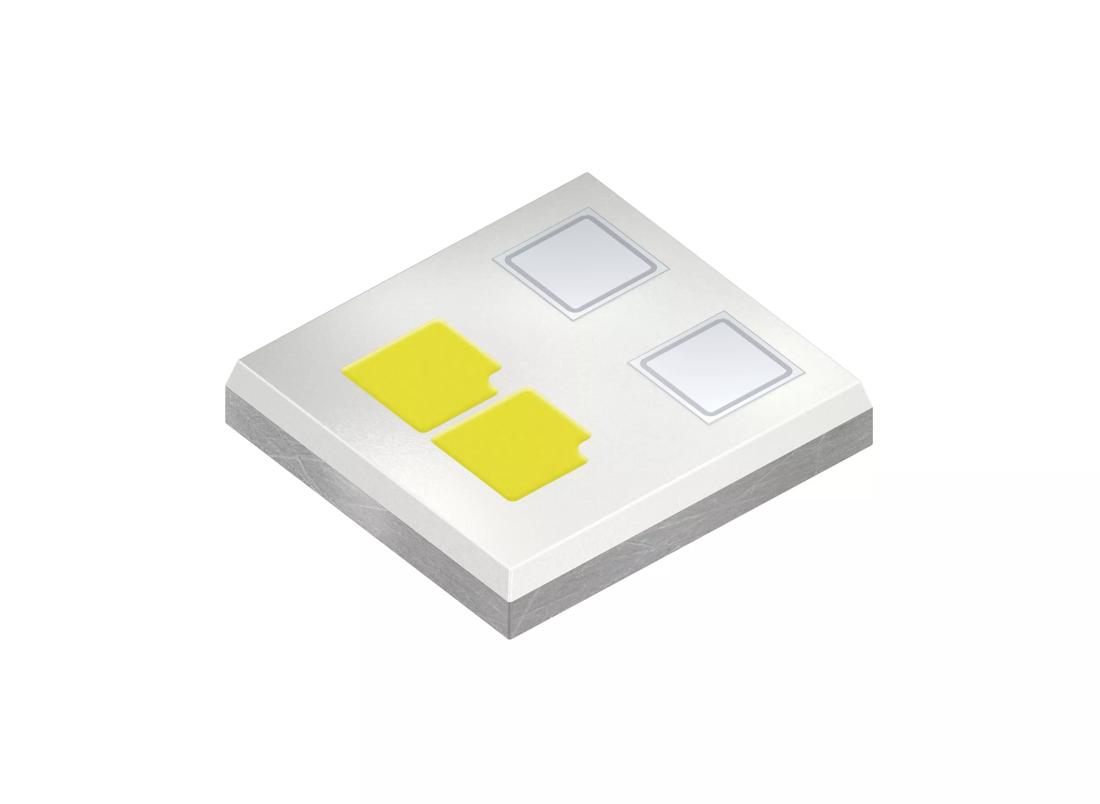

The OSLON Submount CL is able to meet a wide range of requirements in terms of output and adaptability to ambient conditions. It offers a uniform light pattern, thermal stability and great brightness. The high-flux LED is available with two and three chips.
Datasheet
KW C2L5L1.TE
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
Electrical power
6.3 W
Ultra High
Brightness
ΦV
780 lm
IV
259 cd
ΦE
2410 mW
IE
801 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
135 °C
Dimension
l
3.75 mm
w
3.5 mm
h
0.67 mm

Ordering information

Product Type Description Ordering code Availability
KW C2L5L1.TE-Z7P7-ebvF46fcbB46 ΦV = 560 ... 900 lm, Mountingmethode:Top (IF = 1000 mA) Q65112A4360 Ordering and shipping are still possible
KW C2L5L1.TE-Z7P9-ebvF46fcbB46 ΦV = 560 ... 1000 lm, Mountingmethode:Top (IF = 1000 mA) Q65112A9361 Ordering and shipping are still possible
