OSRAM OSLON® Submount CL, KW C3L5L1.TE

Discontinued
×
Discontinued

Description

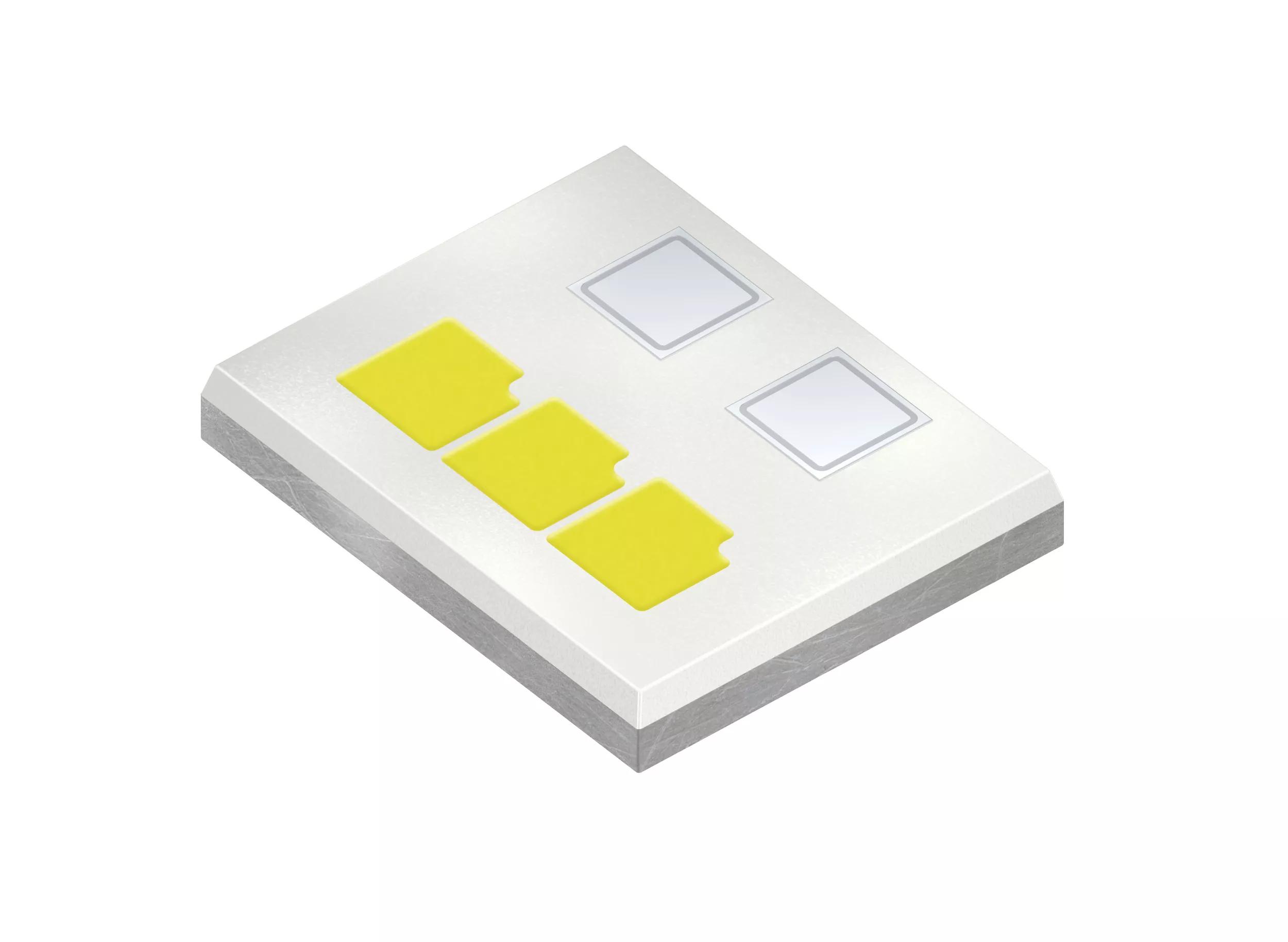

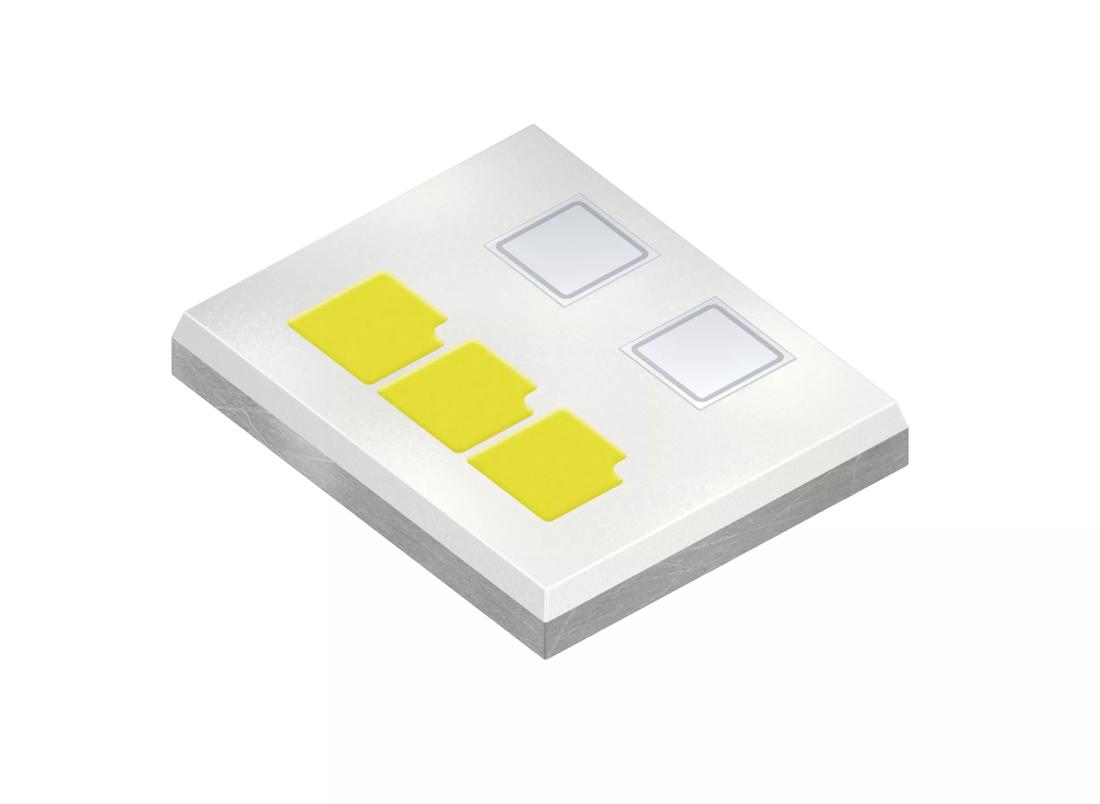

The OSLON Submount CL is able to meet a wide range of requirements in terms of output and adaptability to ambient conditions. It offers a uniform light pattern, thermal stability and great brightness. The high-flux LED is available with two and three chips.

Details

Parameters

Color of emission
White
Electrical power
9.3 W
Ultra High
Brightness
ΦV
1170 lm
IV
389 cd
ΦE
3610 mW
IE
1200 mW/sr
Beam angle
120 °
Operating temperature
Top min.
-40 °C
Top max.
135 °C
Dimension
l
4.6 mm
w
3.75 mm
h
0.67 mm

Ordering codes

Product Type Description Order No. Availability
KW C3L5L1.TE-Z6QF9-ebvF46fcbB46 ΦV = 849 ... 1490 lm, Mountingmethode:Top (IF = 1000 mA) Q65112A9362
KW C3L5L1.TE-Z6QF6-ebvF46fcbB46 ΦV = 849 ... 1250 lm, Mountingmethode:Top (IF = 1000 mA) Q65112A4359

Downloads

Datasheets

Application note

Tools

LightGuide

Calculate the effectiveness of an LED based on a selected light guide by showing the amount of incoupled, reflected and missed light rays.
