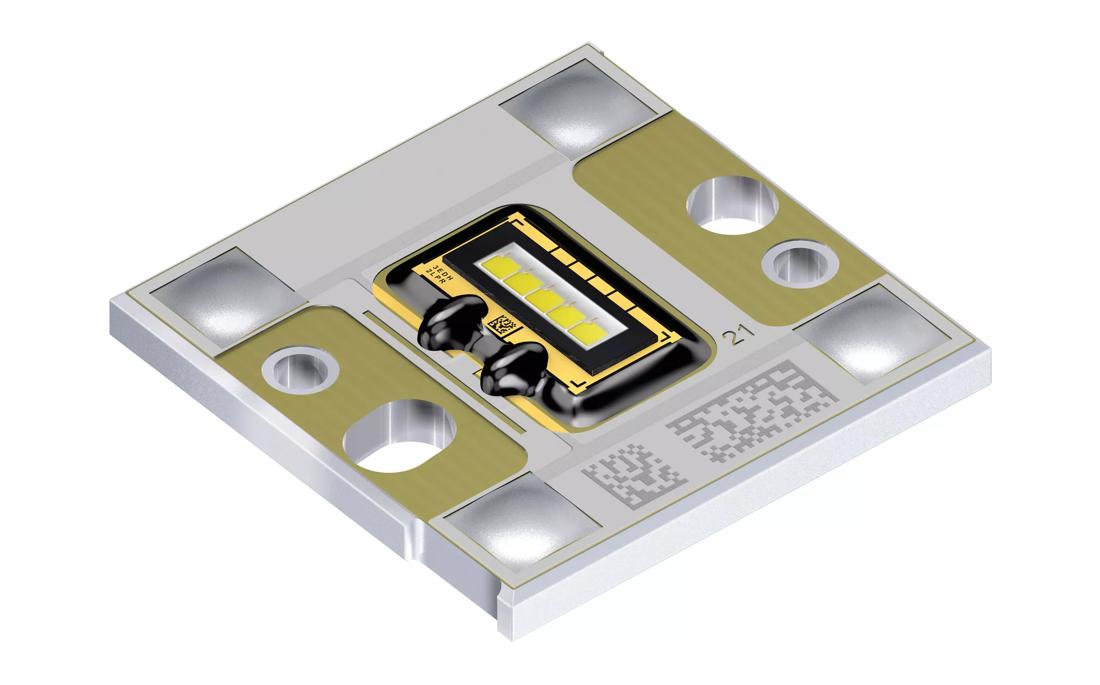

OSRAM OSRAM OSTAR® Headlamp Pro, LE UW U1A5 01

Name: OSRAM OSRAM OSTAR® Headlamp Pro, LE UW U1A5 01
Brand: ams-OSRAM AG

Discontinued

Description

OSRAM OSTAR Headlamp is designed for applications where high brightness is required. Due to a seamless white colour impression at a maximum brightness level and its scalable brightness.

Datasheet

Select & order

Replacement Products

OSRAM OSLON® Black Flat S, KW HLL531.TE

OSLON Black Flat S is able to meet a wide range of requirements. The SMT device is very stable, durable and can be used with standard processes. A new solder pad layout allows for high reliability and improved thermal management. The compact chips not only deliver high light output, they are also individually addressable with an ensured chip-to-chip contrast which makes this LED an ideal solution for Adaptive Driving Beam (ADB).

Details and Datasheet

Details

Parameters

Color of emission

White

Electrical power

16.0 W

Ultra High

Brightness

Φ_V

1750 lm

I_V

580 cd

Φ_E

5390 mW

I_E

1790 mW/sr

Beam angle

∢

120 °

Operating temperature

T_op min.

-40 °C

T_op max.

135 °C

Dimension

20.0 mm

2.41 mm

Application fields

Automotive & mobility Static forward lighting

Ordering codes

Product Type	Description	Order No.	Availability
LE UW U1A5 01-6R6S-ebvF68ebzB68	Φ_V = 1250 ... 2240 lm (I_F = 1000 mA)	Q65111A7561	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop. Buy From Distributors: Mouser Buy now Rochester Buy now
