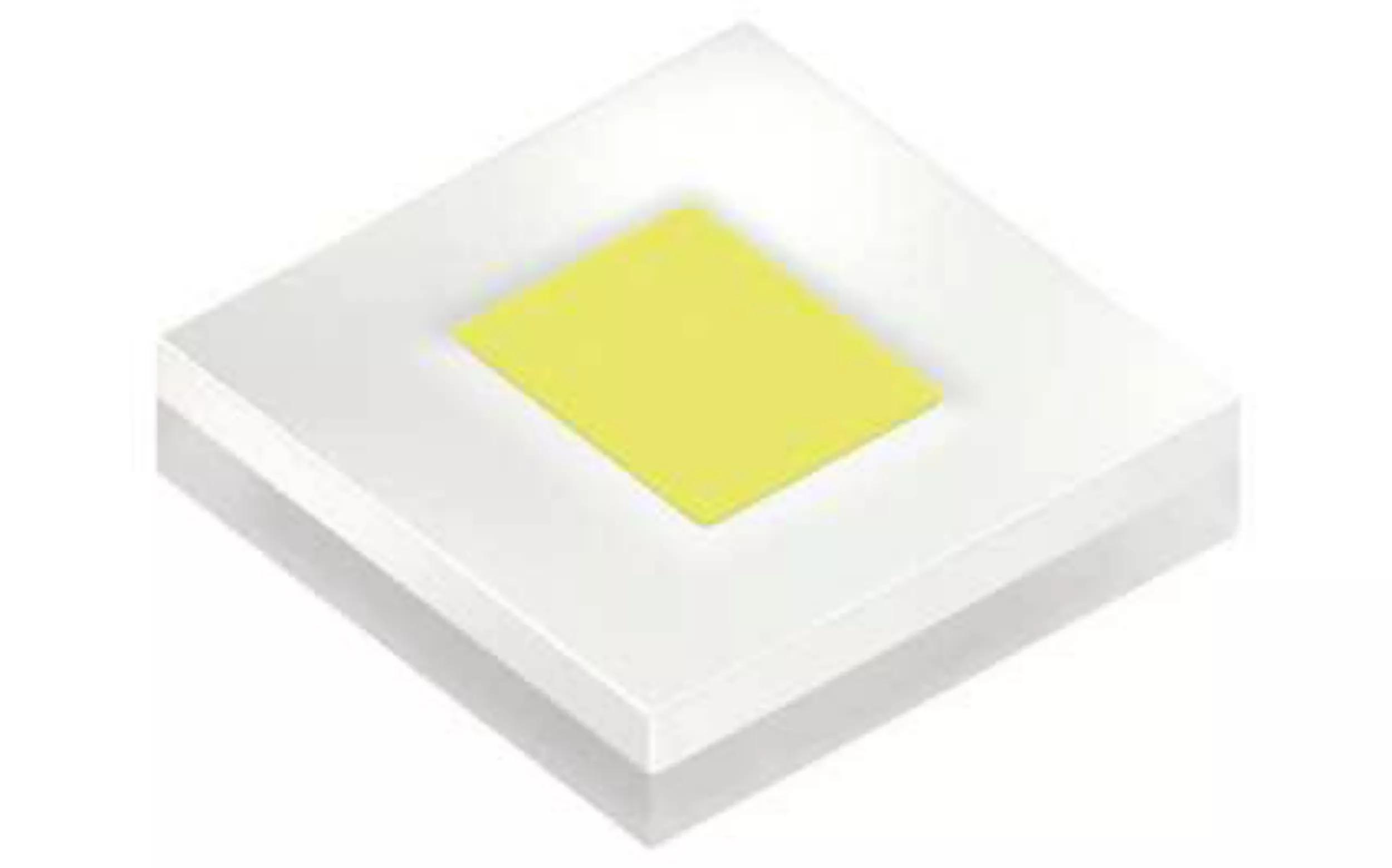

OSRAM OSRAM OSTAR™ Projection Compact, KW CSLPM1.TG

×

Description

Compact light source with isolated heat sink for improved heat dissipation and high current chip technology for increased light output.
Datasheet
KW CSLPM1.TG
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
Electrical power
4.2 W
High
Brightness
ΦV
515 lm
IV
171 cd
ΦE
1590 mW
IE
529 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
85 °C
Dimension
l
3.0 mm
w
3.0 mm
h
0.75 mm

Ordering information

Product Type Description Ordering code Availability
KW CSLPM1.TG-8N7P-ebvF46fcbB46 ΦV = 400 ... 630 lm (IF = 1400 mA) Q65111A9756 Full production

Downloads

Datasheets
KW CSLPM1.TG · Datasheet · PDF · en_US

Application note
Projection with LED light sources · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Chemical compatibility of LEDs · General information · PDF · en_US
Measurement, calibration and measurement uncertainty of LEDs · General information · PDF · en_US
Fundamentals of LED handling · Handling recommendations · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Handling of silicon resin LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Details on lead-free reflow soldering of LEDs · Soldering and processing · PDF · en_US
Ceramic LEDs — Details on handling and processing · Soldering and processing · PDF · en_US
Processing of SMD LEDs · Soldering and processing · PDF · en_US
Recommended pick-and-place tools of LEDs · Soldering and processing · PDF · en_US
PCB technologies for LED applications · Thermal management · PDF · en_US
Package related thermal resistance of LEDs · Thermal management · PDF · en_US
LED solder point temperature measurement with thermocouples · Thermal management · PDF · en_US
Thermal management of LED light sources · Thermal management · PDF · en_US
The thermal measurement point of LEDs · Thermal management · PDF · en_US
Behaviour of InGaN LEDs in parallel circuits · Electrical design · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Dimming InGaN LEDs · Electrical design · PDF · en_US
Dimming LEDs with respect to grouping current · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US
LED diagnosis in automotive applications · Electrical design · PDF · en_US

Resources
CAD Data · CAD Data · FOLDER
Electrical Simulation · Electrical Simulation · FOLDER
Optical Simulation · Optical Simulation · FOLDER

Images

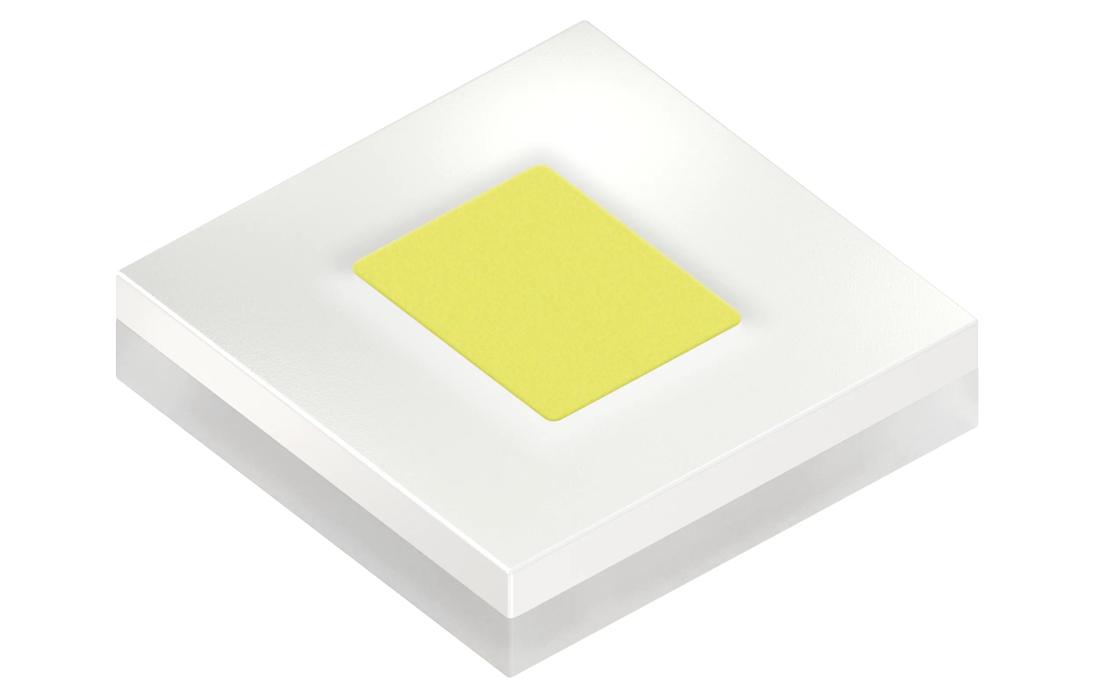

KW CSLPM1.TG 42x26mm cmyk · Images · TIF
