Details
Parameters
Color of emission
White
CRI
90
Electrical power
26
W
Ultra High
Brightness
ΦV
3390
lm
IV
1150
cd
ΦE
11400
mW
IE
3890
mW/sr
Beam angle
∢
120
°
Operating temperature
Top
min.
-40
°C
Top
max.
105
°C
Dimension
l
17.9
mm
w
17.9
mm
h
1.5
mm
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|

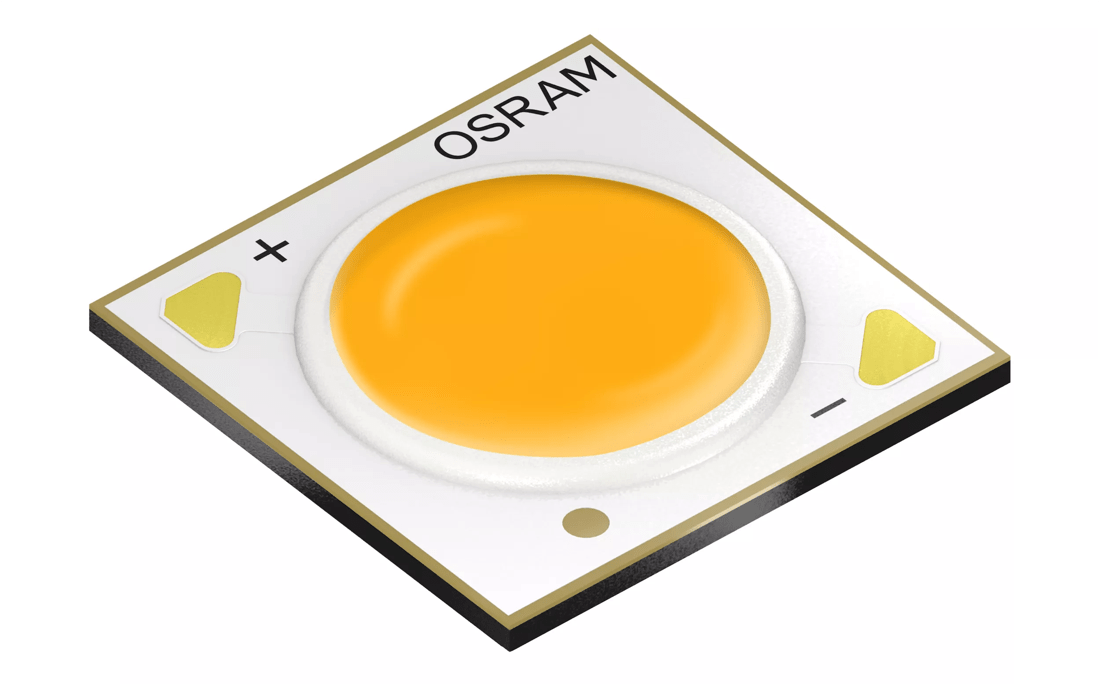

| GW KAMJBA.CM-SUTT-30S3 | ΦV = 2590 ... 4190 lm, 3000 K (IF = 700 mA) | Q65113A0951 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
Digi-Key
Buy now
|
| GW KAMJBA.CM-SUTT-35S3 | ΦV = 2590 ... 4190 lm, 3500 K (IF = 700 mA) | Q65113A0949 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
Digi-Key
Buy now
|
| GW KAMJBA.CM-SUTT-50S3 | ΦV = 2590 ... 4190 lm, 5000 K (IF = 700 mA) | Q65113A0948 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
|
| GW KAMJBA.CM-SUTT-40S3 | ΦV = 2590 ... 4190 lm, 4000 K (IF = 700 mA) | Q65113A0950 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
By clicking this button you will be transferred to the dedicated site of our logistics partner, Mouser Electronics where your purchase can be completed. Your payment and order details provided for this purpose will be shared between Mouser Electronics and ams OSRAM. More details on the data processing in question can be found in the Privacy Policy of the Mouser shop.
Buy From Distributors:
Digi-Key
Buy now
|
