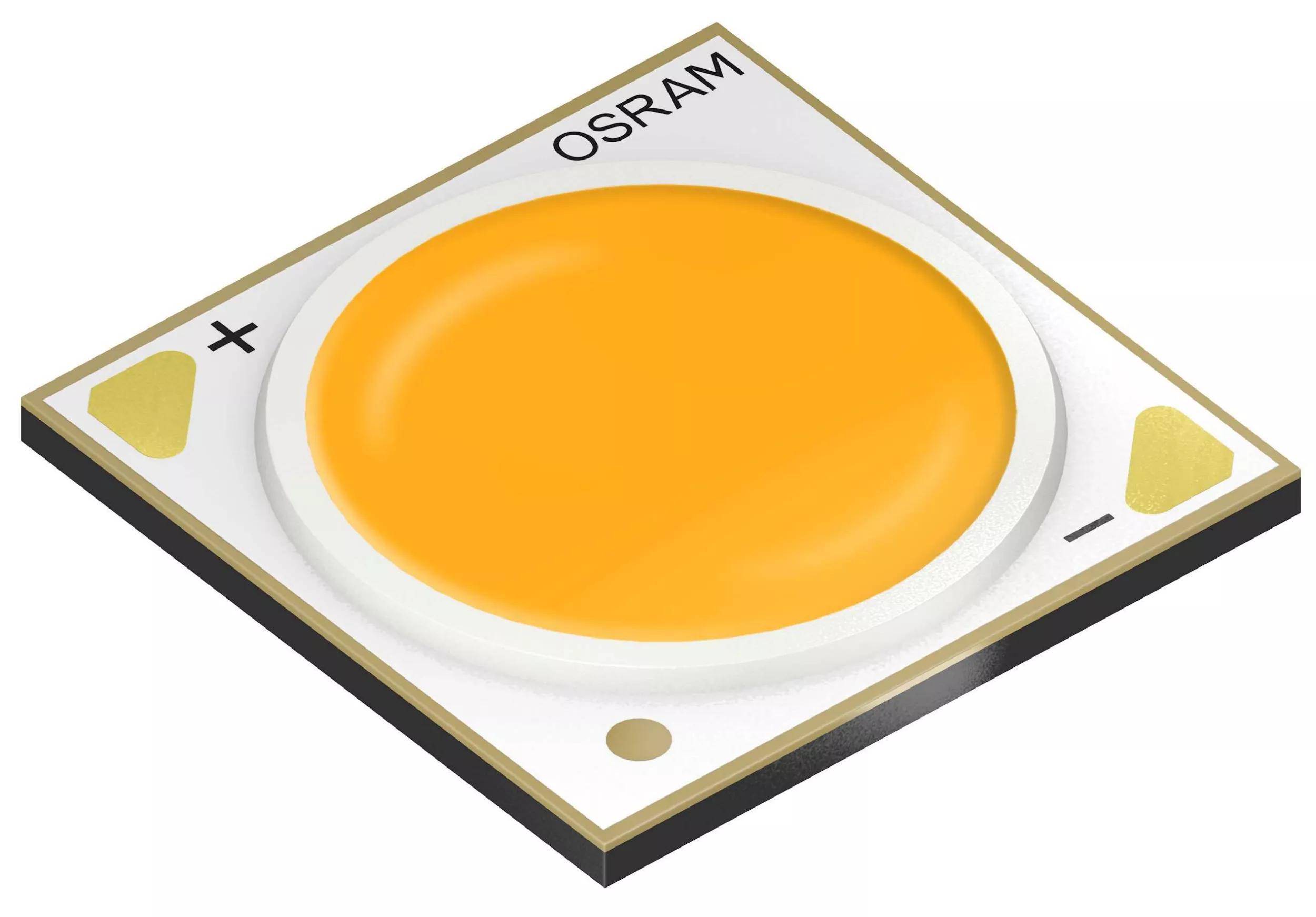

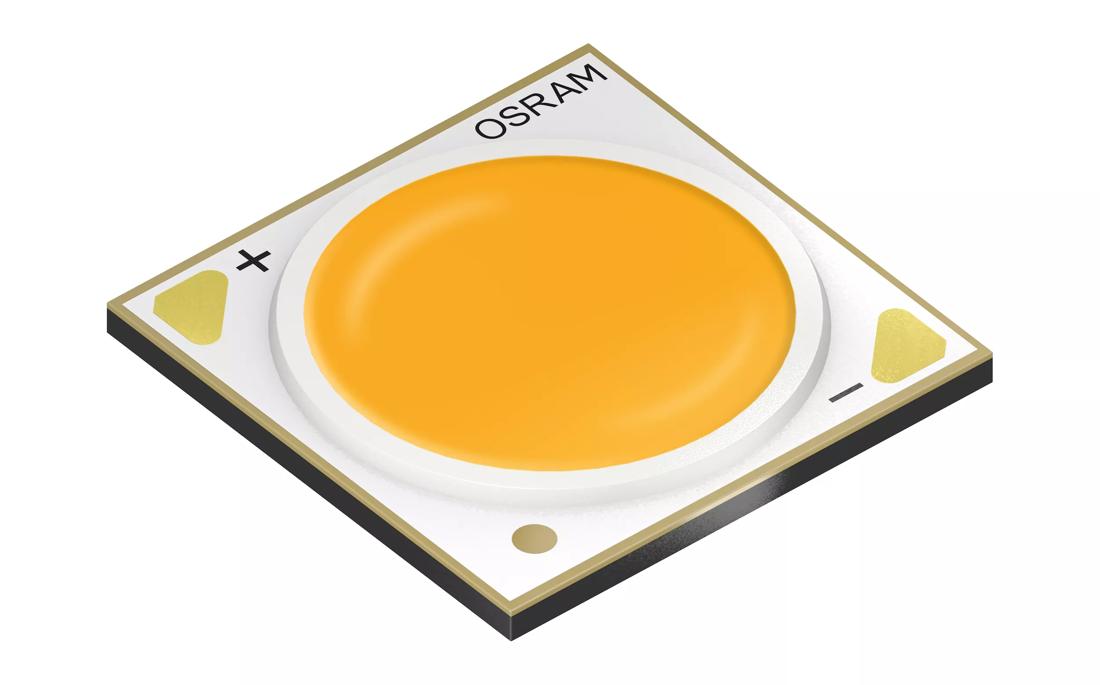

OSRAM SOLERIQ™ S 14, GW KAPLBB.GM

×

Description

The SOLERIQ™ S products were specifically designed for applications requiring large flux packages out of a compact area.
Datasheet
GW KAPLBB.GM
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
CRI
96
Electrical power
32.0 W
Ultra High
Brightness
ΦV
3960 lm
IV
1490 cd
ΦE
14400 mW
IE
5440 mW/sr
Beam angle
∢
110 °
Operating temperature
Top min.
-40 °C
Top max.
105 °C
Dimension
l
17.9 mm
w
17.9 mm
h
1.15 mm

Application fields

Lighting Indoor lighting

Ordering information

Product Type Description Ordering code Availability
GW KAPLBB.GM-F1-27A2D2 ΦV = 3501.0 ... 3869.0 lm, 2700 K (IF = 900 mA) Q65113A7095 Full production
GW KAPLBB.GM-F10-50A2D2 ΦV = 3980.0 ... 4410.0 lm, 5000 K (IF = 900 mA) Q65113A9296 Full production
GW KAPLBB.GM-F2-30A2D2 ΦV = 3660.0 ... 4046.0 lm, 3000 K (IF = 900 mA) Q65113A7093 Full production
GW KAPLBB.GM-F3-35A2D2 ΦV = 3674.0 ... 4060.0 lm, 3500 K (IF = 900 mA) Q65113A7094 Full production
GW KAPLBB.GM-F4-40A2D2 ΦV = 3904.0 ... 4314.0 lm, 4000 K (IF = 900 mA) Q65113A7092 Full production
