OSRAM SOLERIQ™ S 6, GW KADEBT.CM

×

Description

The SOLERIQ™ S products were specifically designed for applications requiring large flux packages out of a compact area.
Datasheet
GW KADEBT.CM
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
CRI
90
Electrical power
5.5 W
5.5 W
High
High
Brightness
ΦV
648 lm
IV
220 cd
ΦE
2270 mW
IE
774 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
105 °C
Dimension
l
13.3 mm
w
13.3 mm
h
1.65 mm

Application fields

Lighting Indoor lighting

Ordering information

Product Type Description Ordering code Availability
GW KADEBT.CM-A6+A23-50S3+30S3 ● ΦV = 680.0 ... 785.0 lm (IF = 150 mA)
● ΦV = 595.0 ... 690.0 lm (IF = 150 mA), 5000 K 		Q65115A2509 Full production
GW KADEBT.CM-A6+A5-40S3+27S3 ● ΦV = 680.0 ... 785.0 lm (IF = 150 mA)
● ΦV = 595.0 ... 690.0 lm (IF = 150 mA), 4000 K 		Q65113A7571 Full production
GW KADEBT.CM-A7+A5-65S3+27S3 ● ΦV = 690.0 ... 800.0 lm (IF□=□150□mA)
● ΦV = 595.0 ... 690.0 lm (IF□=□150□mA), 6500 K 		Q65113A7573 Full production

Downloads

Datasheets
GW KADEBT.CM · Datasheet · PDF · en_US

Application note
Light quality — White light parameters · Product related · PDF · en_US
Light quality — Color metrics · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Chemical compatibility of LEDs · General information · PDF · en_US
Measurement, calibration and measurement uncertainty of LEDs · General information · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Handling of silicon resin LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Details on lead-free reflow soldering of LEDs · Soldering and processing · PDF · en_US
Manual lead-free soldering of LEDs · Soldering and processing · PDF · en_US
LED solder point temperature measurement with thermocouples · Thermal management · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Determination of resistances for brightness compensation · Electrical design · PDF · en_US
Dimming InGaN LEDs · Electrical design · PDF · en_US
LED driving technology for long term flexibility · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US

Resources
CAD Data · CAD Data · FOLDER
Electrical Simulation · Electrical Simulation · FOLDER
Optical Simulation · Optical Simulation · FOLDER

Images

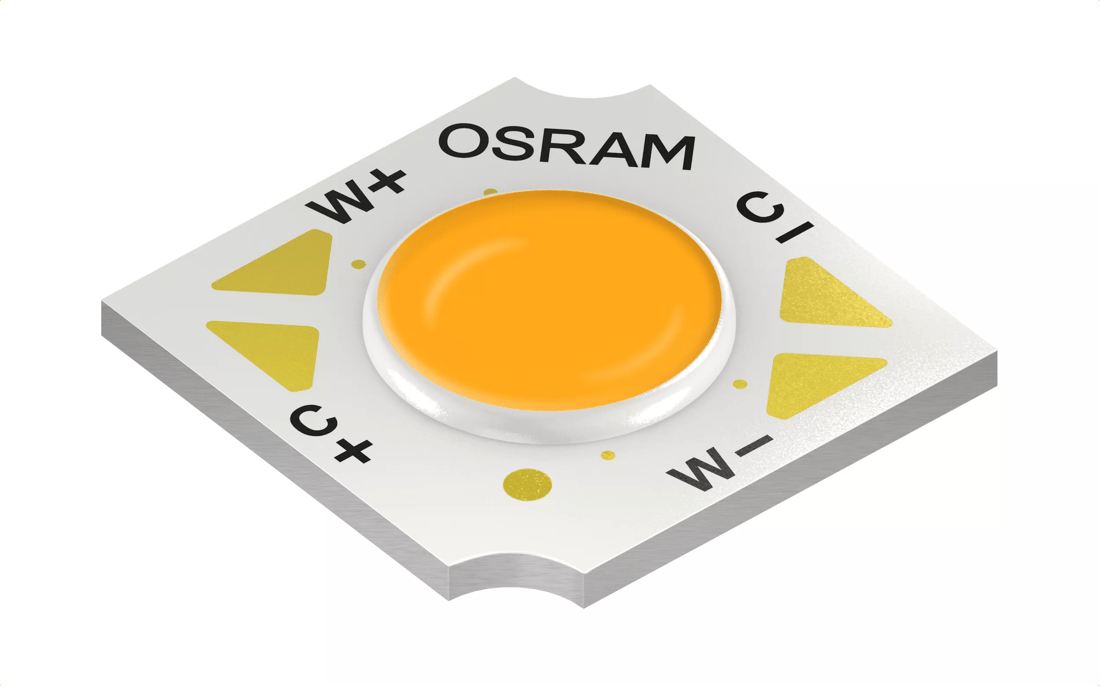

GW_KADEBT-CM_42x26mm_cmyk · Images · TIF
