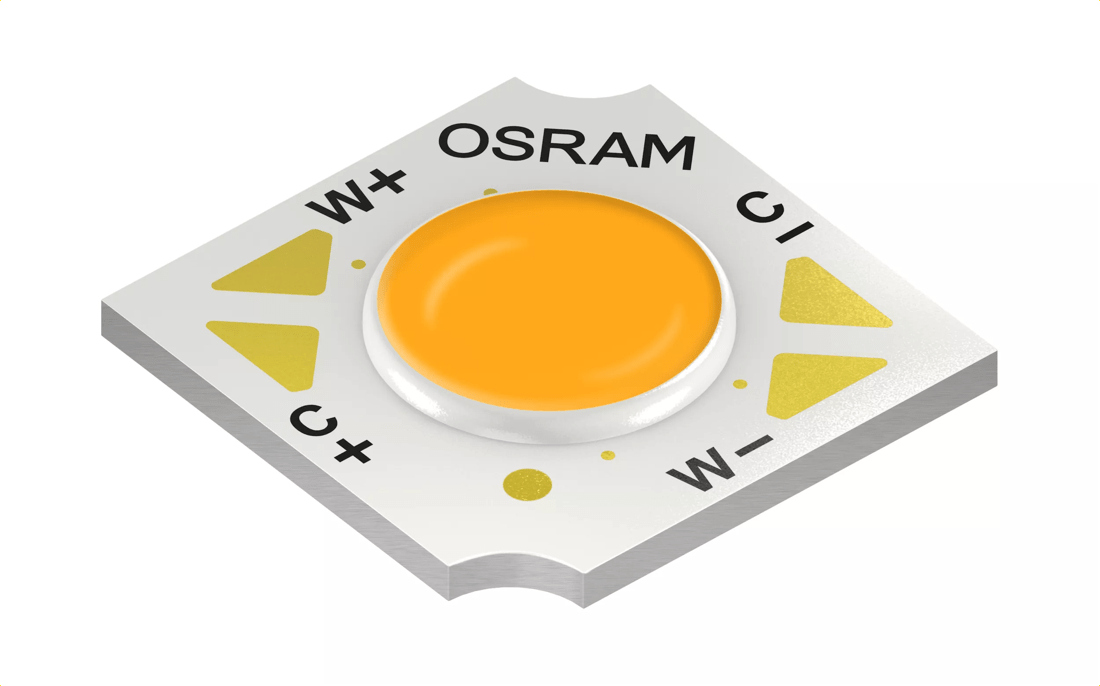

OSRAM SOLERIQ™ S 6, GW KADFBT.CM

Description

The SOLERIQ™ S products were specifically designed for applications requiring large flux packages out of a compact area.

Color of emission

White

CRI

Electrical power

9.1 W

Ultra High

Brightness

Φ_V

990 lm

I_V

339 cd

Φ_E

3440 mW

I_E

1180 mW/sr

Beam angle

∢

120 °

Operating temperature

T_op min.

-40 °C

T_op max.

105 °C

Dimension

13.3 mm

1.65 mm

Product Type	Description	Ordering code	Availability
GW KADFBT.CM-B5+B22-50S3+30S3	● Φ_V = 1070.0 ... 1235.0 lm (I_F = 250 mA) ● Φ_V = 920.0 ... 1060.0 lm (I_F = 250 mA), 5000 K	Q65115A2511	Full production
GW KADFBT.CM-B5+B4-40S3+27S3	● Φ_V = 1070.0 ... 1235.0 lm (I_F = 250 mA) ● Φ_V = 920.0 ... 1060.0 lm (I_F = 250 mA), 4000 K	Q65113A7572	Full production
GW KADFBT.CM-B6+B4-65S3+27S3	● Φ_V = 1095.0 ... 1260.0 lm (I_F□=□250□mA) ● Φ_V = 920.0 ... 1060.0 lm (I_F□=□250□mA), 6500 K	Q65113A7578	Full production
