OSRAM SOLERIQ™ S 6, GW KADGBB.GM

×

Description

The SOLERIQ™ S products were specifically designed for applications requiring large flux packages out of a compact area.
Datasheet
GW KADGBB.GM
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
CRI
96
Electrical power
14.0 W
Ultra High
Brightness
ΦV
1490 lm
IV
584 cd
ΦE
5480 mW
IE
2140 mW/sr
Beam angle
∢
110 °
Operating temperature
Top min.
-40 °C
Top max.
105 °C
Dimension
l
13.3 mm
w
13.3 mm
h
1.5 mm

Application fields

Lighting Indoor lighting

Ordering information

Product Type Description Ordering code Availability
GW KADGBB.GM-C1-27A2D2 ΦV = 1346.0 ... 1488.0 lm, 2700 K (IF = 400 mA) Q65113A7080 Full production
GW KADGBB.GM-C13-50A2D2 ΦV = 1520.0 ... 1695.0 lm, 5000 K (IF = 400 mA) Q65113A9299 Full production
GW KADGBB.GM-C2-30A2D2 ΦV = 1372.0 ... 1516.0 lm, 3000 K (IF = 400 mA) Q65113A7079 Full production
GW KADGBB.GM-C3-35A2D2 ΦV = 1420.0 ... 1570.0 lm, 3500 K (IF = 400 mA) Q65113A7078 Full production
GW KADGBB.GM-C4-40A2D2 ΦV = 1483.0 ... 1639.0 lm, 4000 K (IF = 400 mA) Q65113A7077 Full production

Downloads

Datasheets
GW KADGBB.GM · Datasheet · PDF · en_US

Application note
Light quality — White light parameters · Product related · PDF · en_US
Light quality — Color metrics · Product related · PDF · en_US
Customer complaint management — Details on return shipments for failure analysis request (FAR) · General information · PDF · en_US
Details on photobiological safety of LED light sources · General information · PDF · en_US
Importing rayfiles and ray-measurement files of LEDs · General information · PDF · en_US
Chemical compatibility of LEDs · General information · PDF · en_US
Measurement, calibration and measurement uncertainty of LEDs · General information · PDF · en_US
ESD protection while handling LEDs · Handling recommendations · PDF · en_US
Handling of silicon resin LEDs · Handling recommendations · PDF · en_US
Dry pack information · Handling recommendations · PDF · en_US
Details on lead-free reflow soldering of LEDs · Soldering and processing · PDF · en_US
Manual lead-free soldering of LEDs · Soldering and processing · PDF · en_US
LED solder point temperature measurement with thermocouples · Thermal management · PDF · en_US
Comparison of simple LED circuits for low power LEDs · Electrical design · PDF · en_US
Determination of resistances for brightness compensation · Electrical design · PDF · en_US
Dimming InGaN LEDs · Electrical design · PDF · en_US
LED driving technology for long term flexibility · Electrical design · PDF · en_US
The basic principles of Electrical Overstress (EOS) · Electrical design · PDF · en_US

Resources
CAD Data · CAD Data · FOLDER
Electrical Simulation · Electrical Simulation · FOLDER
Optical Simulation · Optical Simulation · FOLDER

Images

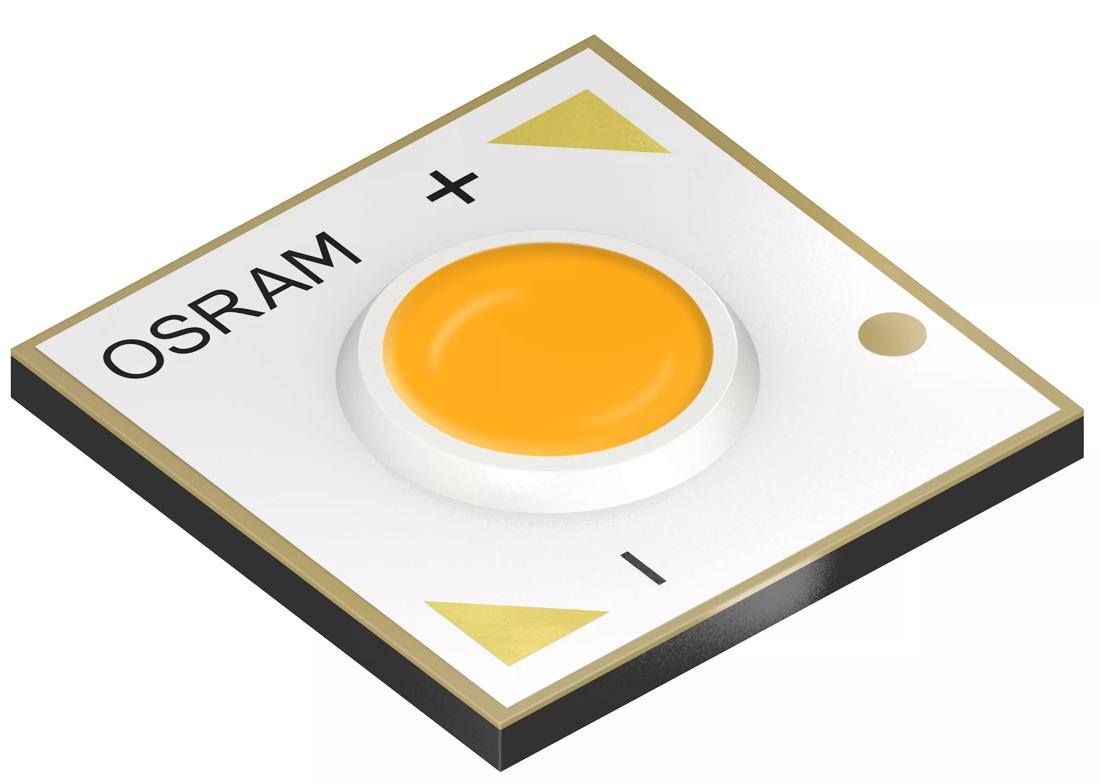

GW_KADGBB-GM_ver2 · Images · JPG
