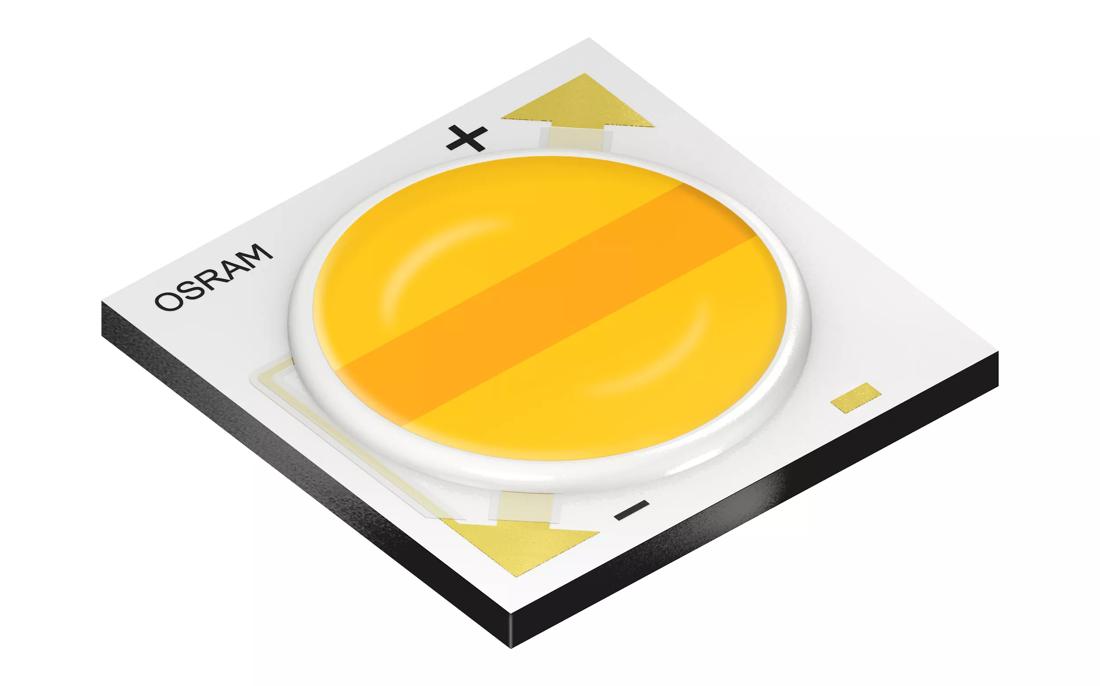

OSRAM SOLERIQ™ S 9, GW CAFGL1.HM

×

Description

The SOLERIQ™ S products were specifically designed for applications requiring large flux packages out of a compact area.
Datasheet
GW CAFGL1.HM
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
CRI
90
Electrical power
13.0 W
Ultra High
Brightness
ΦV
1520 lm
IV
496 cd
ΦE
5320 mW
IE
1740 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
105 °C
Dimension
l
13.5 mm
w
13.5 mm
h
1.4 mm

Application fields

Lighting Indoor lighting

Ordering information

Product Type Description Ordering code Availability
GW CAFGL1.HM-RSRT-27S3 ΦV = 1400 ... 1640 lm, 2700 K (IF = 360 mA) Q65112A8957 Full production
