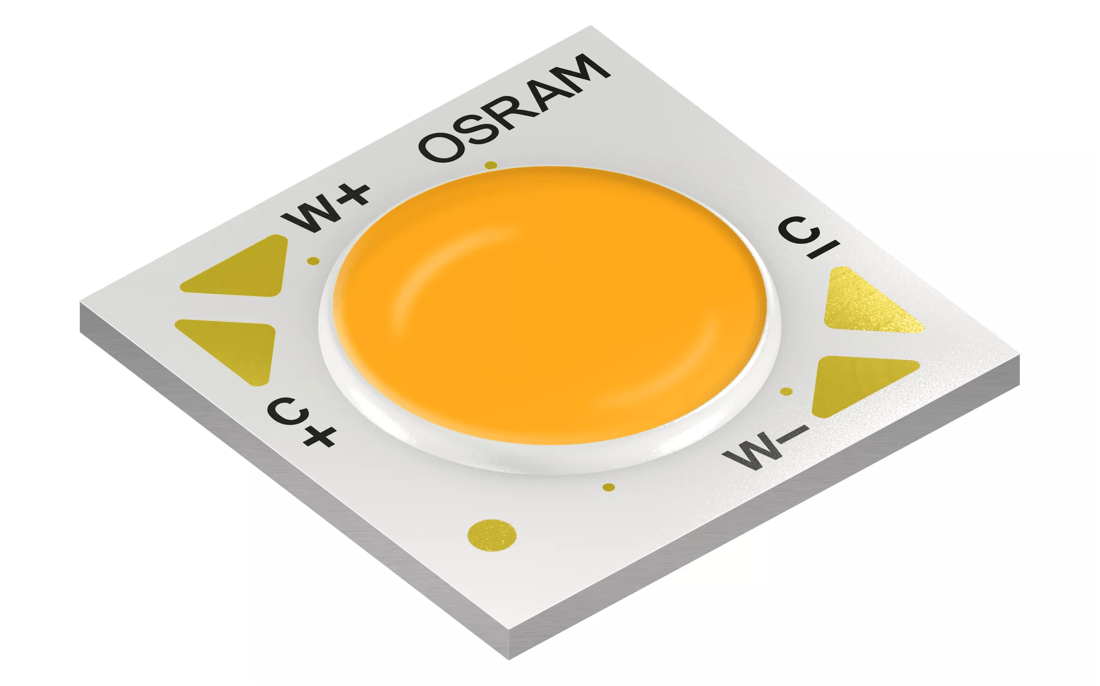

OSRAM SOLERIQ® S 9, GW KAFGBT.CM

OSRAM SOLERIQ® S 9, GW KAFGBT.CM
×

Description

The SOLERIQ® S products were specifically designed for applications requiring large flux packages out of a compact area.
Datasheet
GW KAFGBT.CM
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
CRI
90
Electrical power
11.0 W
11.0 W
Ultra High
Ultra High
Brightness
ΦV
1490 lm
IV
507 cd
ΦE
5040 mW
IE
1720 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
105 °C
Dimension
l
15.8 mm
w
15.8 mm
h
1.65 mm

Application fields

Lighting Indoor lighting

Ordering codes

Product Type Description Order No. Availability
GW KAFGBT.CM-C7+C5-65S3+27S3 ● ΦV = 1390.0 ... 1600.0 lm (IF□=□300□mA)
● ΦV = 1210.0 ... 1400.0 lm (IF□=□300□mA), 6500 K 		Q65113A7579
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
GW KAFGBT.CM-C6+C5-40S3+27S3 ● ΦV = 1375.0 ... 1585.0 lm (IF□=□300□mA)
● ΦV = 1210.0 ... 1400.0 lm (IF□=□300□mA), 4000 K 		Q65113A7576
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
