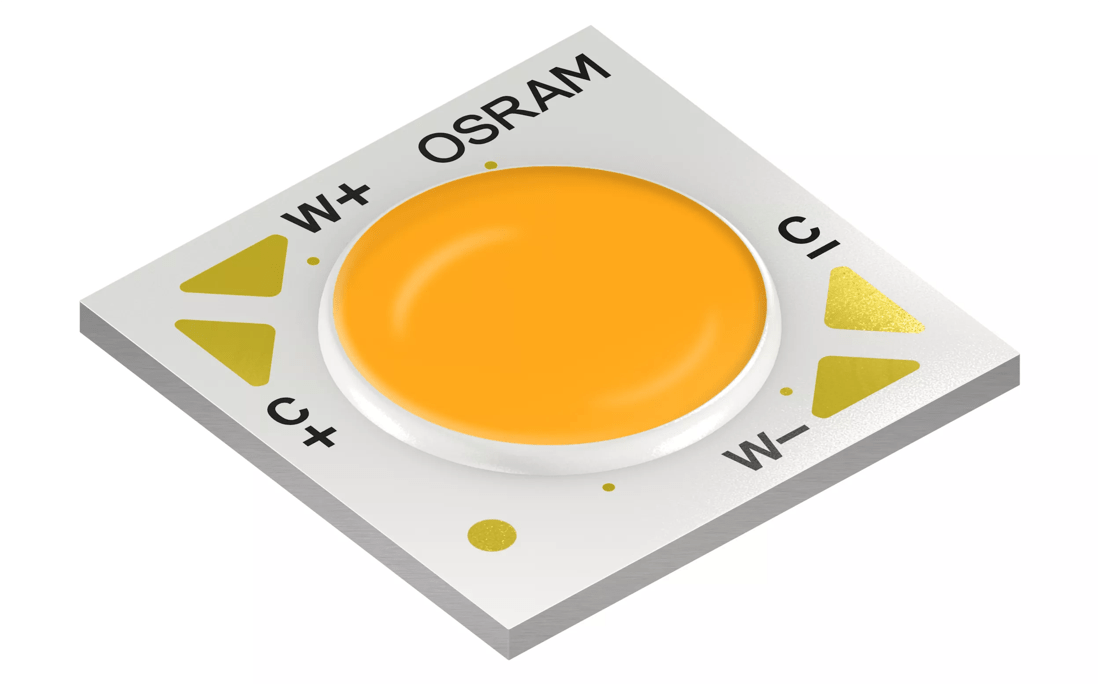

OSRAM SOLERIQ® S 9, GW KAFHBT.CM

OSRAM SOLERIQ® S 9, GW KAFHBT.CM
×

Description

The SOLERIQ® S products were specifically designed for applications requiring large flux packages out of a compact area.
Datasheet
GW KAFHBT.CM
English
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
CRI
90
Electrical power
18.0 W
18.0 W
Ultra High
Ultra High
Brightness
ΦV
2320 lm
IV
792 cd
ΦE
7690 mW
IE
2630 mW/sr
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
105 °C
Dimension
l
15.8 mm
w
15.8 mm
h
1.65 mm

Application fields

Lighting Indoor lighting

Ordering codes

Product Type Description Order No. Availability
GW KAFHBT.CM-D7+D5-65S3+27S3 ● ΦV = 2170 ... 2500 lm (IF□=□500□mA)
● ΦV = 1805 ... 2080 lm (IF□=□500□mA), 6500 K 		Q65113A7574
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
GW KAFHBT.CM-D6+D5-40S3+27S3 ● ΦV = 2135.0 ... 2465.0 lm (IF□=□500□mA)
● ΦV = 1805 ... 2080 lm (IF□=□500□mA), 4000 K 		Q65113A7577
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
Request product
