OSRAM SYNIOS™ E1515, KW SIURA1.KD

New
×
New

Description

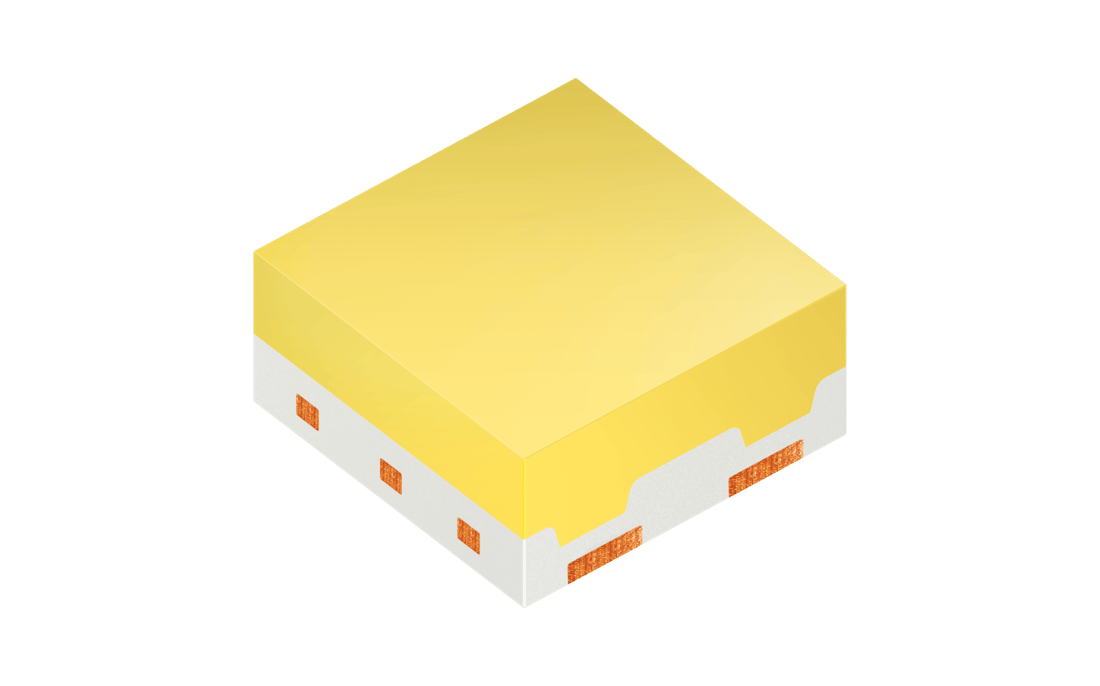

SYNIOS™ E1515 Top (KW SIURA1.KD) is a compact 1.5 × 1.5 mm white LED designed for high resolution local dimming LCD head up display backlighting in automotive applications. Its small light emitting area enables tight pixel pitch and high contrast ratios. Utilizing KSF phosphor technology, it provides an extended color gamut. The 5.5 V dual junction is designed to minimize thermal losses, while supporting high system efficacy of up to 127 lm/W. The device is AEC-Q102 qualified and engineered to meet demanding automotive reliability requirements.
Datasheet
KW SIURA1.KD
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
Electrical power
0.17 W
Mid
Brightness
ΦV
21.5 lm
IV
5.19 cd
ΦE
80.7 mW
IE
19.5 mW/sr
Operating temperature
Top min.
-40 °C
Top max.
110 °C
Dimension
l
1.5 mm
w
1.5 mm
h
1.42 mm
Device qualification
AEC-Q102

Ordering information

Product Type Description Ordering code Availability
KW SIURA1.KD-FQHP-DE20DS60-HM-N4S4 ΦV = 12.10 ... 30.40 lm (IF = 30 mA) Q65115A2323 Pre-production
