OSRAM SYNIOS® E2314, KW DNLS31.RA

Name: OSRAM SYNIOS® E2314, KW DNLS31.RA
Brand: ams-OSRAM AG

Product features

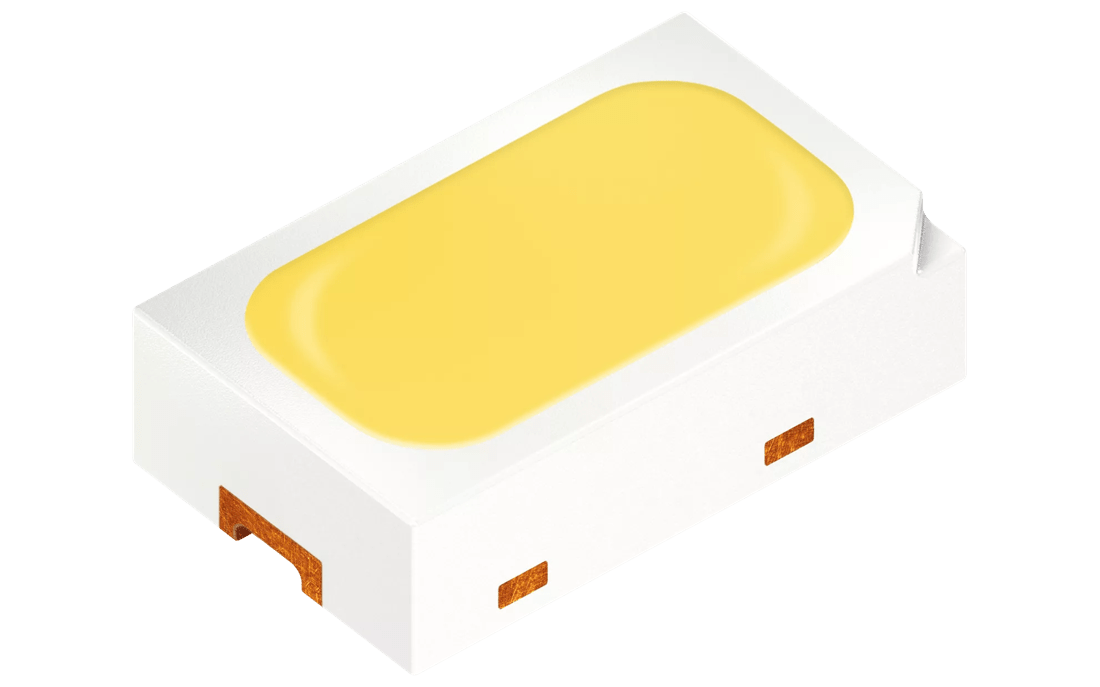

The footprint of the SYNIOS E2314 is optimized for backlighting lightguides with small widths. The combination of volume casting and volume emitter LED chip offers a very homogenous radiation in the mid power class.

Datasheet Choose product

Application note Optical simulation CAD files Electrical simulation Tools Contact us Support

Downloads

Datasheet

KW DNLS31.RA

Datasheet / 1.9 MB

EN CN

Application note

Light guides

Product Related / 1.0 MB

Chemical compatibility of LEDs

General Information / 2.0 MB

Customer complaint management — Details on return shipments for failure analysis request (FAR)

General Information / 1.7 MB

Details on photobiological safety of LED light sources

General Information / 1.4 MB

Dry pack information

General Information / 1.2 MB

Importing rayfiles and ray-measurement files of LEDs

General Information / 903.2 KB

LED 可靠性与使用寿命

General Information / 1.7 MB

Lebensdauer und Zuverlässigkeit von LEDs

General Information / 1.9 MB

Long-term availability management

General Information / 1.0 MB

Preventing LED failures caused by corrosive materials

General Information / 1.2 MB

Reliability and lifetime of LEDs

General Information / 1.9 MB

ESD protection while handling LEDs

Processing and Handling / 1.8 MB

Fundamentals of LED handling

Processing and Handling / 1.3 MB

Further details on lead free reflow soldering of LEDs

Processing and Handling / 1.4 MB

Handling of silicon resin LEDs

Processing and Handling / 496.2 KB

LED 无铅回流焊的详细介绍

Processing and Handling / 1.7 MB

Measuring of the temperature profile during the reflow solder process

Processing and Handling / 1.2 MB

Processing of SMD LEDs

Processing and Handling / 4.5 MB

Weitere Hinweise zum bleifrei Reflow-Löten von LEDs

Processing and Handling / 1.4 MB

Comparison of simple LED circuits for low power LEDs

Driving of LEDs / 1.2 MB

Dimming LEDs with respect to grouping current

Driving of LEDs / 1,007.0 KB

The basic principles of Electrical Overstress (EOS)

Driving of LEDs / 1.6 MB

Package related thermal resistance of LEDs

Thermal Management / 2.1 MB

Temperature measurement with thermocouples

Thermal Management / 3.9 MB

Thermal management of LED light sources

Thermal Management / 1.9 MB

Measurement, calibration and measurement uncertainty of LEDs

Measurement / 2.5 MB

欧司朗光电半导体有限公司 LED 的测量、

Measurement / 2.4 MB

Optical simulation

Optical Simulation

Optical simulation

Download

CAD files

CAD Data

CAD files

Download

Electrical simulation

Electrical Simulation

Electrical simulation

Download

Ordering codes

Product Type	Description	Order No.	Availability
KW DNLS31.RA-6G7H-FK0PM0-22C2	Φ_V = 20.1 ... 40.0 lm (I_F = 80 mA)	Q65111A9004	Status information Full production Pre-production Not planned for new design Ordering and shipping are still possible Discontinued Buy now	Order now Mouser Buy now

Tools

LightGuide

Calculate the effectiveness of an LED based on a selected light guide by showing the amount of incoupled, reflected and missed light rays.

Open LightGuide
