OSRAM SYNIOS® E4014, KW DPLS34.KD

Name: OSRAM SYNIOS® E4014, KW DPLS34.KD
Brand: ams-OSRAM AG

Product features

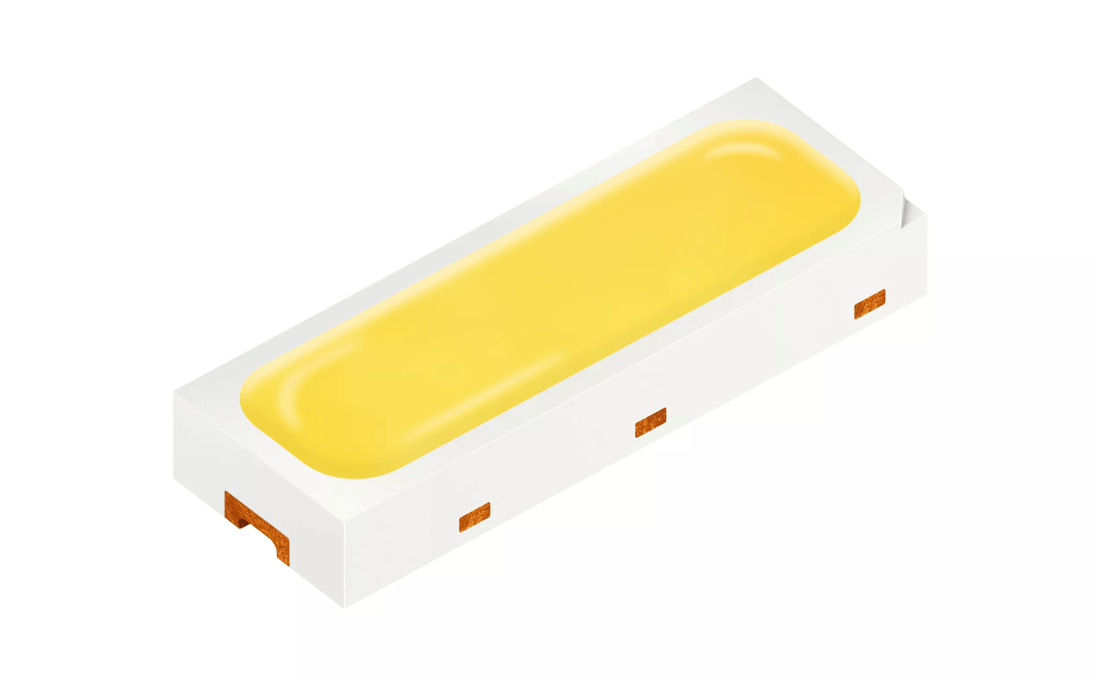

The low-profile rectangular shape of SYNIOS E4014 enables the light from this LED to be injected into light guides so that a wide range of design ideas can be realized. These mid-power light emitting diodes also have an impressively robust plastic package, a particularly uniform distribution of light and an excellent price performance ratio. The LEDs are intended primarily for lighting systems in vehicles and displays.
