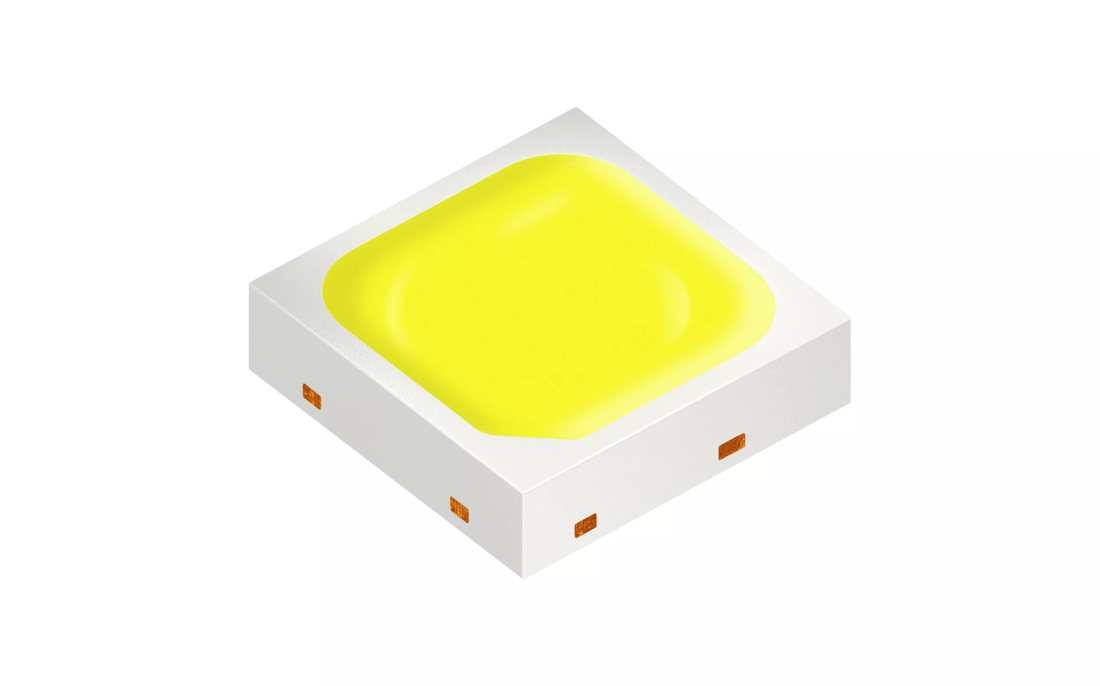

OSRAM SYNIOS™ S2222, KW DDLM32.EH

×

Description

The square package with just 2mm outline combines best performance with a small footprint for environments where improved corrosion robustness is needed. A centralized chip allows an easy integration into optical systems.
Datasheet
KW DDLM32.EH
English
Download
Chinese
Download
Select & order
Contact us Support

Details

Parameters

Color of emission
White
CRI
80
Electrical power
0.29 W
Mid
Brightness
ΦV
49 lm
Beam angle
∢
120 °
Operating temperature
Top min.
-40 °C
Top max.
110 °C
Dimension
l
2.2 mm
w
2.2 mm
h
0.65 mm

Ordering information

Product Type Description Ordering code Availability
KW DDLM32.EH-HUJS-A838-K1M2 ΦV = 41.9 ... 61.0 lm, 2700 K (IF = 100 mA) Q65113A5718 Full production
KW DDLM32.EH-HUJT-A131-K1M2 ΦV = 41.9 ... 65.8 lm, 6500 K (IF = 100 mA) Q65113A5726 Full production
KW DDLM32.EH-HUJT-A232-K1M2 ΦV = 41.9 ... 65.8 lm, 5700 K (IF = 100 mA) Q65113A5725 Full production
KW DDLM32.EH-HUJT-A333-K1M2 ΦV = 41.9 ... 65.8 lm, 5000 K (IF = 100 mA) Q65113A5724 Full production
KW DDLM32.EH-HUJT-A434-K1M2 ΦV = 41.9 ... 65.8 lm, 4500 K (IF = 100 mA) Q65113A5723 Full production
KW DDLM32.EH-HUJT-A535-K1M2 ΦV = 41.9 ... 65.8 lm, 4000 K (IF = 100 mA) Q65113A5722 Full production
KW DDLM32.EH-HUJT-A636-K1M2 ΦV = 41.9 ... 65.8 lm, 3500 K (IF = 100 mA) Q65113A5721 Full production
KW DDLM32.EH-HUJT-A737-K1M2 ΦV = 41.9 ... 65.8 lm, 3000 K (IF = 100 mA) Q65113A5720 Full production
