OSRAM TOPLED™ E3014, LUW JLSH

Discontinued

Description

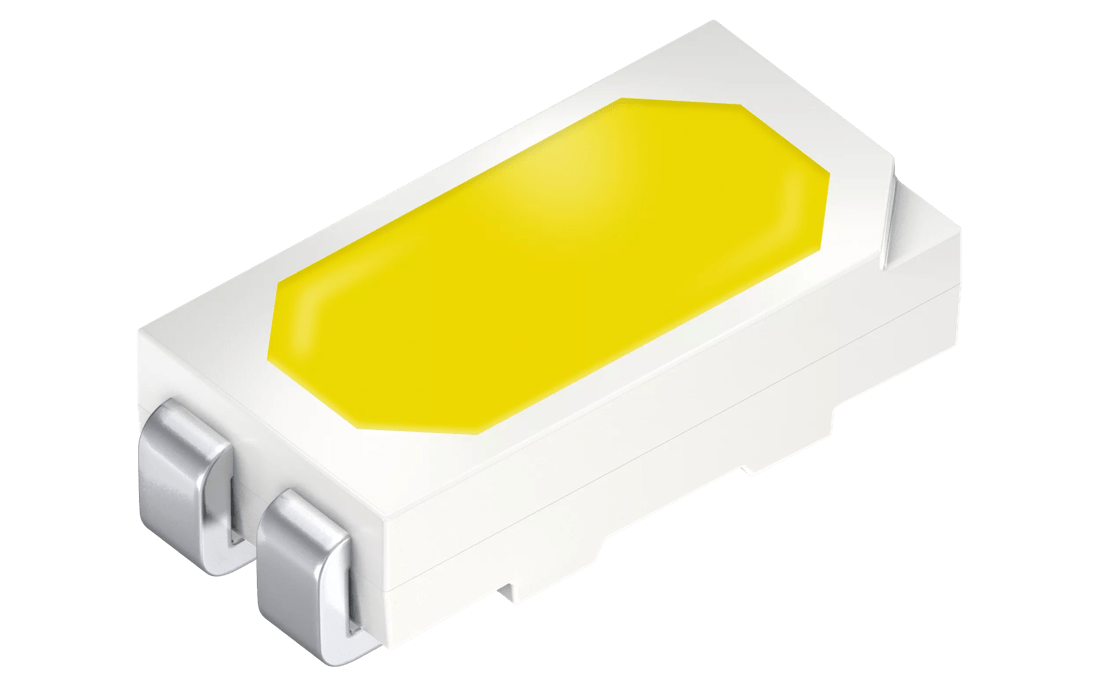

The TOPLED Compact 3014 has a wide beam angle with a compact format (3.0 mm x 1.4 mm) and is one of the smallest LED for screen backlighting. It is therefore ideal for injecting in light guides for homogeneous illumination applications where the TOPLED Compact 3014 never fails to impress with its performance on system level.

Contact us Support

Replacement Products

OSRAM TOPLED™ E3014, LUW JLSH.01

The TOPLED Compact 3014 has a wide beam angle with a compact format (3.0 mm x 1.4 mm) and is a very small LED for screen backlighting. It is therefore ideal for injecting in light guides for homogeneous illumination applications where the TOPLED Compact 3014 never fails to impress with its performance on system level.

Details and Datasheet

Details

Parameters

Color of emission

White

Electrical power

0.061 W

Low

Brightness

Φ_V

6.63 lm

I_V

2.3 cd

Φ_E

22.6 mW

I_E

7.85 mW/sr

Beam angle

∢

110 °

Operating temperature

T_op min.

-40 °C

T_op max.

85 °C

Dimension

l

3.0 mm

w

1.4 mm

h

0.8 mm

Application fields

Industrial Robotics Home & building automation Material processing Projection & display Factory automation Appliances & tools Access control & security

Automotive & mobility Display backlighting Intelligent signal displays

Ordering information

Product Type	Description	Ordering code	Availability
LUW JLSH-5B8B-I4Q7-EG-LP	I_v = 1800 ... 2800 mcd (I_F = 20 mA)	Q65111A1048	Discontinued
