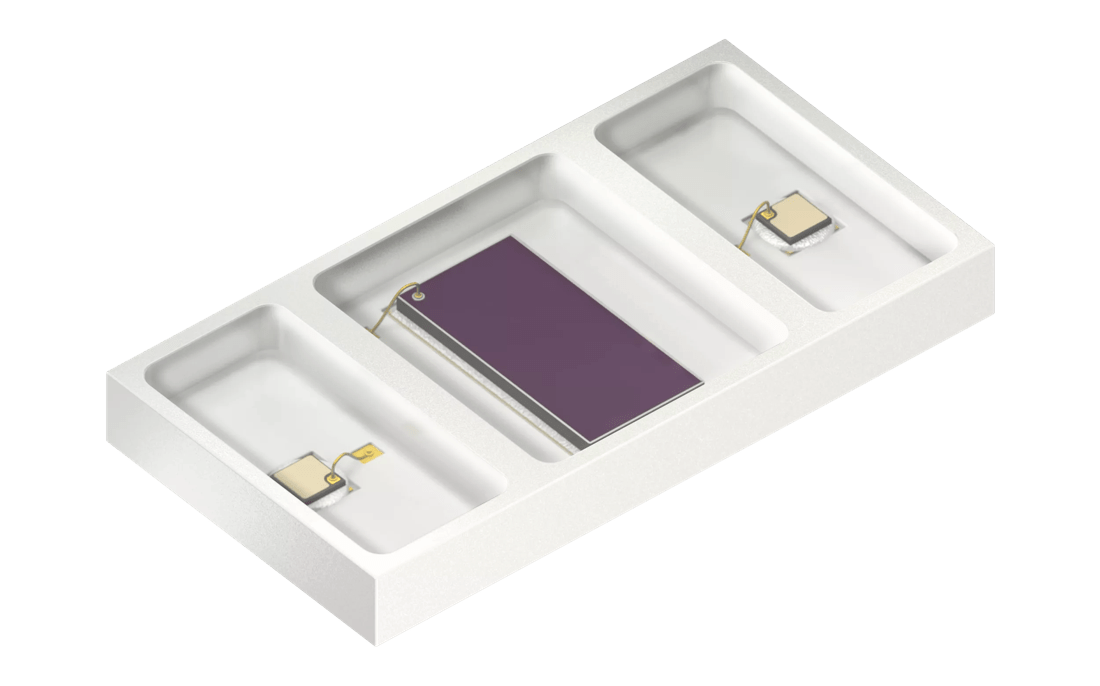

OSRAM BIOFY®, SFH 7070

Details

Parameters

Color of emission
True Green (513-545 nm)
Spectral range of sensitivity typ.
λ10% min.
694 nm
λ10% max.
402 nm
Radiant sensitive area
A
3.46 mm²
Dimension
l
7.5 mm
w
3.9 mm
h
0.9 mm
Operating temperature
Top min.
-40 °C
Top max.
85 °C

Ordering codes

Product Type Description Order No. Availability
SFH 7070 Ie = Ie = 3.80 mW/sr typ. (IF□=□20□mA) (single emitter)
Ie = Ip = 0.985 µA typ. (Ee = 0.1 mW/cm², λ = 530 nm)
Q65111A9887

Downloads

For related software/further documents visit our Download center

Datasheets

SFH 7070

Datasheet
