Details
Parameters
Photocurrent
1.4
µA
Fall time
tf
0.095
µs
Rise time
tf
0.095
µs
Spectral range of sensitivity typ.
λ10%
min.
400
nm
λ10%
max.
1100
nm
Radiant sensitive area
A
3.27
mm²
Beam angle
∢
130
°
Dimension
l
3.2
mm
w
2.0
mm
h
0.6
mm
Operating temperature
Top
min.
-40
°C
Top
max.
85
°C
Application fields
Downloads
For other documents visit our
Download center
Datasheets
SFH 2706
Datasheet
Application note
Customer complaint management — Details on return shipments for failure analysis request (FAR)
General information
Dry pack information
Handling recommendations
Fundamentals of LED handling
Handling recommendations
Manual lead-free soldering of LEDs
Soldering and processing
Measuring of the temperature profile during the reflow solder process
Soldering and processing
Processing of SMD LEDs
Soldering and processing
Recommended pick-and-place tools of LEDs
Soldering and processing
PCB technologies for LED applications
Thermal management
Determination of resistances for brightness compensation
Electrical design
Images

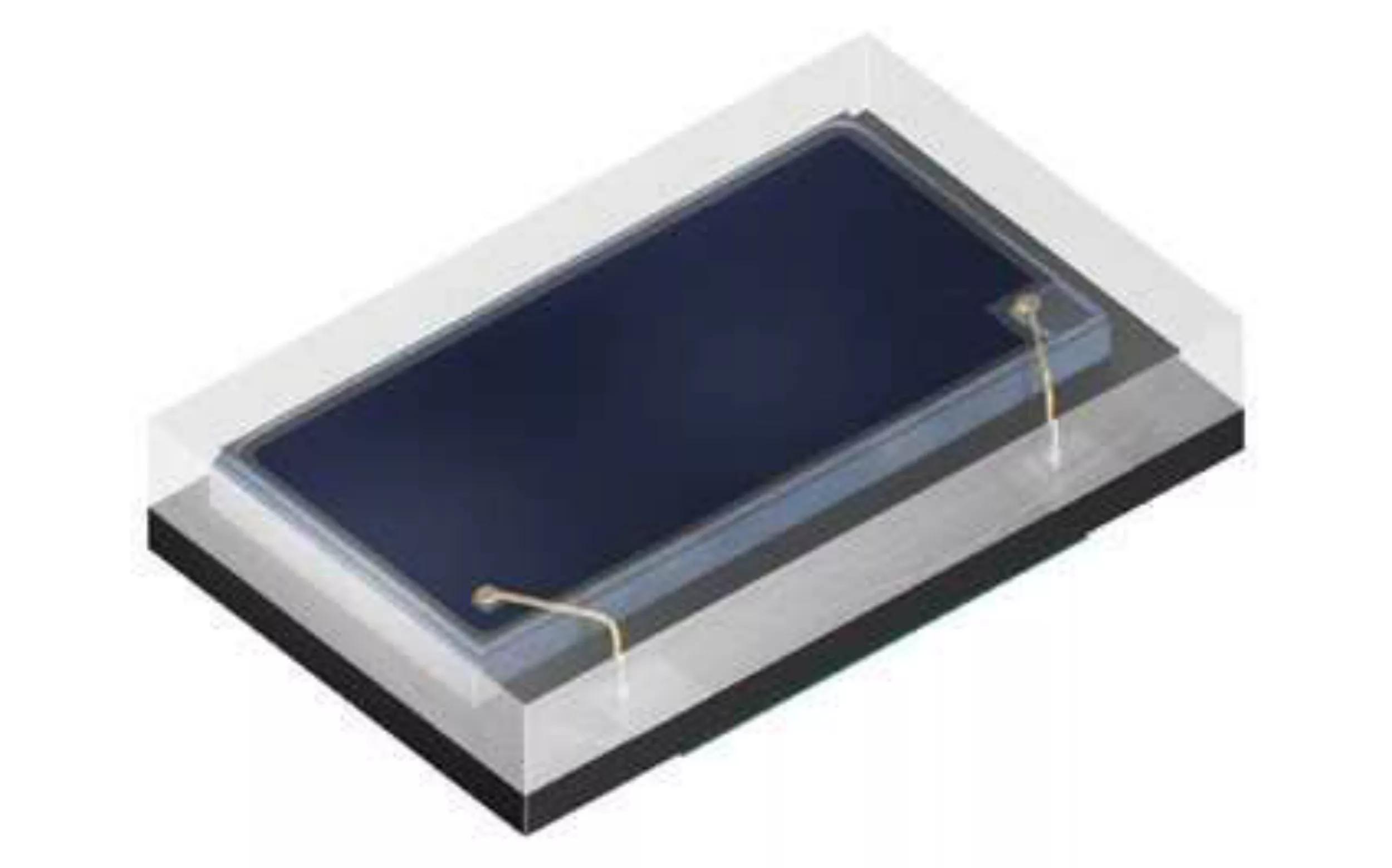

SFH 2703_picture
