Details
Parameters
Photocurrent
0.95
µA
Fall time
tf
0.031
µs
Rise time
tf
0.022
µs
Spectral range of sensitivity typ.
λ10%
min.
400
nm
λ10%
max.
660
nm
Radiant sensitive area
A
3.27
mm²
Beam angle
∢
126
°
Dimension
l
32.0
mm
w
2.0
mm
h
0.6
mm
Operating temperature
Top
min.
-40
°C
Top
max.
85
°C
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|

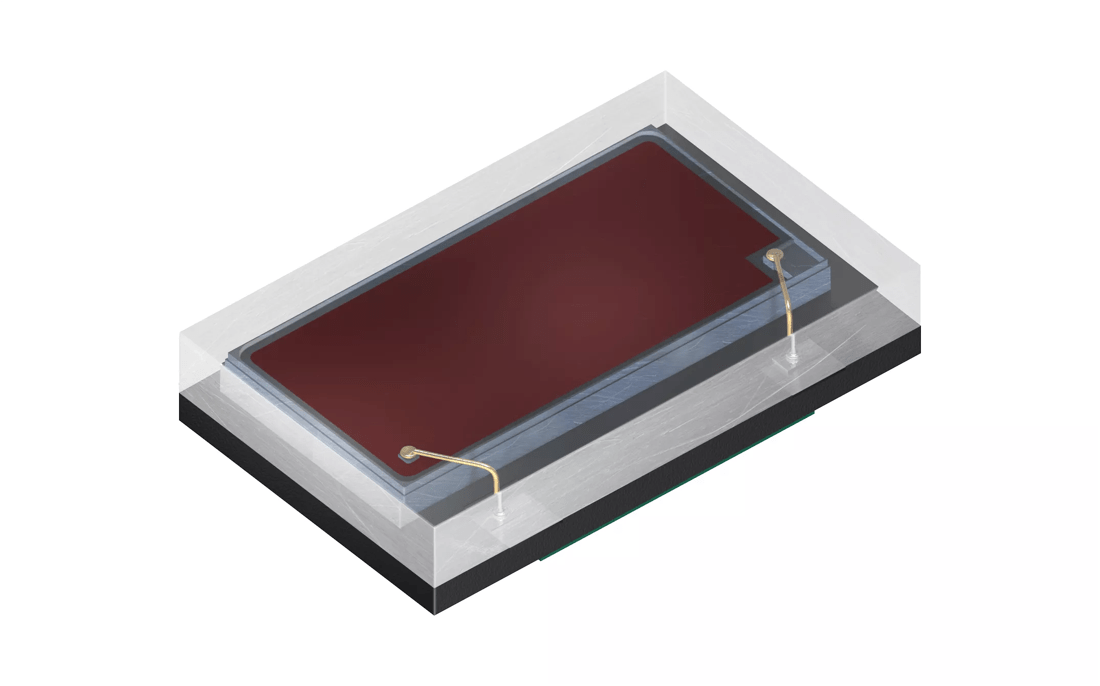

| SFH 2713 | IP = 0.95 µA ( typ.) (Ee=0.10 mW/cm²) | Q65112A8151 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
