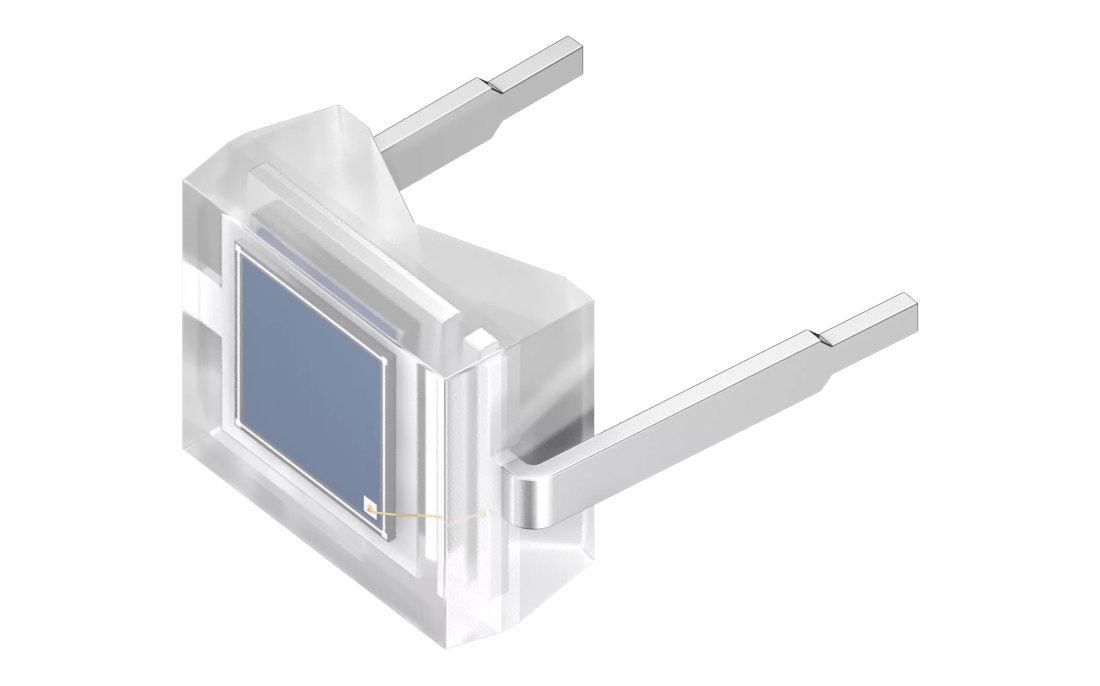

OSRAM DIL, BPW 34

OSRAM DIL, BPW 34
×

Description

Silicon PIN Photodiode
Datasheet
BPW 34
English
Download
Select & order
Contact us Support

Details

Parameters

Photocurrent
80.0 µA
Fall time
tf
0.02 µs
Rise time
tf
0.02 µs
Spectral range of sensitivity typ.
λ10% min.
420 nm
λ10% max.
1120 nm
Radiant sensitive area
A
7.02 mm²
Beam angle
∢
120 °
Dimension
l
5.15 mm
w
3.85 mm
h
2.05 mm
Operating temperature
Top min.
-40 °C
Top max.
100 °C

Ordering codes

Product Type Description Order No. Availability
BPW 34 IP = ≥ 55 µA, (IP=80 µA typ.) (Ev=1000 lx) Q62702P0073
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
