Details
Parameters
Photocurrent
9.4
µA
Fall time
tf
0.09
µs
Rise time
tf
0.09
µs
Spectral range of sensitivity typ.
λ10%
min.
400
nm
λ10%
max.
690
nm
Radiant sensitive area
A
7.02
mm²
Beam angle
∢
120
°
Dimension
l
6.45
mm
w
3.85
mm
h
1.15
mm
Operating temperature
Top
min.
-40
°C
Top
max.
100
°C
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|

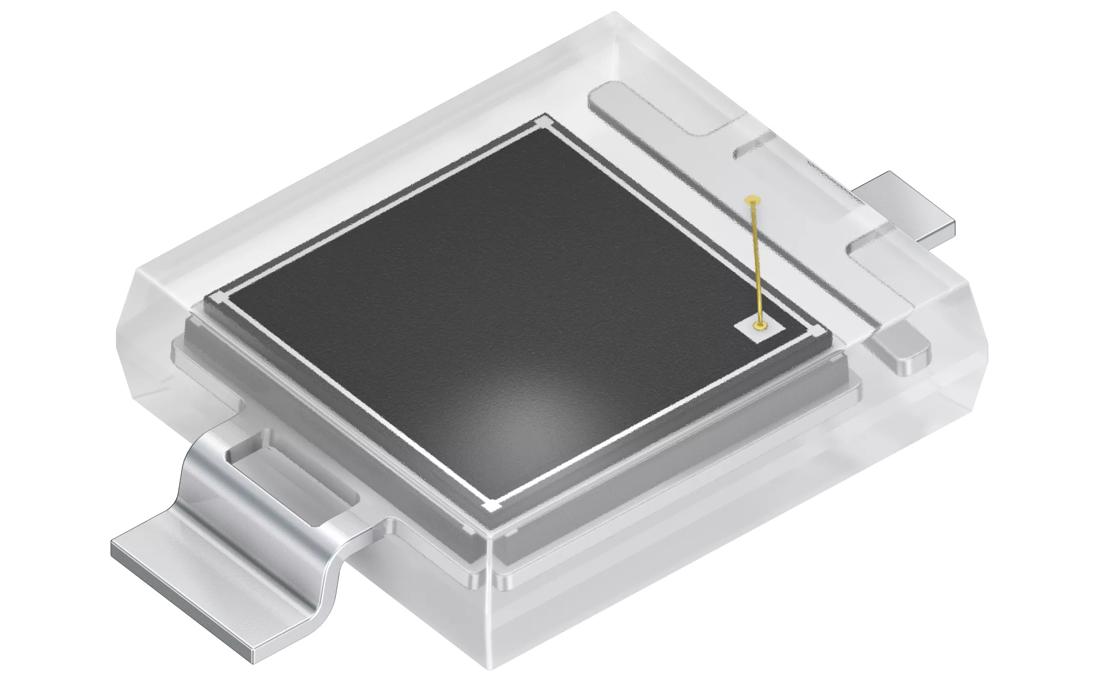

| SFH 2440 | IP = ≥ 7.20 µA, (IP=9.4 µA typ.) (Ev=1000 lx) | Q65111A8524 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
