Details
Parameters
Photocurrent
34.0
µA
Fall time
tf
0.02
µs
Rise time
tf
0.02
µs
Spectral range of sensitivity typ.
λ10%
min.
730
nm
λ10%
max.
1100
nm
Radiant sensitive area
A
4.84
mm²
Beam angle
∢
120
°
Dimension
l
6.45
mm
w
3.85
mm
h
1.15
mm
Operating temperature
Top
min.
-40
°C
Top
max.
100
°C
Application fields
Ordering codes
Product Type | Description | Order No. | Availability |
---|---|---|---|
BP 104 FASR-Z | IP = ≥ 25 µA, (IP=34 µA typ.) (Ee=1 mW/cm²) | Q65110A4263 |
Downloads
For software click here/for further documents visit our
download center
Datasheets
BP 104 FASR
Datasheet
Application note
Resources
CAD Data
CAD Data
Optical Simulation
Optical Simulation
Images

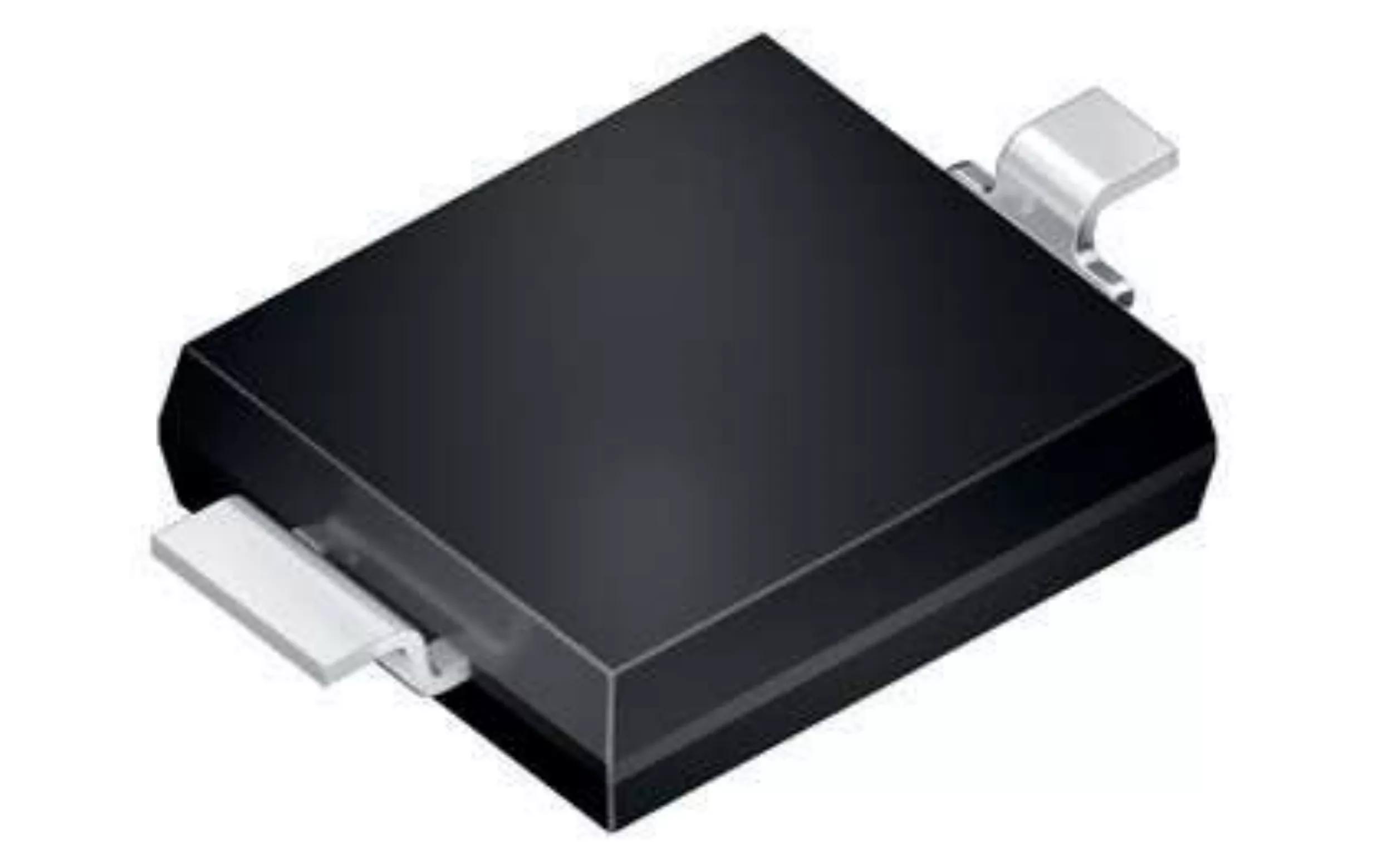

BP104FASR_photo
