Details
Parameters
Photocurrent
100.0
µA
Fall time
tf
0.025
µs
Rise time
tf
0.025
µs
Spectral range of sensitivity typ.
λ10%
min.
400
nm
λ10%
max.
1100
nm
Radiant sensitive area
A
10.0
mm²
Beam angle
∢
120
°
Dimension
l
8.35
mm
w
4.4
mm
h
1.15
mm
Operating temperature
Top
min.
-40
°C
Top
max.
80
°C
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|

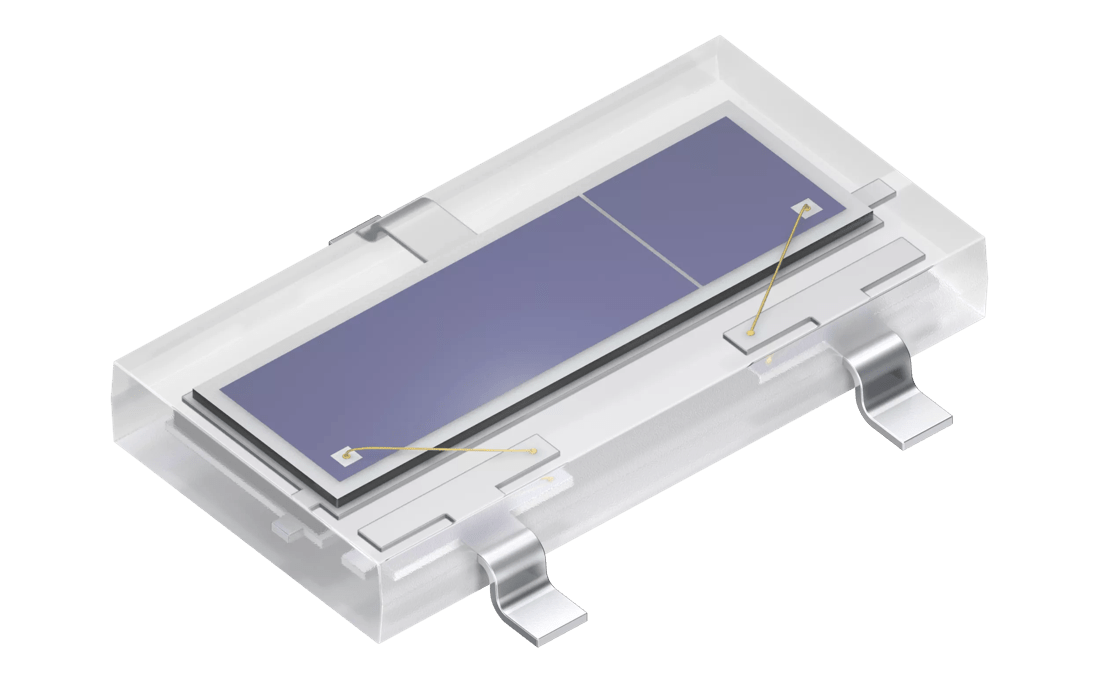

| KOM 2125-Z |
IP >= 30 µA, (IP = 40 µA typ.) (Ee=1000.00 lx) (Diode A) IP >= 75 µA, (IP = 100 µA typ.) (Ee=1000.00 lx) (Diode B) |
Q65110A2703 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
