Details
Parameters
Photocurrent
18.0
µA
Fall time
tf
1.5
µs
Rise time
tf
1.5
µs
Spectral range of sensitivity typ.
λ10%
min.
350
nm
λ10%
max.
820
nm
Radiant sensitive area
A
7.45
mm²
Beam angle
∢
110
°
Dimension
l
9.25
mm
w
9.25
mm
h
3.2
mm
Operating temperature
Top
min.
-40
°C
Top
max.
80
°C
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|

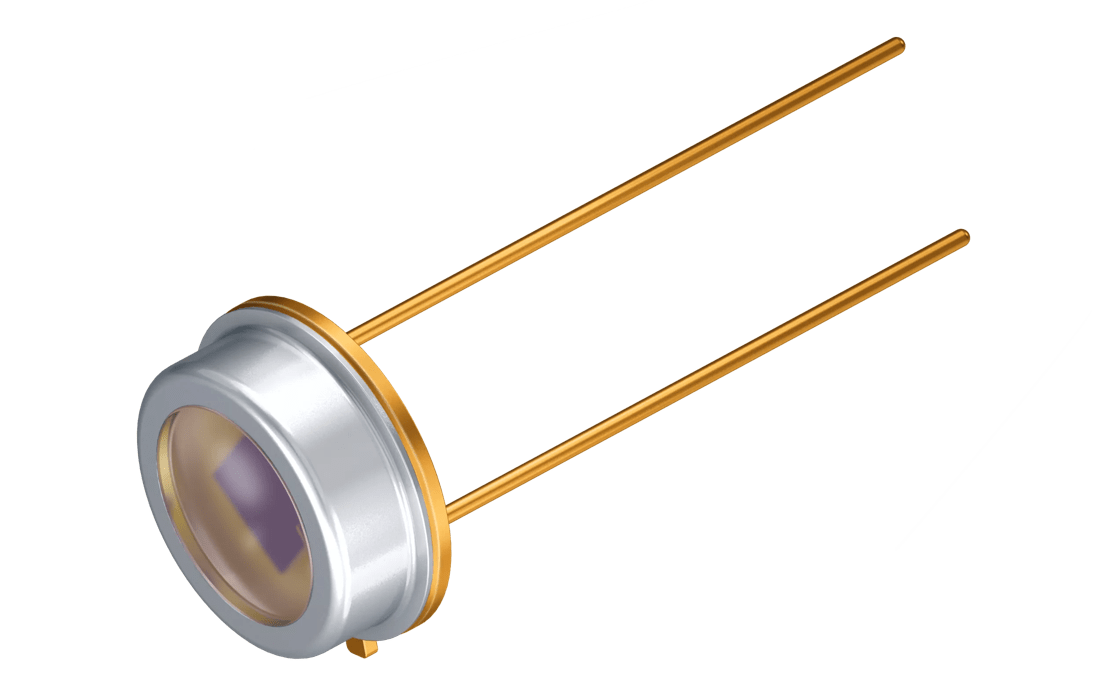

| BPW 21 | IP = ≥ 5.5 µA, (IP=10 µA typ.) (Ev=1000 lx) | Q62702P0885 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
