Details
Parameters
Photocurrent
80.0
µA
Fall time
tf
0.02
µs
Rise time
tf
0.02
µs
Spectral range of sensitivity typ.
λ10%
min.
420
nm
λ10%
max.
1120
nm
Radiant sensitive area
A
7.02
mm²
Beam angle
∢
120
°
Dimension
l
4.9
mm
w
3.9
mm
h
6.6
mm
Operating temperature
Top
min.
-40
°C
Top
max.
100
°C
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|

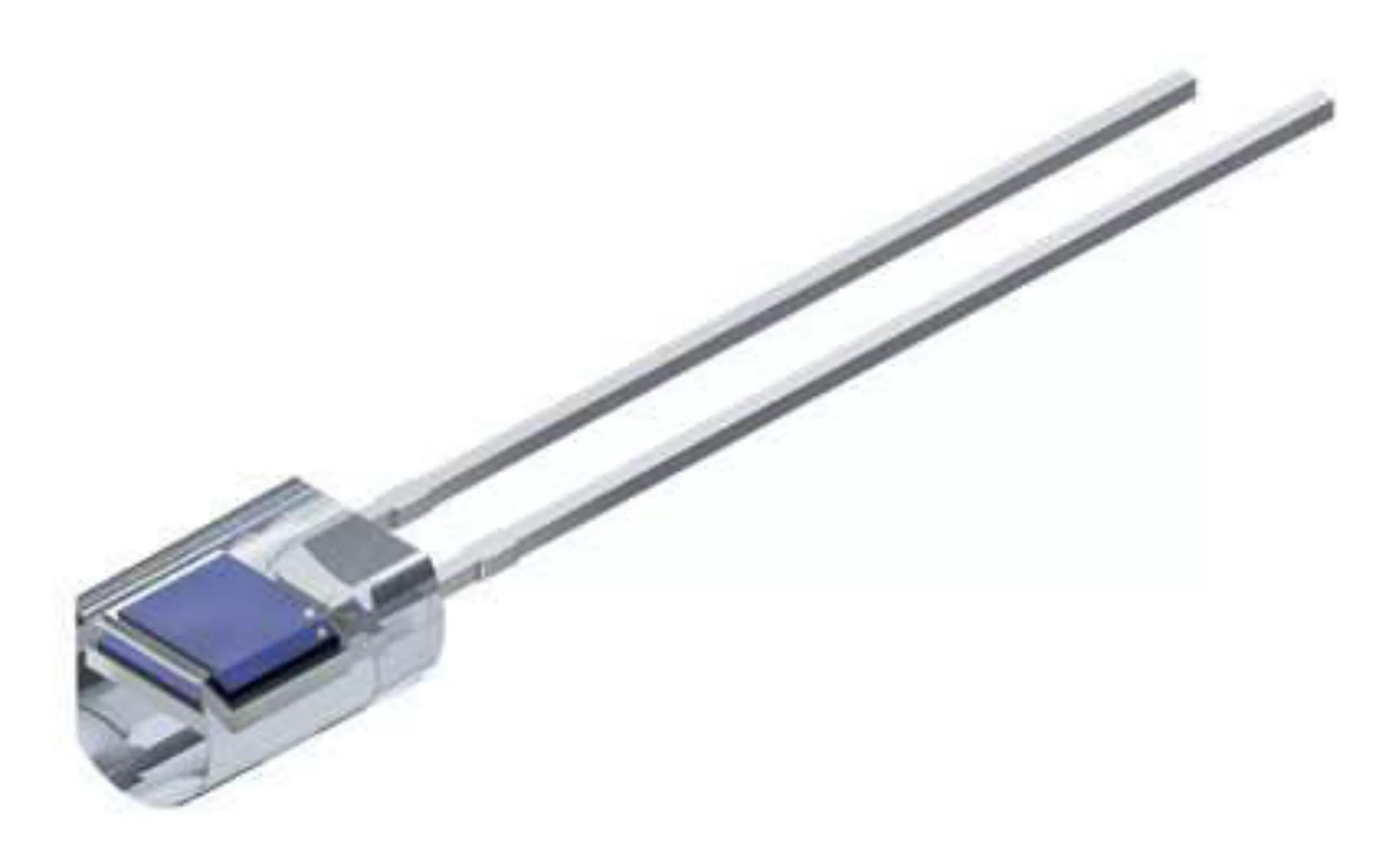

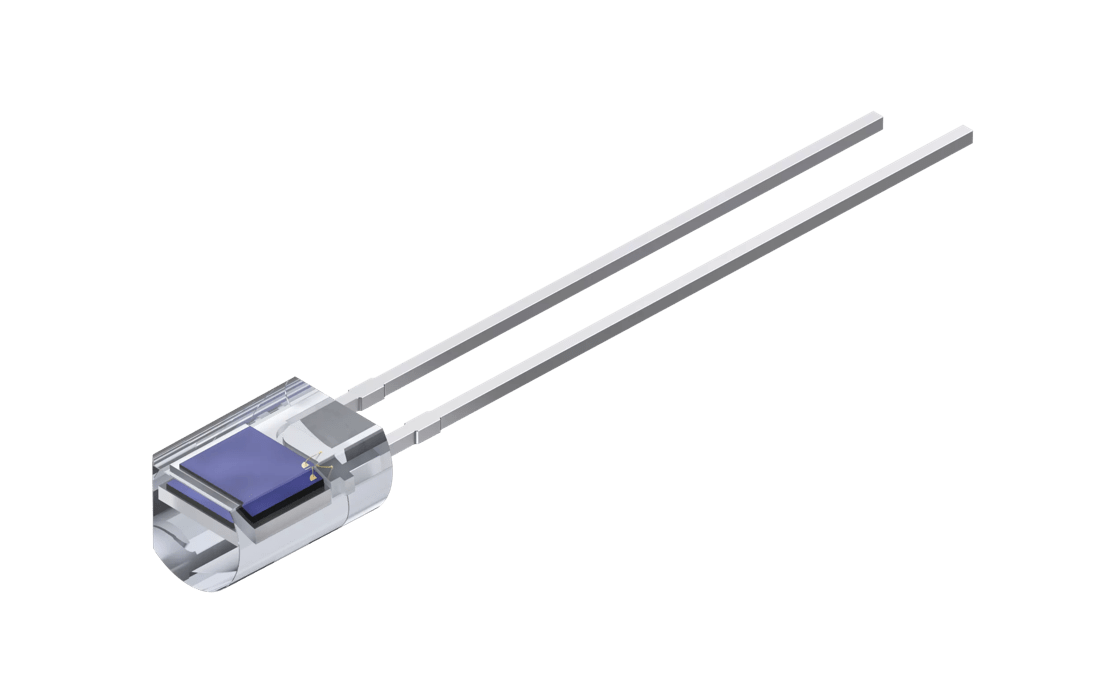

| SFH 206 K | IP = ≥ 55 µA, (IP=80 µA typ.) (Ev=1000 lx) | Q62702P0129 |
