Details
Parameters
Photocurrent
70.0
µA
Fall time
tf
0.005
µs
Rise time
tf
0.005
µs
Spectral range of sensitivity typ.
λ10%
min.
750
nm
λ10%
max.
1100
nm
Radiant sensitive area
A
1.0
mm²
Beam angle
∢
30
°
Dimension
l
7.4
mm
w
7.7
mm
h
4.6
mm
Operating temperature
Top
min.
-40
°C
Top
max.
85
°C
Application fields
Ordering codes
| Product Type | Description | Order No. | Availability |
|---|---|---|---|

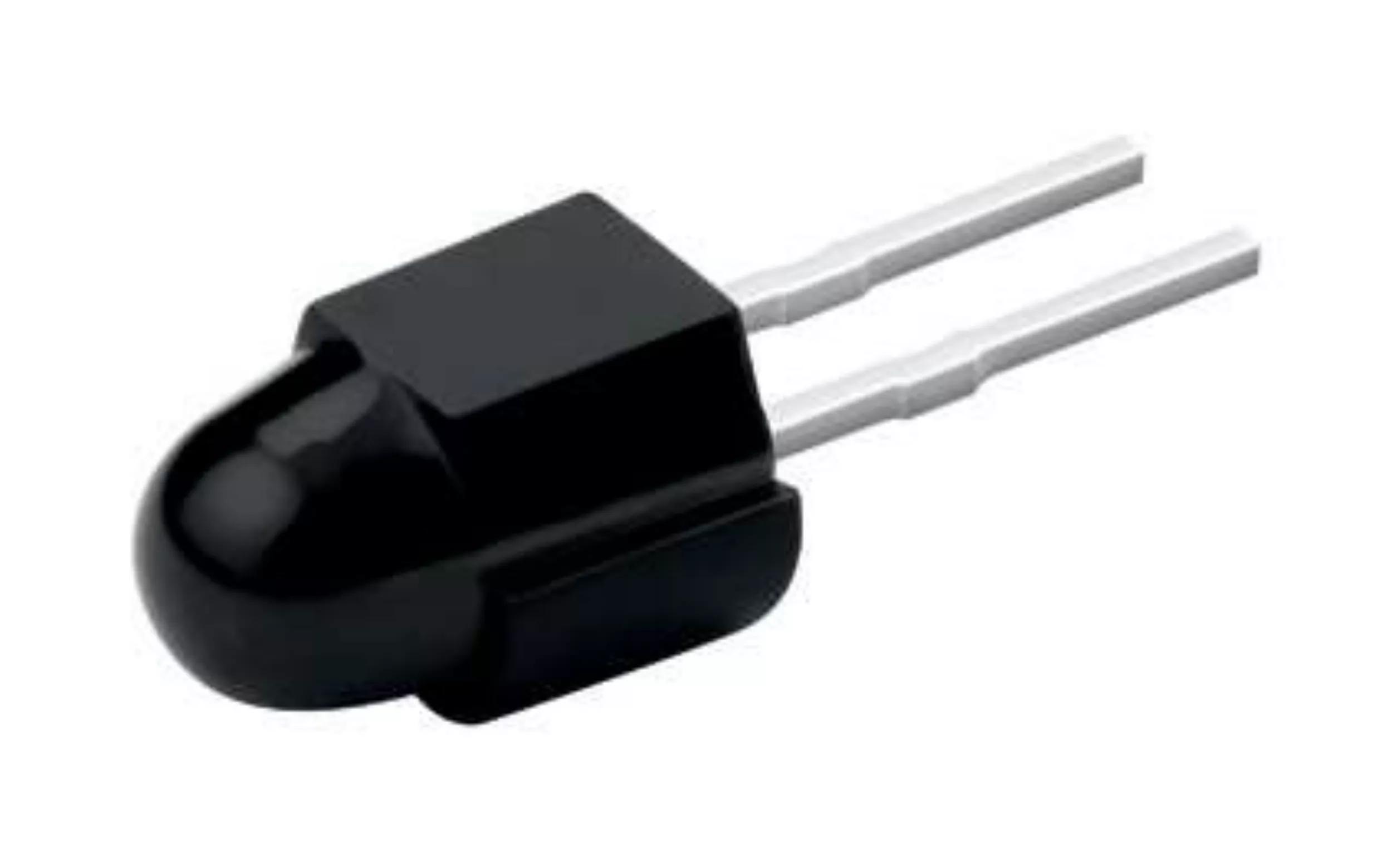

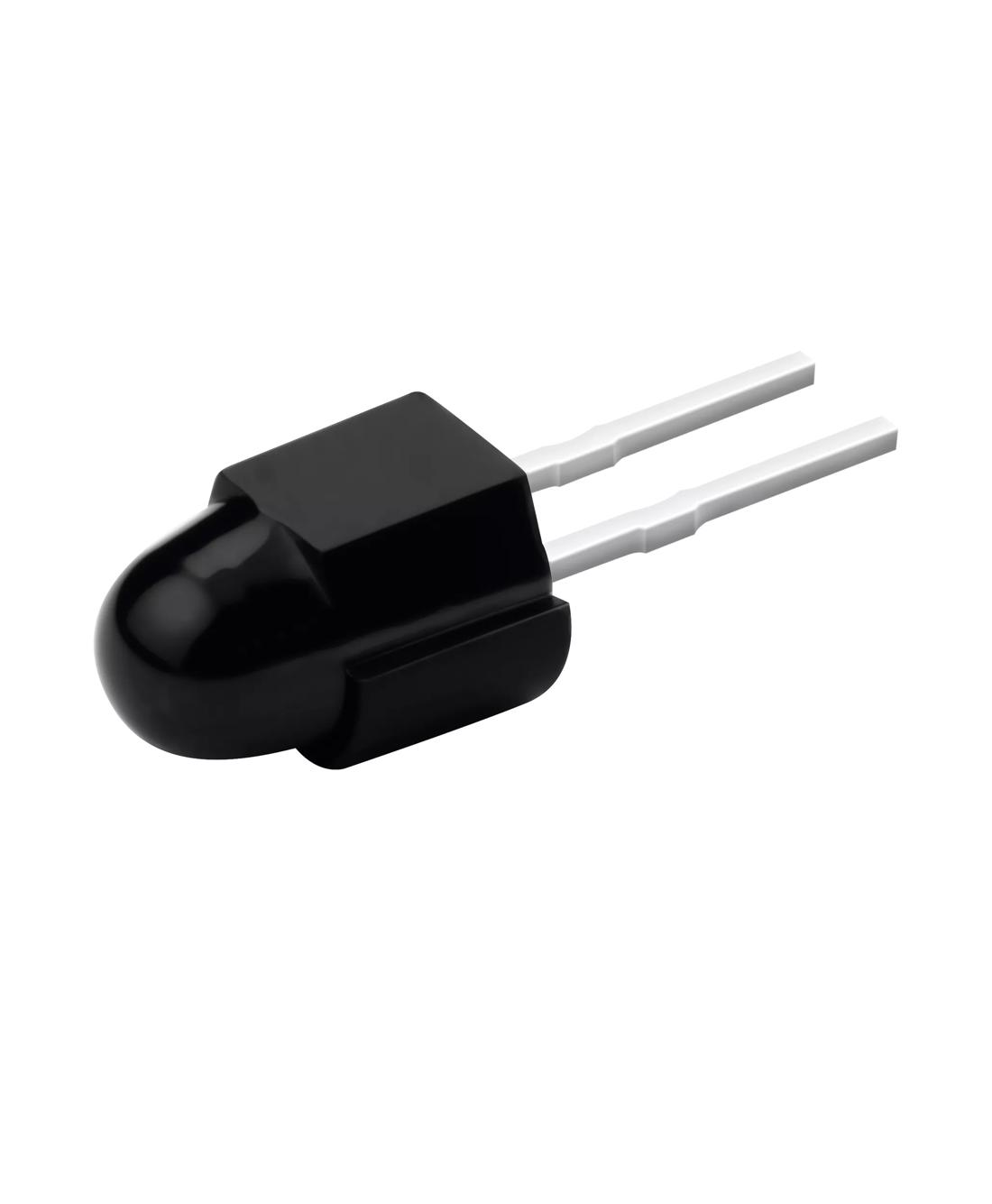

| SFH 2505 FA-Z | IP = ≥ 56 µA, (IP=70 µA typ.) (Ee=1 mW/cm²) | Q65110A1204 |
Status information
Full production
Pre-production
Not planned for new design
Ordering and shipping are still possible
Discontinued
