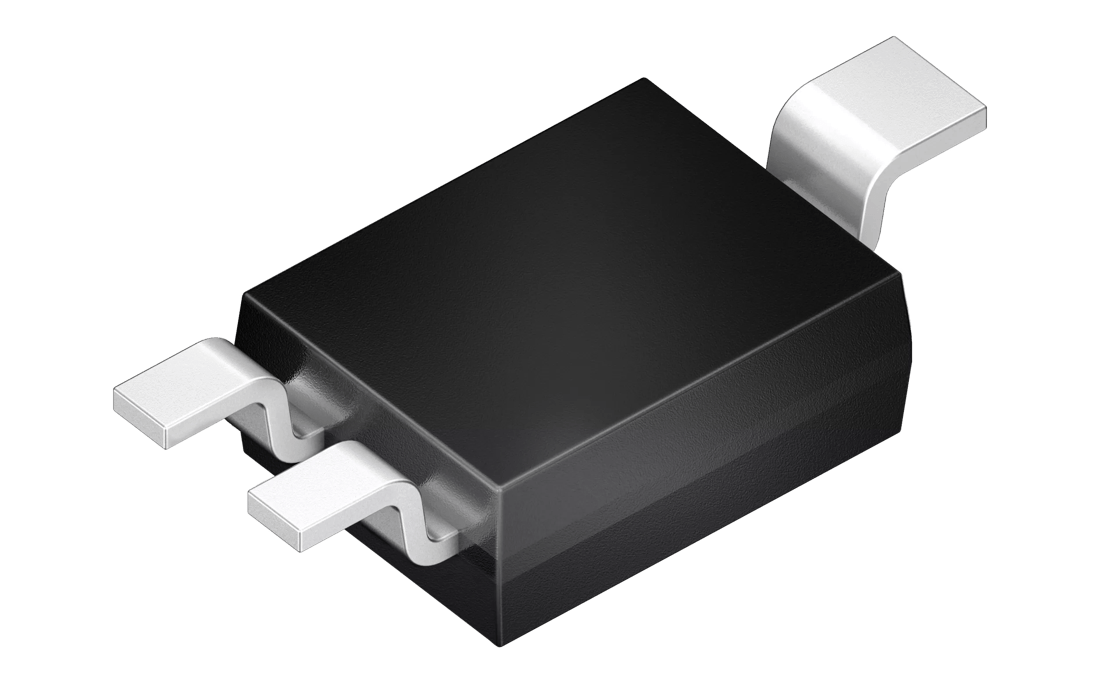

OSRAM Smart DIL, SFH 2400 FAR

Details

Parameters

Photocurrent
6.2 µA
Fall time
tf
0.005 µs
Rise time
tf
0.005 µs
Spectral range of sensitivity typ.
λ10% min.
750 nm
λ10% max.
1100 nm
Radiant sensitive area
A
1.0 mm²
Beam angle
120 °
Dimension
l
4.6 mm
w
2.0 mm
h
1.05 mm
Operating temperature
Top min.
-40 °C
Top max.
100 °C

Ordering codes

Product Type Description Order No. Availability
SFH 2400 FAR IP = ≥ 3.6 µA, (IP=6.2 µA typ.) (Ee=1 mW/cm²) Q65110A9563
